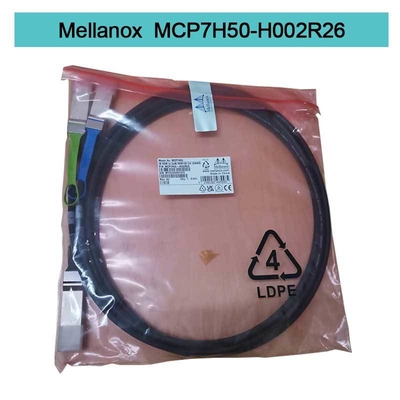

MCP7H50-H002R26 Mellanox Infiniband Cable 200Gb/S To 2x100Gb/S 2.0m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP7H50-H002R26 |
| Document: | MCP7H50-H002R26.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 2 Meters |
| Name: | Mellanox DAC Cable MCP7H50-H002R26 200Gb/s To 2x100Gb/s 2.0m 26AWG Infiniband Network Cable | Keyword: | Mellanox DAC Cable |
| Highlight: | MCP7H50-H002R26 Mellanox Infiniband Cable,2.0m Mellanox Infiniband Cable,MCP7H50-H002R26 Mellanox Dac Cable |
||
Product Description

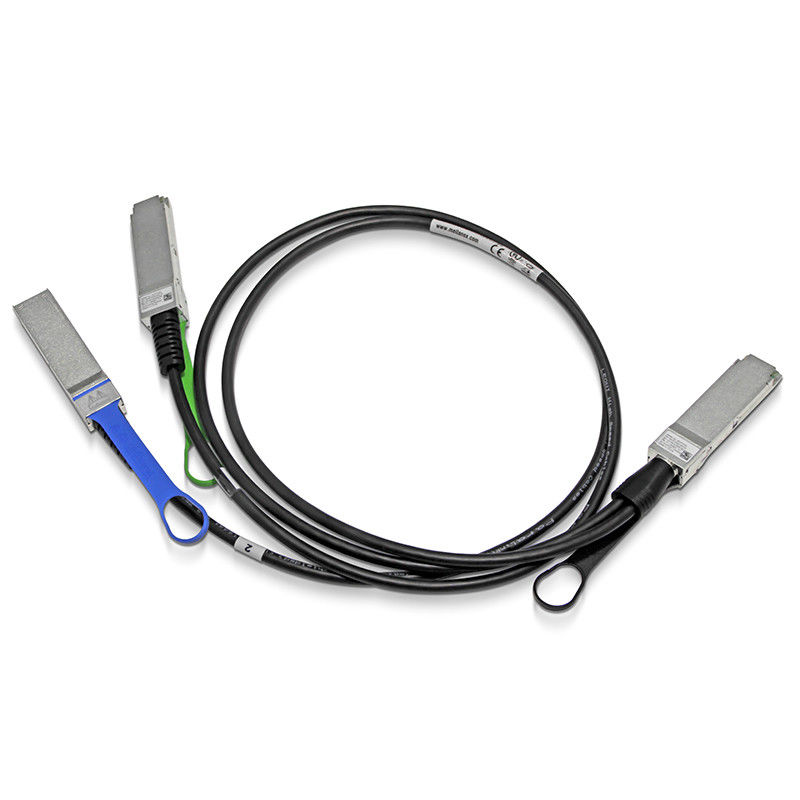

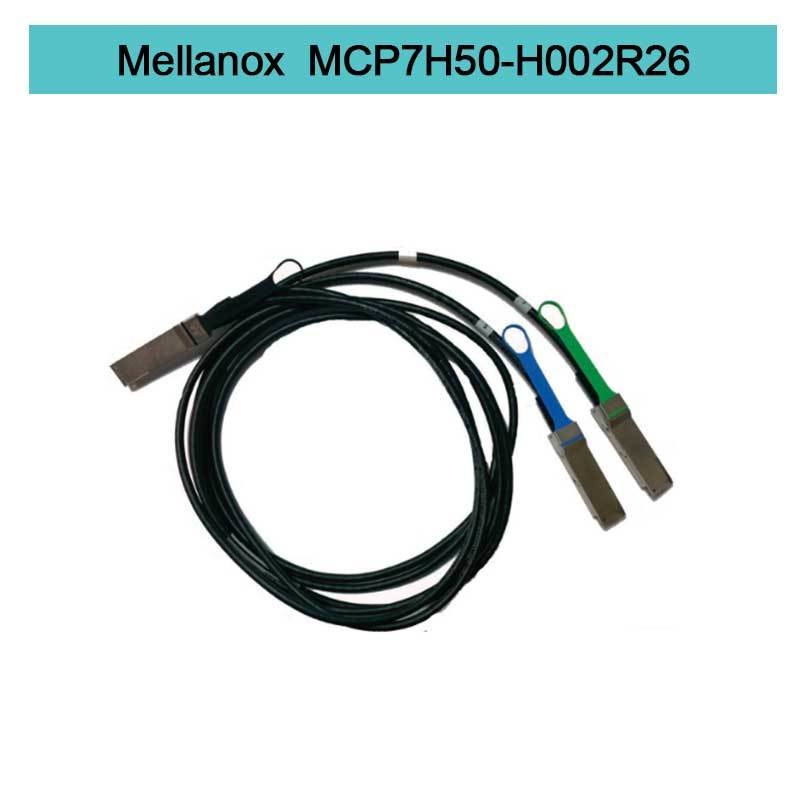

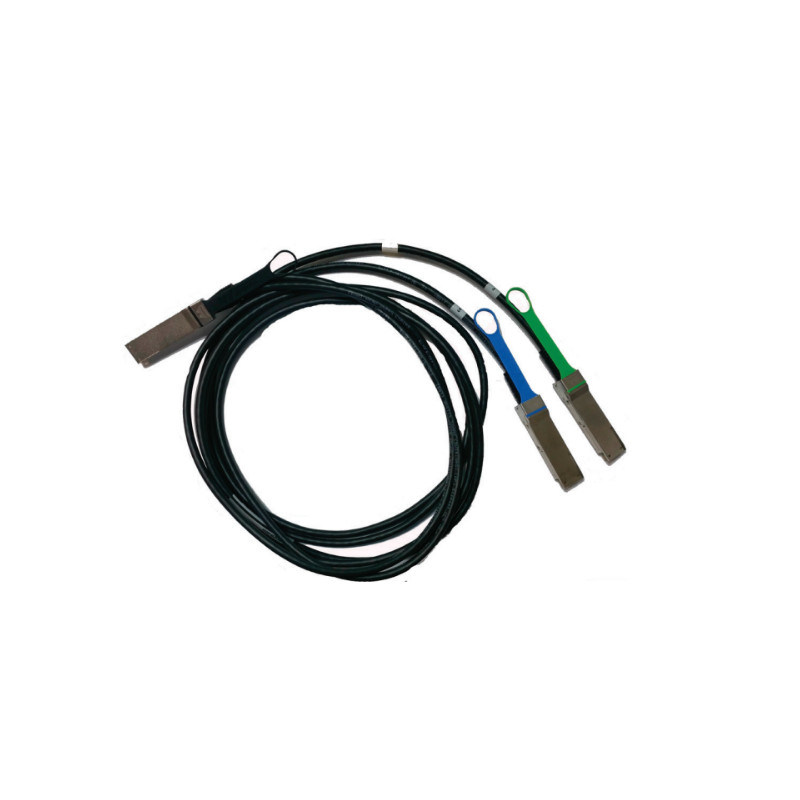

Mellanox MCP7H50-H002R26 HDR to 2x HDR100 Direct Attach Copper Splitter Cable
1. Product Overview
The Mellanox MCP7H50-H002R26 is a high-performance, passive copper Direct Attach Cable (DAC) designed for 200Gb/s InfiniBand HDR systems. It splits a single 200Gb/s HDR port into two independent 100Gb/s HDR100 ports, providing a cost-effective and power-efficient solution for high-density data center interconnects. This passive fiber cable alternative ensures reliable, high-speed data transmission with minimal latency.
2. Key Characteristics
- 200Gb/s HDR to 2x100Gb/s HDR100 bidirectional data rate
- 4x50Gb/s PAM4 modulation per port
- Low power consumption (<0.1W)
- Hot-pluggable, RoHS compliant, LSZH jacket
- Lead-free and halogen-free PCB design
- 2-meter length with 26AWG wire gauge
3. Technology & Standards
Compliant with InfiniBand HDR standards, SFF-8665, and SFF-8636 for I²C management. Supports PAM4 modulation for enhanced data integrity and bandwidth efficiency.
4. Working Principle
The cable passively routes electrical signals from one QSFP56 connector (200G HDR) to two QSFP56 connectors (100G HDR100). Each pair of copper conductors transmits high-speed data with minimal signal degradation, leveraging impedance-matched traces and robust shielding.
5. Applications
Ideal for hyperscale data centers, high-performance computing (HPC), artificial intelligence clusters, and storage area networks (SANs). Enables flexible topology design and efficient bandwidth utilization.
6. Specifications
| Parameter | Value |
|---|---|
| Model | MCP7H50-H002R26 |
| Data Rate | 200G HDR to 2x100G HDR100 |
| Length | 2m ±0.05m |
| Connectors | QSFP56 to 2x QSFP56 |
| Power Consumption | <0.1W |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Lower latency and power consumption compared to active optical cables
- Superior signal integrity with impedance-controlled design
- Robust mechanical construction with LSZH jacket for safety
- Backward compatible with previous InfiniBand generations
8. Service & Support
1-year limited warranty. Global technical support and integration services available. Lead time typically 2–4 weeks.
9. Frequently Asked Questions
Q: Is this cable compatible with Mellanox switches?
A: Yes, it is fully compatible with Mellanox InfiniBand HDR systems.
Q: What is the maximum bend radius?
A: 34mm for single bend, 68mm for repeated bends.
Q: Does it support hot-plugging?
A: Yes, the cable is hot-pluggable.
10. Precautions
- Avoid bending beyond specified radii to prevent damage.
- Ensure compatible host hardware and firmware.
- Operate within specified temperature and humidity ranges.
- Follow ESD safety procedures during handling.
