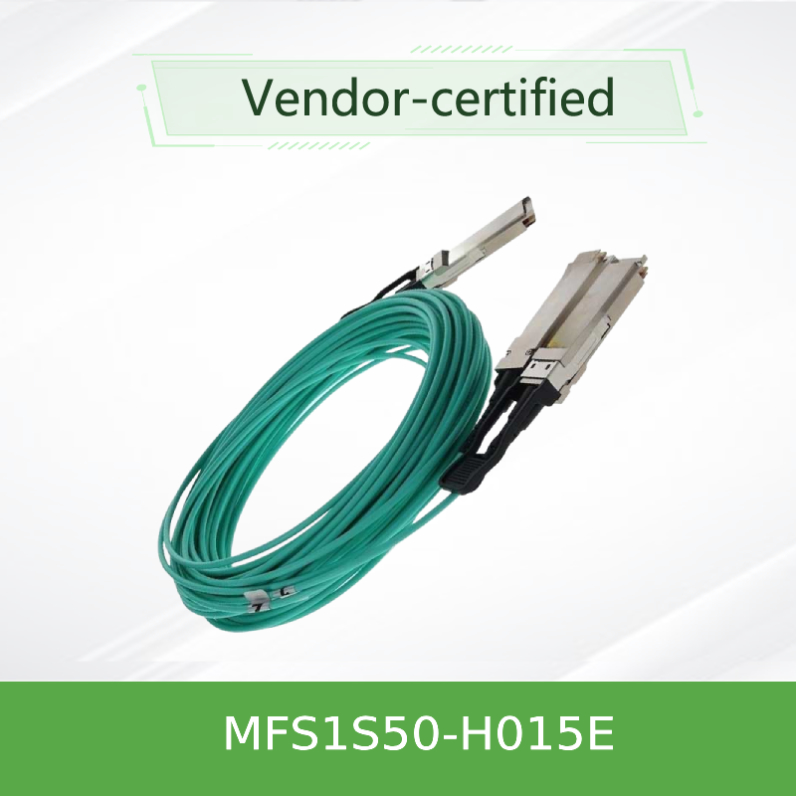

NVIDIA MFS1S50-H015E 200G to 2x100G QSFP56 Active Optical Splitter Cable

1. Product Overview

The NVIDIA® MFS1S50-H015E is a high-performance, low-latency Active Optical Cable (AOC) designed to bridge 200Gb/s and dual 100Gb/s infrastructures. This QSFP56 to 2x QSFP56 optical fiber cable splitter efficiently converts a single 200G port into two independent 100G channels, ideal for connecting high-speed switches to multiple servers. Engineered for data centers requiring maximum bandwidth and minimal delay, this passive fiber cable alternative offers active signal integrity over multimode fiber (MMF) for distances up to 30 meters.

2. Key Characteristics

• Supports 200Gb/s InfiniBand HDR and 200GbE Ethernet protocols
• Converts one 200G QSFP56 port to two 100G QSFP56 ports
• 4x50G PAM4 modulation per direction for high bandwidth efficiency
• Low power consumption: 4.5W (200G end), 3.0W (100G end)
• Hot-pluggable, RoHS compliant, and compliant with SFF-8665
• Digital Diagnostic Monitoring (DDM) for real-time performance tracking

3. Technology & Standards

This optical fiber cable complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (I²C management), and IBTA InfiniBand HDR. It uses VCSEL-based optical technology and PAM4 signaling to achieve high data rates with low power. The integrated EEPROM supports vendor-specific monitoring and configuration, making it a reliable passive fiber cable upgrade for active optical applications.

4. Working Principle

The AOC operates by converting electrical signals from the host system into optical signals using VCSEL transmitters. The optical fiber cable carries these signals over multimode fiber strands. On the 200G end, four lanes of 50G PAM4 are aggregated; on the dual 100G ends, each port handles two lanes. Signal integrity is maintained through programmable equalization, pre-emphasis, and clock data recovery (CDR) features, ensuring robust performance in demanding environments.

5. Applications

• Data center spine-leaf architecture
• High-performance computing (HPC) clusters
• Cloud infrastructure and enterprise networking
• AI and machine learning training networks
• Financial trading and low-latency applications

6. Specifications & Selection Guide

7. Advantages & Selling Points

• Low Latency: Optimized for high-frequency trading and real-time data processing.
• Cost-Effective: Eliminates the need for additional switches or transceivers.
• Reliable: Rigorously tested for durability and performance consistency.
• Eco-Friendly: Lower power consumption compared to copper alternatives.
• Future-Proof: Compatible with evolving 200G and 100G standards.

8. Service & Support

We provide 24/7 customer consultation and technical support. All products come with a standard warranty and are shipped with protective caps to ensure optimal condition. Bulk orders are welcome, with flexible delivery options available.

9. Frequently Asked Questions

Q: What is the maximum distance supported?
A: This optical fiber cable supports lengths up to 30 meters over multimode fiber.

Q: Is the cable hot-pluggable?
A: Yes, the AOC supports hot-plugging for easy installation and maintenance.

Q: Does it work with 200GbE and InfiniBand HDR?
A: Yes, it is compatible with both 200GbE and InfiniBand HDR protocols.

Q: Can I use this as a passive fiber cable replacement?
A: Yes, it serves as an active alternative to passive fiber cable solutions with enhanced signal integrity.

10. Precautions

• Avoid bending the cable beyond a 30mm radius.
• Ensure connectors are clean before insertion to prevent damage.
• Operate within the specified temperature range (0°C to 70°C).
• Follow ESD precautions during handling and installation.
• Verify compatibility with host system QSFP56 cages.
