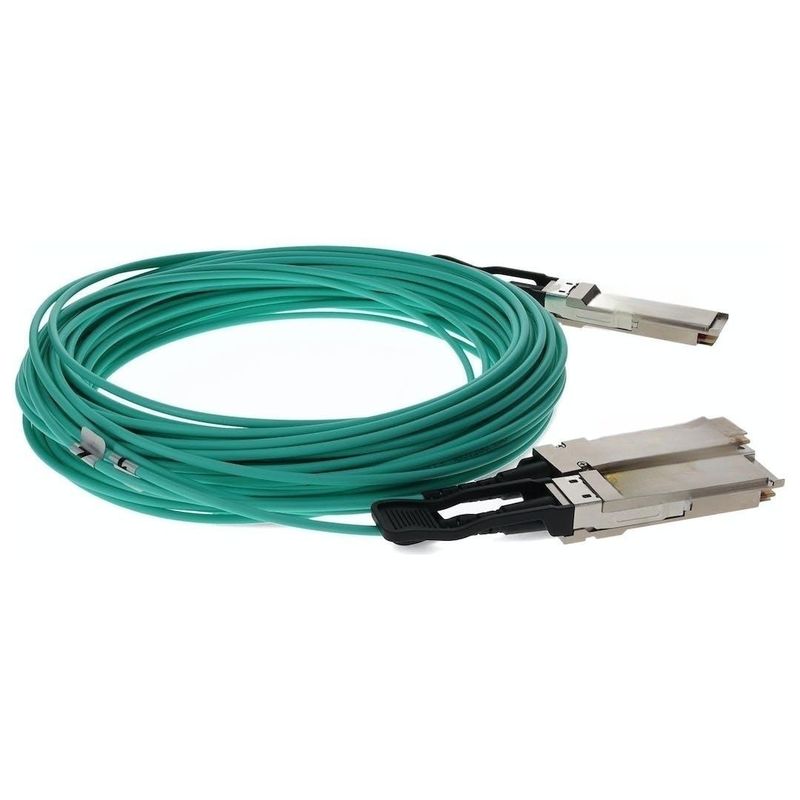

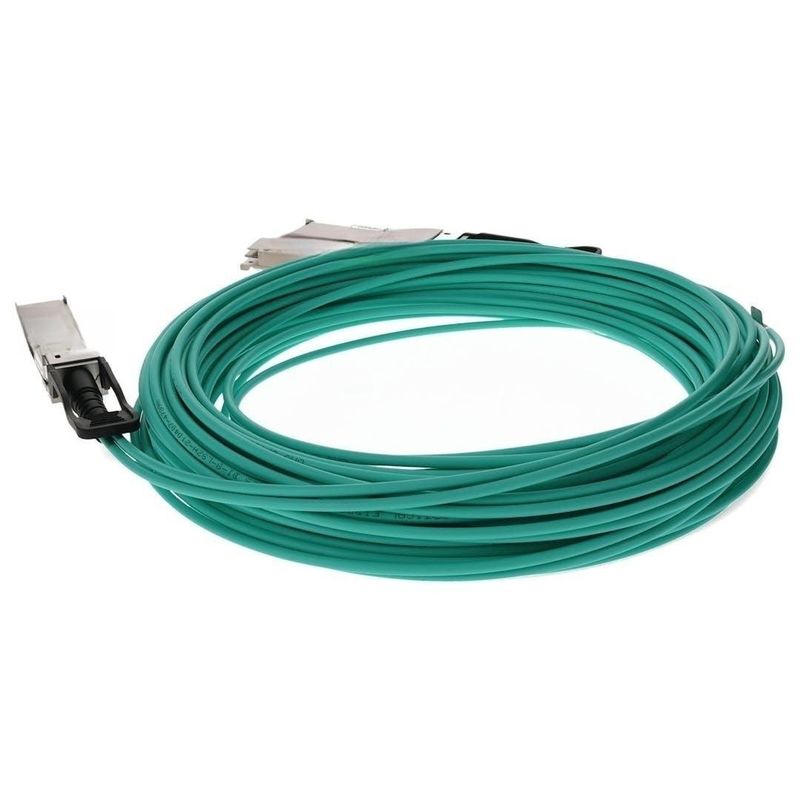

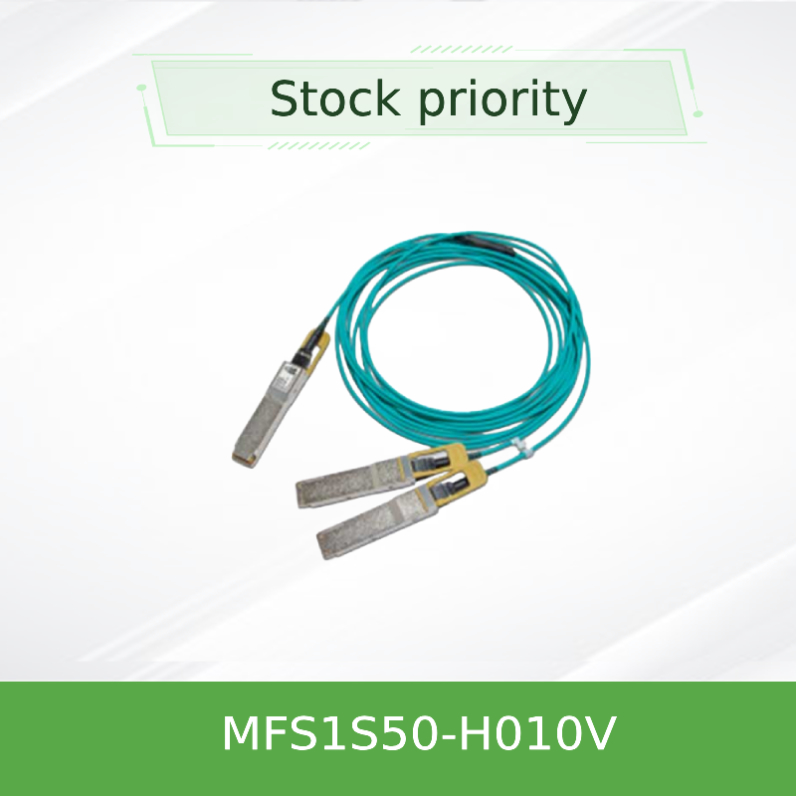

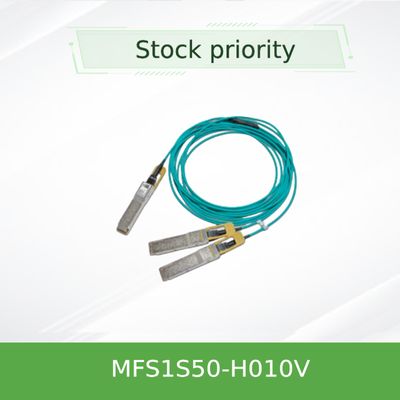

MFS1S50-H010V Mellanox AOC 200Gb/S To 2x100Gb/S IB HDR QSFP56 To 2xQSFP56 10m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S50-H010V |
| Document: | MFS1S50-H0xxV.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S50-H010V | Name: | MFS1S50-H010V Mellanox Active Optical Cable 200Gb/s To 2x100Gb/s IB HDR QSFP56 To 2xQSFP56 10m |
| Key Word: | Mellanox AOC Cable | ||
| Highlight: | Mellanox Qsfp 200g Aoc10m,MFS1S50-H010V Mellanox AOC,Mellanox AOC 10m |
||
Product Description
MFS1S50-H010V 200Gb/s QSFP56 to 2x100Gb/s Active Optical Splitter Cable
1. MFS1S50-H010V Product Overview
The NVIDIA® MFS1S50-H010V is a high-performance, cost-effective Active Optical Cable (AOC) designed for 200Gb/s InfiniBand HDR and 200GbE systems. This low-latency fiber optic cable splits a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 connections, ideal for high-density data center deployments. It enables flexible connectivity between switches and servers with reliable performance and minimal power consumption.
2. MFS1S50-H010V Key Characteristics
- Supports 200Gb/s IB HDR and 200GbE to 2x100Gb/s HDR100/100GbE
- Low-latency multi-mode fiber (MMF) AOC with 10-meter reach
- Hot-pluggable, RoHS compliant, and SFF-8665 compliant
- Digital Diagnostic Monitoring (DDM) for real-time performance tracking
- Programmable Rx output amplitude and pre-emphasis
3. Technology & Standards
The cable complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (I²C management), and InfiniBand HDR. It uses VCSEL-based optical technology and PAM4 modulation to achieve high data rates with low power consumption.
4. Working Principle
The AOC converts electrical signals into optical signals using integrated VCSEL transceivers. The 200Gb/s end splits the signal into two 100Gb/s streams, each transmitted over separate fiber pairs. Each end includes an EEPROM for identification and status monitoring via the host system.
5. Applications
Ideal for high-performance computing (HPC), cloud data centers, enterprise networks, and storage area networks (SANs). Commonly used in spine-leaf architectures, AI clusters, and high-frequency trading environments where low latency and high bandwidth are critical.
6. MFS1S50-H010V Specifications
| Parameter | Value |
|---|---|
| Data Rate | 200G to 2x100G |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 10m |
| Power Consumption | 4.5W (200G end), 3.0W (100G end) |
| Fiber Type | Multi-Mode Fiber (MMF) |
7. Advantages
- Lower latency compared to passive DAC cables
- Higher bandwidth density and flexibility
- Better signal integrity over longer distances
- Integrated diagnostics and monitoring
- Compatible with major switch and server platforms
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty. Our professional team provides pre-sales consultation and post-sales service to ensure seamless integration and operation.
9. Frequently Asked Questions
Q: Is this AOC compatible with 100GbE switches?
A: Yes, it supports both InfiniBand HDR and Ethernet protocols.
Q: What is the maximum operating temperature?
A: 0°C to 70°C case temperature.
Q: Does it support digital diagnostics?
A: Yes, via SFF-8636 I²C interface.
10. Precautions
- Avoid bending radius less than 30mm
- Use ESD protection during handling
- Ensure clean fiber connectors before insertion
- Verify host system compatibility before purchase
