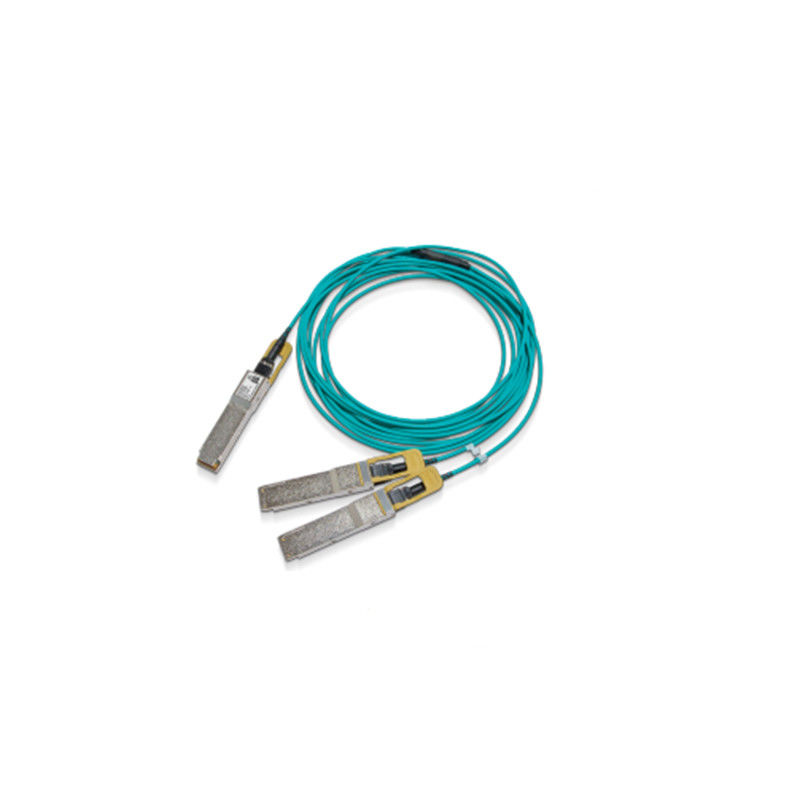

MFS1S50-H005V Mellanox AOC 200Gb/S To 2x100Gb/S IB HDR QSFP56 To 2x QSFP56 5m

Product Details:

Brand Name: Mellanox
Model Number: MFS1S50-H005V
Document: MFS1S50-H0xxV.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: outer box
Payment Terms: T/T
Supply Ability: Supply by project/batch
Get Best Price Contact Now

Detail Information

Availability: Stock Warranty: 1 Year
Condition: New And Original Technology: InfiniBand
Type: Mellanox AOC Cable Cable Length: 5 Meters
Model: MFS1S50-H005V Name: MFS1S50-H005V Active Optical Cable 200Gb/s To 2x100Gb/s IB HDR QSFP56 To 2x QSFP56 5m
Keyword: Mellanox AOC Cable
Highlight:

MFS1S50-H005V Mellanox AOC

,

Mellanox AOC 5m

,

MFS1S50-H005V Active Optical Cable

Product Description

NVIDIA MFS1S50-H005V 200G to 2x100G QSFP56 Active Optical Splitter Cable

1. Product Overview

The NVIDIA® MFS1S50-H005V is a high-performance, low-latency Active Optical Cable (AOC) designed to split a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 interfaces. Ideal for data centers and high-performance computing environments, this fiber optic cable ensures reliable, high-speed connectivity with minimal signal loss over distances up to 30 meters. It is fully compliant with InfiniBand HDR and 200GbE standards, offering a cost-effective solution for scalable network architecture.

2. Key Features

  • 200Gb/s to 2x100Gb/s bidirectional data transmission
  • Low power consumption: 4.5W (200G end), 3.0W (100G end)
  • Hot-pluggable QSFP56 form factor
  • Up to 30m reach over multi-mode fiber (MMF)
  • Digital Diagnostic Monitoring (DDM) via I²C interface
  • RoHS compliant and compatible with SFF-8665/8636

3. Technology & Standards

The cable utilizes VCSEL-based optical technology and PAM4 modulation to achieve high data rates with low latency. It complies with industry standards including SFF-8665, SFF-8636, InfiniBand HDR, and 200Gb Ethernet. The integrated EEPROM supports real-time monitoring and management.

4. Working Principle

The AOC converts electrical signals into optical signals using VCSEL transmitters. The 200Gb/s end splits the signal into two 100Gb/s streams, each transmitted over separate fiber pairs. The cable uses four lanes of 50Gb/s PAM4 modulation to maintain signal integrity and low bit error rate (BER).

5. Applications

  • Data center spine-leaf architecture
  • High-performance computing (HPC) clusters
  • Cloud infrastructure and hyperscale networking
  • Storage area networks (SAN) and network-attached storage (NAS)
  • AI and machine learning training networks

6. Specifications

Parameter Value
Model MFS1S50-H005V
Data Rate 200G to 2x100G
Interface QSFP56
Cable Type Active Optical Cable (AOC)
Length 5m
Power Consumption 4.5W (200G), 3.0W (100G)
Fiber Type Multi-Mode Fiber (MMF)
Compliance IB HDR, 200GbE, SFF-8665, RoHS

7. Advantages

  • Lower latency compared to passive DAC cables
  • Higher bandwidth density and flexibility
  • Superior signal integrity over longer distances
  • Reduced power consumption vs. alternative optical transceivers
  • Built-in diagnostics and status monitoring

8. Service & Support

We offer a 3-year warranty on all AOC products. Our technical team provides 24/7 support for installation, configuration, and troubleshooting. Custom labeling, bulk ordering, and OEM services are available.

9. FAQ

Q: Is this cable compatible with Mellanox switches?
A: Yes, it is fully compatible with Mellanox InfiniBand and Ethernet switches.

Q: Can I use this AOC for 100GbE only?
A: Yes, the cable supports both InfiniBand HDR and 200/100Gb Ethernet modes.

Q: What is the maximum operating temperature?
A: The cable operates in temperatures from 0°C to 70°C.

10. Precautions

  • Avoid bending the cable beyond a 30mm radius.
  • Ensure connectors are clean before insertion.
  • Do not expose to ESD-prone environments without protection.
  • Use only in approved data center and commercial environments.
