MFS1S00-H005V Aoc Fiber Cable 200Gb/S IB HDR QSFP56 5m mellanox cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 5 Meters |
| Model: | MFS1S00-H005V | Name: | Mellanox AOC Cable MFS1S00-H005V Active Optical Cable Up To 200Gb/s IB HDR QSFP56 5m |
| Keyword: | Mellanox AOC Cable | ||
| Highlight: | MFS1S00-H005V Aoc Fiber Cable,Aoc Fiber Cable 5m,Mellanox AOC MFS1S00-H005V |
||
Product Description

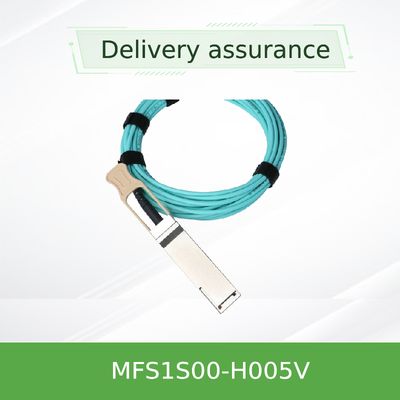

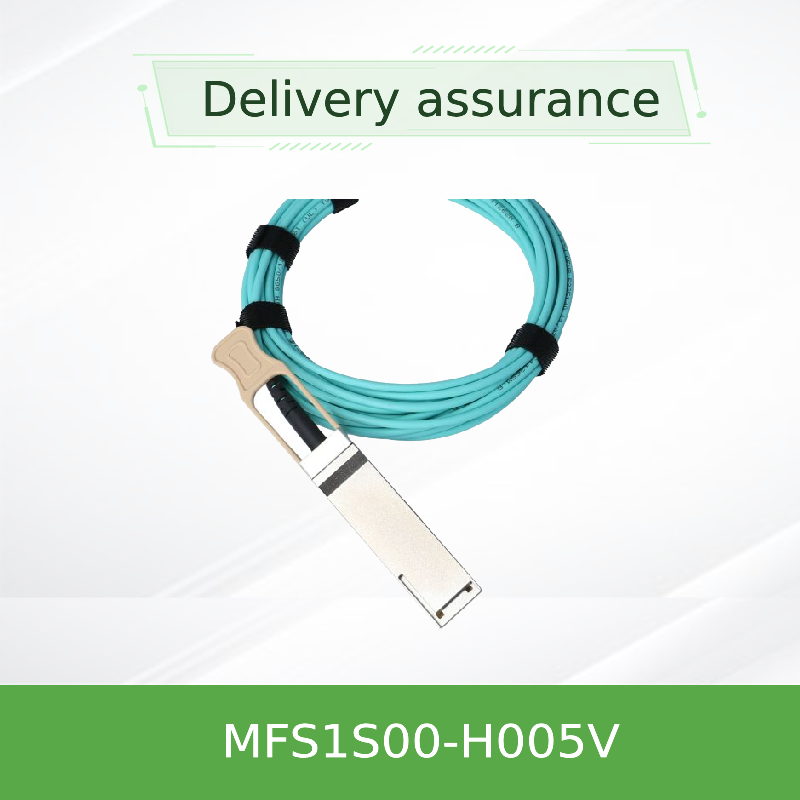

MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The NVIDIA® MFS1S00-H005V is a high-performance 5-meter 200Gb/s QSFP56 Active Optical Cable designed for data center and high-performance computing applications. This advanced optical fiber cable supports both 200G InfiniBand HDR and 200 Gigabit Ethernet standards, delivering exceptional bandwidth, minimal latency, and reliable performance over multi-mode fiber. As a superior alternative to passive copper solutions, this passive fiber cable replacement offers active signal integrity with integrated retiming capabilities.
2. Key Characteristics
- 200Gb/s bandwidth supporting InfiniBand HDR and 200GbE
- 4-channel 50Gb/s PAM4 modulation technology
- 5-meter reach over multi-mode fiber (MMF)
- Low power consumption: 5.0W typical per endpoint
- Hot-pluggable QSFP56 form factor
- SFF-8636 compliant I²C management interface
- Comprehensive Digital Diagnostic Monitoring (DDM)
3. Technology & Standards
The MFS1S00-H005V complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management), and InfiniBand HDR specifications. It employs VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. This advanced optical fiber cable solution provides superior performance compared to traditional passive fiber cable alternatives with active signal retiming and integrity preservation.
4. Working Principle
The AOC converts electrical signals into optical signals through integrated VCSEL transmitters. These optical signals transmit across multi-mode fiber strands and are converted back to electrical signals at the receiving terminus. Each lane operates at 50Gb/s using PAM4 encoding, ensuring high data integrity with minimal bit error rates. The integrated retiming functionality compensates for signal degradation, making this optical fiber cable solution superior to standard passive fiber cable options.
5. Applications
- 200G InfiniBand HDR computing clusters
- High-performance computing (HPC) infrastructures
- Data center spine-leaf architecture implementations
- Cloud service provider infrastructure interconnects
- Artificial intelligence and machine learning workload environments
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Length | 5m |
| Power Consumption | 5.0W (typical per end) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Enhanced bandwidth density and extended reach compared to passive copper alternatives
- Reduced latency and power consumption versus competing solutions
- Hot-pluggable architecture for simplified installation and maintenance procedures
- Robust construction with integrated ESD protection and advanced diagnostic capabilities
- Superior signal integrity through integrated retiming compared to standard passive fiber cable options
8. Service & Support
We provide comprehensive technical support services, 24/7 customer assistance, and global shipping capabilities. All products include full manufacturer warranty coverage and undergo rigorous compatibility and performance validation testing. Our expertise with optical fiber cable solutions ensures optimal deployment and operation of your infrastructure.
9. Frequently Asked Questions (FAQ)
Q: What applications is the MFS1S00-H005V designed for?
A: This optical fiber cable is ideal for 200G InfiniBand HDR systems, high-performance computing clusters, and 200GbE switch interconnects.
Q: Does this AOC support digital diagnostics?
A: Yes, it features comprehensive DDM capabilities for real-time performance monitoring.
Q: How does this active solution compare to passive fiber cable alternatives?
A: This AOC provides superior signal integrity over longer distances with integrated retiming, unlike passive solutions that suffer from signal degradation.
10. Precautions
- Maintain minimum bend radius of 30mm during installation
- Implement proper ESD protection measures during handling
- Verify QSFP56 port compatibility on host devices
- Avoid exposure to temperatures outside -40°C to 85°C range
- Ensure proper ventilation for thermal management in high-density deployments
