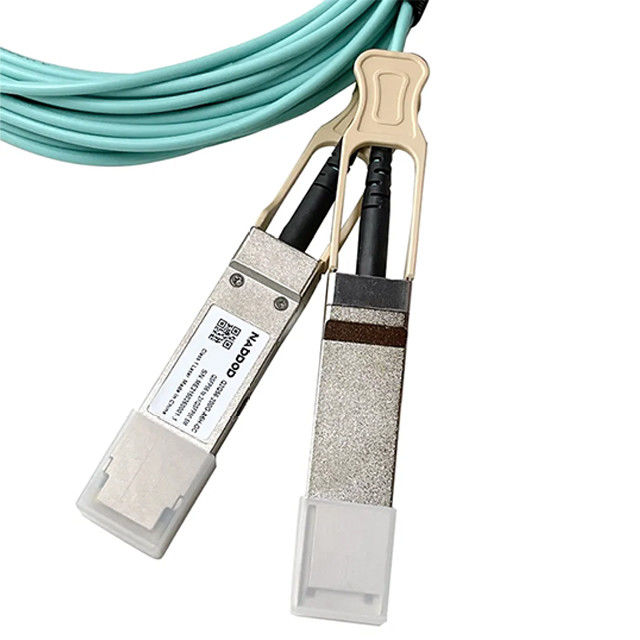

NVIDIA MFS1S50-H015V 200G to 2x100G Active Optical Splitter Cable

1. MFS1S50-H015V Product Overview

The NVIDIA® MFS1S50-H015E is a high-performance, low-latency Active Optical Cable (AOC) designed to split a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 connections. This optical fiber cable is engineered for data centers and high-performance computing environments requiring reliable, high-bandwidth interconnects. It supports both InfiniBand HDR and 200GbE standards, offering a flexible and cost-effective solution for scalable network architectures.

2.MFS1S50-H015V  Key Characteristics

• 200Gb/s to 2x100Gb/s bidirectional data transmission
• Low power consumption: 4.5W (200G end), 3.0W (100G end)
• Hot-pluggable QSFP56 form factor
• Up to 30-meter reach over multi-mode fiber (MMF)
• RoHS compliant and SFF-8665 compatible
• Digital Diagnostic Monitoring (DDM) support

3. MFS1S50-H015V Technology & Standards

The passive fiber cable leverages VCSEL-based optical technology and complies with industry standards including SFF-8665, SFF-8636, and IBTA InfiniBand HDR. It uses PAM4 modulation (4x50Gb/s) for high-speed data transfer and features programmable Rx output amplitude and pre-emphasis for signal integrity.

4. Working Principle

The AOC converts electrical signals into optical signals using integrated transceivers. The 200Gb/s end splits the signal into two 100Gb/s streams, each transmitted over separate fiber pairs to two independent QSFP56 ports. Each end includes an EEPROM for real-time status monitoring and management via the I²C interface.

5. Applications

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• Cloud infrastructure and hyperscale networks
• Storage area networks (SAN) and network-attached storage (NAS)
• AI and machine learning training networks

6. Specifications & Selection Guide

7. Advantages

• Lower latency compared to DAC cables
• Higher bandwidth density and flexibility
• Better EMI immunity and longer reach
• Integrated DDM for real-time health monitoring
• Compatible with NVIDIA Mellanox switches and adapters

8. Service & Support

We offer 24/7 technical support, worldwide shipping, and a standard warranty. Custom labeling, bulk pricing, and OEM services are available. Our professional team provides pre-sales consultation and post-sales troubleshooting.

9. Frequently Asked Questions

Q: Is this cable compatible with 100GbE switches?
A: Yes, it supports both InfiniBand HDR and Ethernet protocols.

Q: What is the maximum operating temperature?
A: 0°C to 70°C case temperature.

Q: Does it support digital diagnostics?
A: Yes, via SFF-8636 management interface.

10. Precautions

• Avoid bending radius less than 30mm
• Use ESD protection during handling
• Ensure compatible QSFP56 cages and firmware
• Do not remove dust caps until ready to use
• Complies with FCC Class A, CE, RoHS
