MFS1S50-H010V Mellanox Cable IB 200Gb/S HDR To 2x100Gb/S HDR100 MMF 10m Low Latency

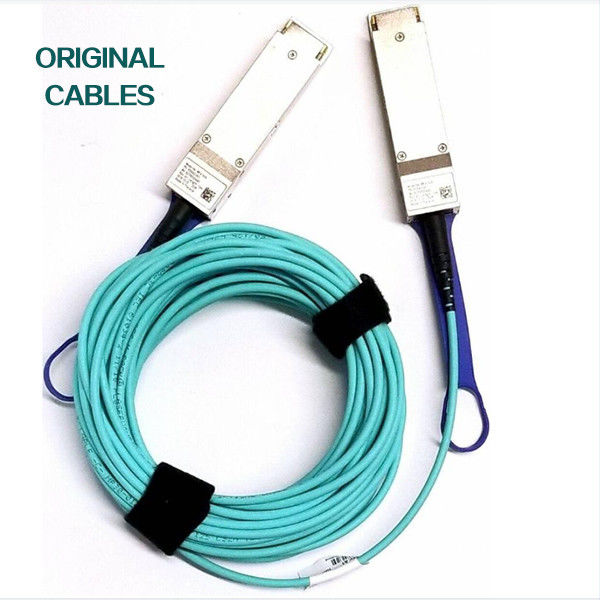

NVIDIA MFS1S50-H010V 200G to 2x100G Active Optical Splitter Cable (AOC)

Experience unparalleled data center performance with the NVIDIA® MFS1S50-H010V Active Optical Cable (AOC). This high-density, low-latency solution seamlessly splits a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 links, perfect for interconnecting high-performance switches with multiple servers. Engineered for efficiency and reliability, this optical fiber cable supports both InfiniBand HDR and 200GbE standards, delivering robust connectivity for the most demanding environments. Its passive fiber cable design within the assembly ensures signal integrity over distances up to 30m, making it an ideal optical fiber cable for modern data centers.

Key Features

• 200Gb/s to 2x100Gb/s Active Optical Splitter Cable (AOC)
• QSFP56 to 2x QSFP56 connectors
• Low-latency Multi-Mode Fiber (MMF)
• Supports InfiniBand HDR and 200GbE/100GbE
• 4x50G PAM4 modulation per port
• Hot-pluggable, SFF-8665 compliant
• 10-meter length

Core Technology & Standards

This passive fiber cable assembly integrates advanced VCSEL (Vertical Cavity Surface-Emitting Laser) technology and is fully compliant with key industry standards, ensuring broad interoperability and performance.

• Form Factor: QSFP56 (SFF-8665)
• Management Interface: SFF-8636 I²C with Digital Diagnostic Monitoring (DDM)
• Protocols: InfiniBand HDR, 200 Gigabit Ethernet (200GbE)
• Modulation: 4-level Pulse Amplitude Modulation (PAM4)

How It Works

The AOC functions as an intelligent signal splitter. The single QSFP56 end receives a 200Gb/s signal (4x50Gb/s lanes). Internal electronics split and route the data: Lanes 1 & 2 are directed to the first 100G QSFP56 port (2x50Gb/s lanes), and Lanes 3 & 4 are directed to the second 100G QSFP56 port. This provides a transparent, low-latency bridge between a 200G switch port and two 100G server ports, all via high-quality optical fiber cable.

Typical Applications

• High-Performance Computing (HPC): Connecting HDR InfiniBand switches to compute nodes.
• Cloud Data Centers: Aggregating server connections to top-of-rack (ToR) switches.
• AI & Machine Learning Clusters: Facilitating high-speed data transfer between GPUs and storage.
• Financial Trading Systems: Where ultra-low latency is critical.

Specifications & Ordering Info

Key Advantages

• Port Density Optimization: Effectively doubles port utilization by splitting one 200G port into two 100G connections.
• Superior Low Latency: Designed for financial and HPC applications where every nanosecond counts.
• Reduced Power & Cost: More energy-efficient and often more cost-effective than using multiple transceivers and separate fiber patch cables.
• Rigorous Quality Assurance: Undergoes extensive production testing for reliable out-of-the-box performance and long-term durability.
• Simplified Cable Management: Replaces two separate cables with one integrated solution, reducing clutter and potential points of failure.

Service & Support

We provide comprehensive support for all our products, including the MFS1S50-H010V optical fiber cable.

• Warranty: Standard manufacturer warranty.
• Availability: In stock for immediate shipment.
• Technical Support: 24/7 customer consultation and technical support from our expert team.
• Global Logistics: Reliable shipping to ensure accurate and timely delivery worldwide.

Frequently Asked Questions

Q: Is this cable compatible with my existing 100G switch ports?
A: The two 100G QSFP56 ends are standard and are compatible with any 100G port (HDR100, 100GbE). The 200G end must be plugged into a compatible 200G (HDR or 200GbE) port.

Q: Can the data rate be selected or configured?
A: Yes, the AOC supports Rate Select functionality via the SFF-8636 management interface, allowing host system configuration for different operating modes.

Q: What is the difference between an AOC and a passive DAC cable?
A: An Active Optical Cable (AOC) uses fiber optics and requires power to operate, allowing for longer distances (like this 10m cable) and lighter weight. A Passive Direct Attach Copper (DAC) cable is copper-based, shorter, and has no power consumption.

Q: Does this cable require any specific drivers?
A: No, this is a protocol-agnostic physical layer product. It does not require special drivers and will work with any compliant switch or adapter card.

Important Precautions

• Always install protective dust caps when ports are not in use.
• Ensure fiber connectors are clean before insertion to prevent contamination and signal loss.
• Observe minimum bend radius (30mm) to avoid damaging the internal passive fiber cable.
• Follow standard ESD (Electrostatic Discharge) precautions during handling and installation.
• This product is designed for indoor use in controlled data center environments.
