Network MFS1S00-H010V Mellanox cable 200Gb/S HDR QSFP56 MMF
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S00-H010V | Name: | Network MFS1S00-H010V Mellanox Aoc 200Gb/S HDR QSFP56 MMF |
| Keyword: | Mellanox Cable | ||
| Highlight: | MFS1S00-H010V mellanox aoc,QSFP56 200g mellanox aoc,MFS1S00-H010V aoc network cable |
||
Product Description

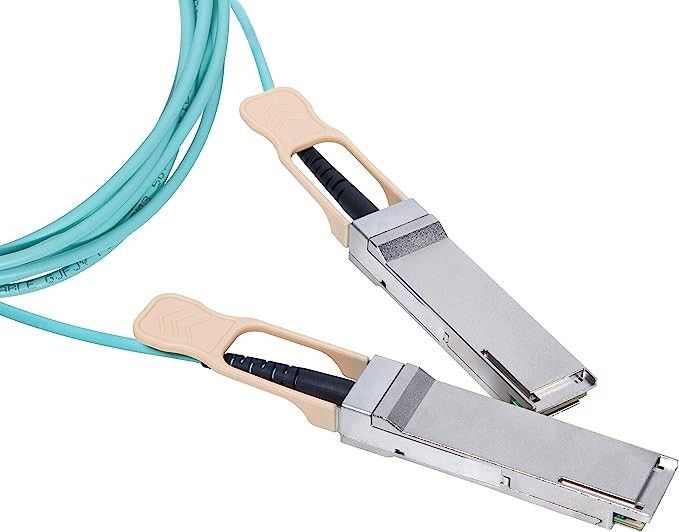

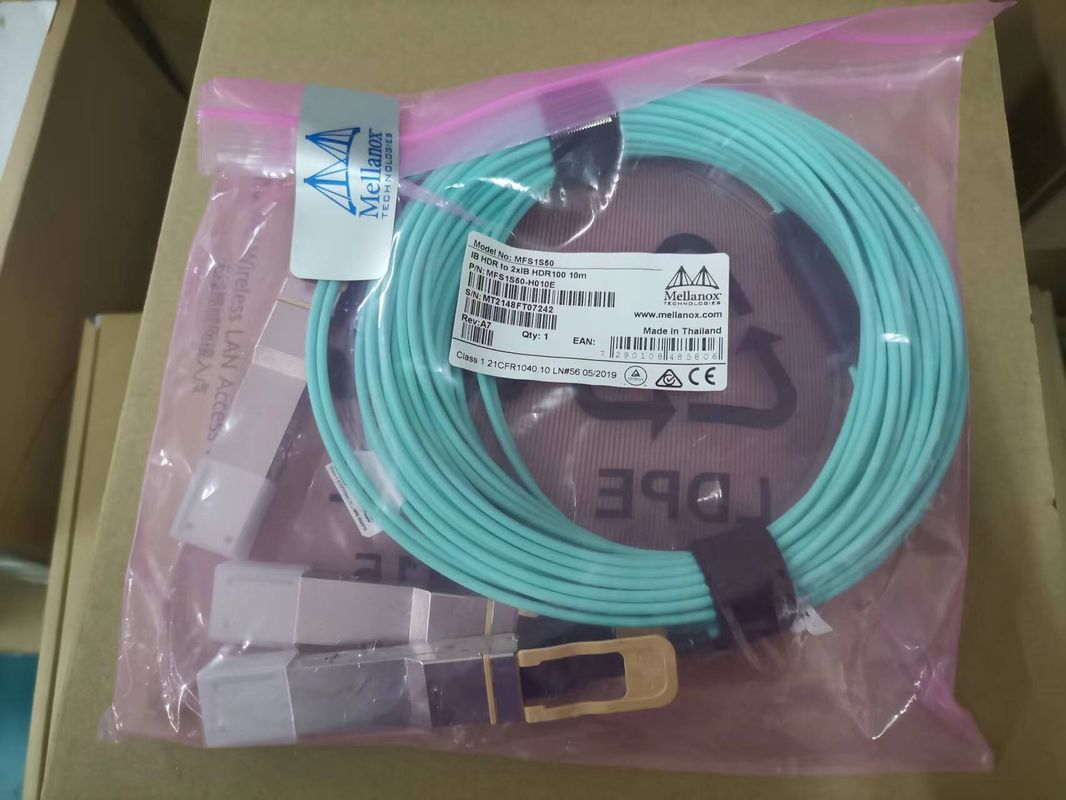

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable designed for demanding data center interconnects. Supporting both InfiniBand HDR and 200GbE standards, this optical fiber cable delivers exceptional bandwidth, low latency, and reliable performance over distances up to 100 meters. Engineered for high-density environments, it represents an optimal solution for modern server and switch interconnections.
2. Key Characteristics
- 200Gb/s data rate supporting InfiniBand HDR and 200Gb Ethernet
- 4-channel 50Gb/s PAM4 modulation technology
- Hot-pluggable QSFP56 form factor with SFF-8665 compliance
- Low power consumption: 5.0W typical per endpoint
- Extended reach up to 100m using multi-mode fiber (MMF)
- Comprehensive Digital Diagnostic Monitoring (DDM) capabilities
- RoHS compliant with SFF-8636 management interface
3. Technology & Standards
This advanced optical fiber cable complies with SFF-8665, SFF-8636, and InfiniBand HDR standards. It incorporates VCSEL-based optical technology supporting both PAM4 and NRZ modulation schemes. The integrated passive fiber cable design ensures superior signal integrity and minimal bit error rate (BER) performance.
4. Working Principle
The AOC converts electrical signals to optical signals through integrated VCSEL transmitters. These optical signals transmit through multi-mode optical fiber cable before being converted back to electrical signals at the receiving terminal. Each lane operates at 50Gb/s with integrated retiming and clock data recovery (CDR) functionality, ensuring signal integrity across the entire link.
5. Applications
- 200G InfiniBand HDR computing clusters
- High-performance computing (HPC) and artificial intelligence infrastructure
- Cloud computing and hyperscale data center networks
- Inter-switch connectivity (including NVIDIA SN3700 to SN4600)
- High-speed storage area networks (SAN) and network-attached storage (NAS)
6. Specifications
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Length | 10 meters |
| Power Consumption | 5.0W (typical per end) |
| Operating Temperature | 0°C to 70°C |
| Diagnostic Monitoring | DDM with real-time analytics |
7. Advantages
- Superior bandwidth and lower latency compared to Direct Attach Copper cables
- Lightweight construction with enhanced flexibility for simplified cable management
- Complete immunity to electromagnetic interference (EMI)
- Extended reach capabilities beyond passive copper solutions
- Integrated diagnostic functions for proactive system monitoring
- Backward compatibility with existing 100GbE infrastructure
8. Service & Support
We provide comprehensive 24/7 technical support, global logistics capabilities, and full product warranty coverage. All optical fiber cable products undergo rigorous testing and certification processes to ensure compatibility and performance. Custom-length passive fiber cable solutions are available upon request to meet specific deployment requirements.
9. FAQ
Q: What is the difference between active and passive fiber cable designs?
A: Active optical cables like the MFS1S00-H010V incorporate electronics for signal conditioning, enabling longer distances than passive fiber cable alternatives while maintaining signal integrity.
Q: Is this cable compatible with 100GbE switch interfaces?
A: Yes, the optical fiber cable supports backward compatibility with 100GbE systems when used with appropriate configuration settings.
Q: What diagnostic information does the DDM feature provide?
A: The Digital Diagnostic Monitoring delivers real-time data on temperature, voltage, optical power, and laser bias current for each lane of the passive fiber cable.
10. Precautions
- Maintain minimum bend radius of 30mm to prevent damage to internal fibers
- Implement proper ESD protection procedures during handling and installation
- Operate only within specified temperature and humidity ranges
- Verify host system compatibility and firmware requirements before deployment
- Use appropriate cleaning procedures for optical connectors to maintain performance
