MCP7H50-H002R26 DAC Splitter Cable IB HDR 200Gb/S To 2x100Gb/S 2m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP7H50-H002R26 |
| Document: | MCP7H50-H002R26.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 2 Meters |
| Highlight: | MCP7H50-H002R26 DAC Splitter Cable,200Gb/S DAC Splitter Cable,2m Mellanox DAC Cable |
||
Product Description

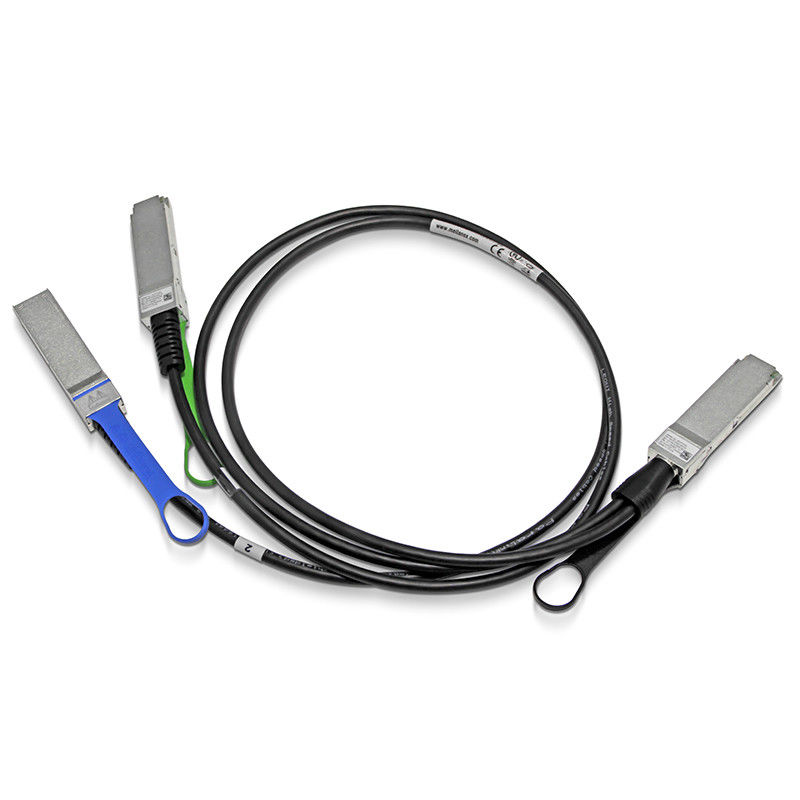

Mellanox MCP7H50-H002R26: High-Density 200G HDR to Dual 100G HDR100 Splitter Cable
Premium Performance Features
- ✓ Delivers 200Gb/s HDR bandwidth split into dual 100Gb/s HDR100 channels
- ✓ Utilizes advanced PAM4 modulation for superior signal integrity
- ✓ Extremely low power consumption (<0.1W) reduces operational costs
- ✓ Hot-pluggable design enables seamless system maintenance
- ✓ Eco-friendly construction with LSZH jacket and halogen-free materials
Product Overview
The Mellanox MCP7H50-H002R26 represents a cutting-edge passive fiber cable alternative, engineered to transform a single 200Gb/s InfiniBand HDR port into two independent 100Gb/s HDR100 connections. This high-performance Direct Attach Copper (DAC) solution offers data centers a power-efficient, cost-effective method for expanding connectivity without compromising speed or reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | MCP7H50-H002R26 |
| Data Rate | 200G HDR to 2×100G HDR100 |
| Cable Type | Direct Attach Copper (DAC) |
| Length | 2 meters ±0.05m |
| Connectors | QSFP56 to 2×QSFP56 |
| Wire Gauge | 26 AWG |
| Power Consumption | <0.1W |
| Operating Temperature | 0°C to 70°C |
| Compliance | InfiniBand HDR, SFF-8665, SFF-8636, RoHS |
Advanced Technology
This innovative passive fiber cable solution implements 4×50Gb/s PAM4 modulation technology, ensuring exceptional signal integrity across all connected channels. The cable assembly complies with InfiniBand Trade Association (IBTA) HDR standards and incorporates SFF-8665 and SFF-8636 specifications for seamless integration and management via I²C interface.
Operational Principle
The MCP7H50-H002R26 operates as a passive electrical bridge, intelligently routing high-speed signals from a single QSFP56 connector (supporting 200G HDR) to two separate QSFP56 connectors (each supporting 100G HDR100). This sophisticated passive fiber cable alternative maintains signal integrity through precisely impedance-matched copper conductors (100Ω characteristic impedance) and advanced shielding technologies that minimize crosstalk and electromagnetic interference.
Application Scenarios
This high-performance interconnect solution is ideally suited for:
- Hyperscale data center spine-leaf architectures
- High-performance computing (HPC) clusters
- Artificial intelligence and machine learning infrastructure
- Storage area networks (SAN) and network-attached storage (NAS)
- Financial trading systems requiring ultra-low latency
Competitive Advantages
The MCP7H50-H002R26 offers distinct benefits over both active optical cables and previous-generation copper solutions:
- Cost Efficiency: Approximately 30-40% lower cost than equivalent active optical solutions
- Power Savings: Consumes less than 0.1W compared to 1.5-2.5W for active cables
- Enhanced Reliability: Passive design eliminates active components that can fail
- Reduced Latency: Electrical signal transmission provides lower latency than optical conversion
- Environmental Benefits: LSZH jacket and halogen-free construction improve safety
Service & Support
Mellanox provides comprehensive support for the MCP7H50-H002R26, including:
- 1-year limited hardware warranty covering defects in materials and workmanship
- Global technical support with expert assistance for integration challenges
- Custom configuration services for large-scale deployments
- Typical order fulfillment within 2-4 weeks depending on quantity
Frequently Asked Questions
Q: What is the maximum distance supported by this DAC solution?
A: The MCP7H50-H002R26 is optimized for short-reach applications up to 3 meters, making it ideal for rack-scale and adjacent-rack connectivity.
Q: Is this cable compatible with non-Mellanox equipment?
A: While optimized for Mellanox systems, this passive fiber cable alternative follows industry standards and is generally compatible with other vendors' equipment that supports InfiniBand HDR and compatible QSFP56 interfaces.
Q: What does the "R26" designation indicate in the model number?
A: The "R26" specifies the cable's wire gauge (26 AWG) and rainbow pulltab color for easy identification in high-density environments.
Installation & Handling Guidelines
To ensure optimal performance and longevity:
- Maintain minimum bend radius of 34mm for single bends and 68mm for repeated bends
- Avoid sharp bends especially near connector interfaces
- Ensure proper ESD precautions during handling and installation
- Verify compatibility with host system firmware and drivers
- Operate only within specified temperature and humidity ranges
- Regularly inspect connectors for debris or damage before installation
