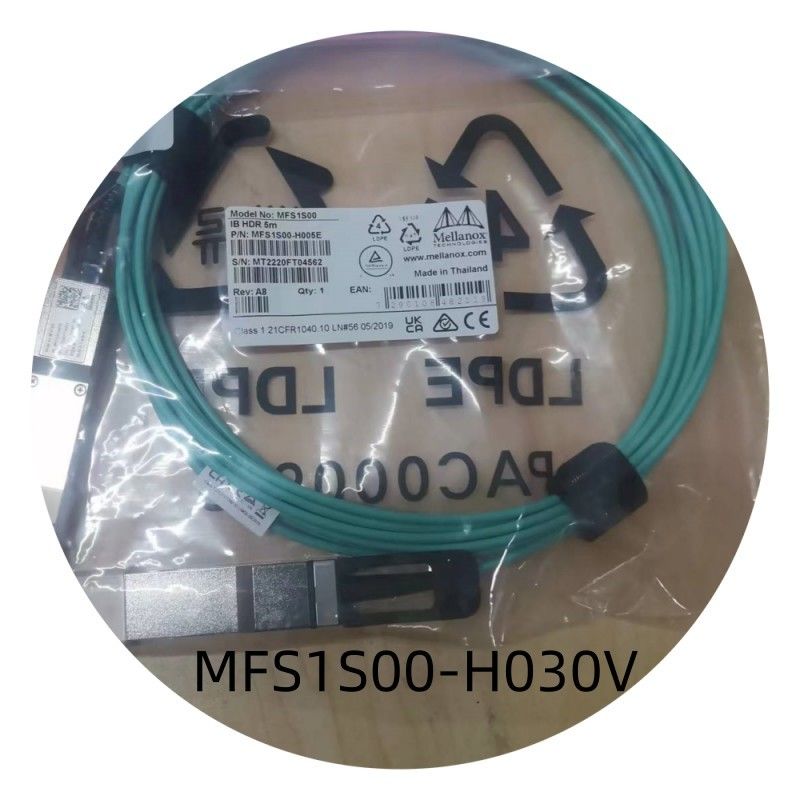

MFS1S00-H030V IB 200G mellanox Aoc cable Network Cable 30M QSFP56 High Speed Low Latency
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H030V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand AOC Cable |
| Type: | Mellanox AOC Cable | Cable Length: | 30 Meters AOC Cable |
| Model: | MFS1S00-H030V | ||
| Highlight: | MFS1S00-H030V aoc network cable,High Speed 200g aoc,china Mellanox aoc network cable |
||
Product Description

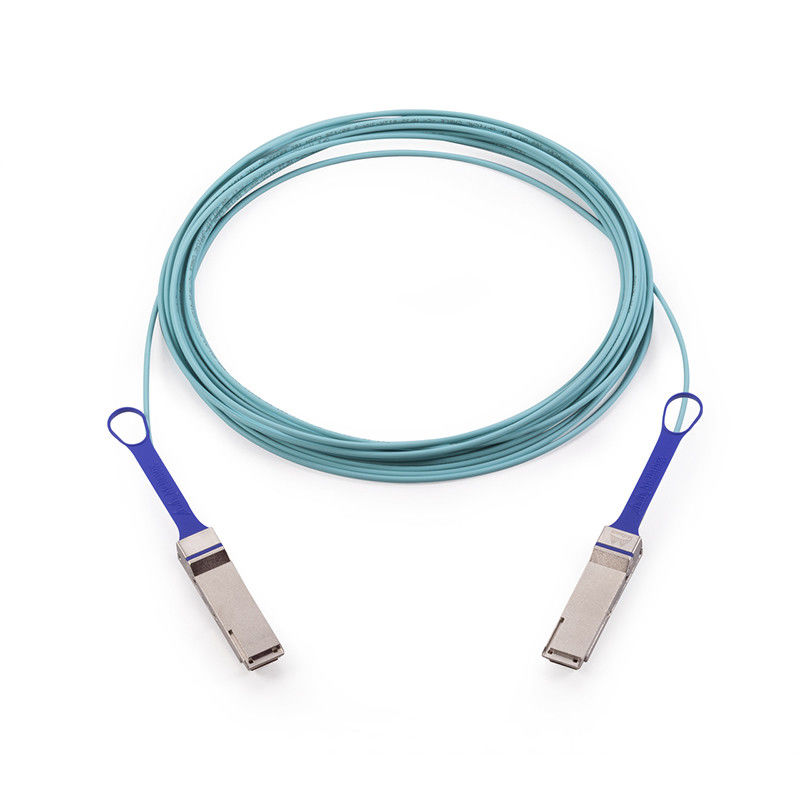

MFS1S00-H030V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The NVIDIA® MFS1S00-H030V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for data center and high-performance computing environments. It supports both InfiniBand HDR and 200 Gigabit Ethernet, delivering exceptional bandwidth, low latency, and extended reach up to 100 meters. This optical fiber cable is ideal for high-density interconnects and offers superior reliability and power efficiency.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200GbE
- 4x 50Gb/s PAM4 modulation per lane
- Hot-pluggable QSFP56 form factor
- Up to 100m reach over multi-mode fiber (MMF)
- Low power consumption: 5.0W typical per end
- Digital Diagnostic Monitoring (DDM) with real-time health tracking
- RoHS compliant and ESD protected
3. Technology & Standards
The MFS1S00-H030V complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management interface), and InfiniBand HDR. It uses VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. This passive fiber cable alternative offers active signal integrity with built-in retiming and equalization.
4. Working Principle
The AOC converts electrical signals into optical signals via integrated VCSEL transmitters. Signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Each lane operates at 50Gb/s using PAM4 encoding. Built-in CDR (Clock and Data Recovery) and programmable equalization ensure signal integrity over extended distances.
5. Applications
- 200G InfiniBand HDR clusters
- 200GbE switch interconnects (e.g., SN3700 to SN4600)
- High-performance computing (HPC) and AI workloads
- Data center spine-leaf architectures
- Storage area networks (SAN) and network-attached storage (NAS)
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200Gb/s |
| Cable Type | Active Optical Cable (AOC) |
| Interface | QSFP56 |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Max Length | 100m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Higher bandwidth and lower latency compared to DAC cables
- Longer reach than passive copper solutions
- Better EMI immunity and lighter weight
- Hot-pluggable for easy deployment and maintenance
- Full digital diagnostics for proactive monitoring
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty. All products are tested and guaranteed to be fully functional. Customized bulk orders and OEM services are available.
9. FAQ
Q: What is the maximum distance supported?
A: Up to 100 meters with multi-mode fiber.
Q: Is this cable compatible with 100GbE switches?
A: Yes, it supports backward compatibility with 100GbE using rate select features.
Q: Does it require external power?
A: No, it is powered directly through the QSFP56 port.
10. Precautions
- Avoid bending the cable beyond a 30mm radius.
- Ensure ESD protection during handling and installation.
- Use only in environments with operating temperatures between 0°C and 70°C.
- Verify host system compatibility before purchase.
