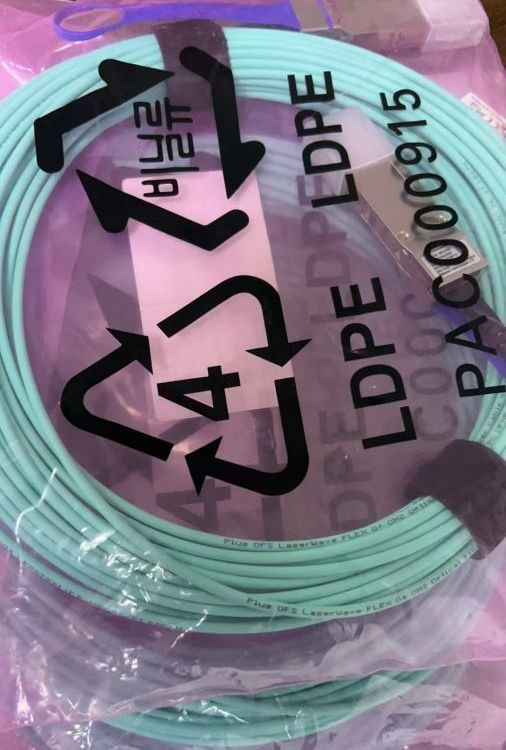

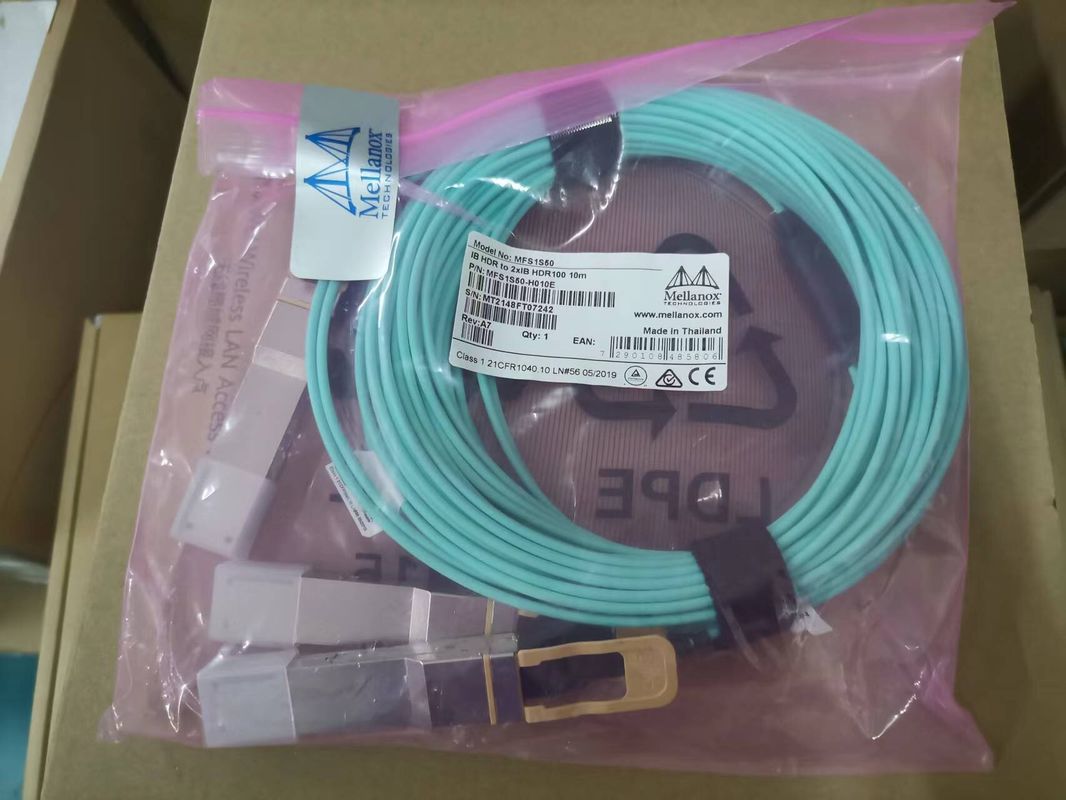

MFS1S00-H005V Mellanox IB Active Fiber Cable 5 Meters mellanox AOC cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 5 Meters |
| Model: | MFS1S00-H005V | ||
| Highlight: | MFS1S00-H005V active fiber cable,Mellanox IB active fiber cable,5 Meters Mellanox AOC |
||
Product Description
MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The NVIDIA® MFS1S00-H005V is a high-performance 200Gb/s QSFP56 Active Optical Cable designed for high-density data center interconnects. This 5-meter Optical Fiber Cable supports both InfiniBand HDR and 200 Gigabit Ethernet applications, delivering superior bandwidth, low latency, and reliable performance. As a hot-pluggable, RoHS compliant solution, it's engineered for demanding data center environments where performance and reliability are critical.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200GbE standards
- 4x 50Gb/s PAM4 modulation per lane
- 5-meter length optimized for rack-to-rack connections
- Low power consumption: 5.0W typical per end
- Hot-pluggable QSFP56 form factor
- Digital Diagnostic Monitoring (DDM) with real-time performance tracking
- Programmable Rx output amplitude and pre-emphasis
3. Technology & Standards
The MFS1S00-H005V complies with industry standards including SFF-8665, SFF-8636, and InfiniBand HDR specifications. It employs VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. The integrated I²C management interface enables advanced monitoring and control capabilities.
4. Working Principle
This Active Optical Cable converts electrical signals into optical signals using integrated VCSEL transmitters. These optical signals travel through multi-mode fiber and are converted back to electrical signals at the receiving end. Each lane operates at 50Gb/s using PAM4 encoding, ensuring high data integrity with minimal bit error rates for reliable data center operations.
5. Applications
- 200G InfiniBand HDR computing clusters
- High-performance computing (HPC) and artificial intelligence workloads
- Data center spine-leaf architecture implementations
- Cloud infrastructure and enterprise networking environments
- Inter-switch connections (compatible with NVIDIA SN3700 and SN4600 switches)
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Length | 5m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Superior bandwidth and performance compared to passive copper solutions
- Optimized 5-meter length perfect for data center rack connections
- Lower power consumption than alternative optical transceivers
- Hot-pluggable design for effortless deployment and maintenance
- Comprehensive diagnostic capabilities for proactive network management
- Broad compatibility with major switch and server platforms
8. Service & Support
We provide complete technical support, 24/7 customer service, and global shipping options. All products include standard warranty protection. Volume orders receive competitive pricing and expedited delivery services to meet project timelines.
9. Frequently Asked Questions (FAQ)
Q: What applications is this Optical Fiber Cable best suited for?
A: The MFS1S00-H005V is ideal for 200GbE and InfiniBand HDR applications, particularly in high-performance computing and data center environments where its 5-meter length is optimal for rack connections.
Q: Does this cable support backward compatibility with 100GbE systems?
A: Yes, it offers backward compatibility with 100GbE systems through appropriate rate select configuration.
Q: What diagnostic capabilities does this Active Optical Cable provide?
A: It includes full Digital Diagnostic Monitoring (DDM) for real-time performance tracking of temperature, voltage, optical power, and bias current.
10. Precautions
- Maintain minimum bend radius of 30mm during installation
- Observe ESD precautions during handling and installation procedures
- Operate within specified temperature (0°C to 70°C) and humidity (5% to 85%) ranges
- Verify host system QSFP56 cage compatibility before deployment
- Use protective caps when not connected to prevent contamination
