InfiniBand Mellanox AOC Cable High Speed Interconnect Cable MFS1S00-H030V
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H030V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 30 Meters |
| Model: | MFS1S00-H030V | ||
| Highlight: | InfiniBand High Speed Mellanox AOC,Mellanox AOC MFS1S00-H030V,China Mellanox Aoc Ethernet Cable |
||
Product Description

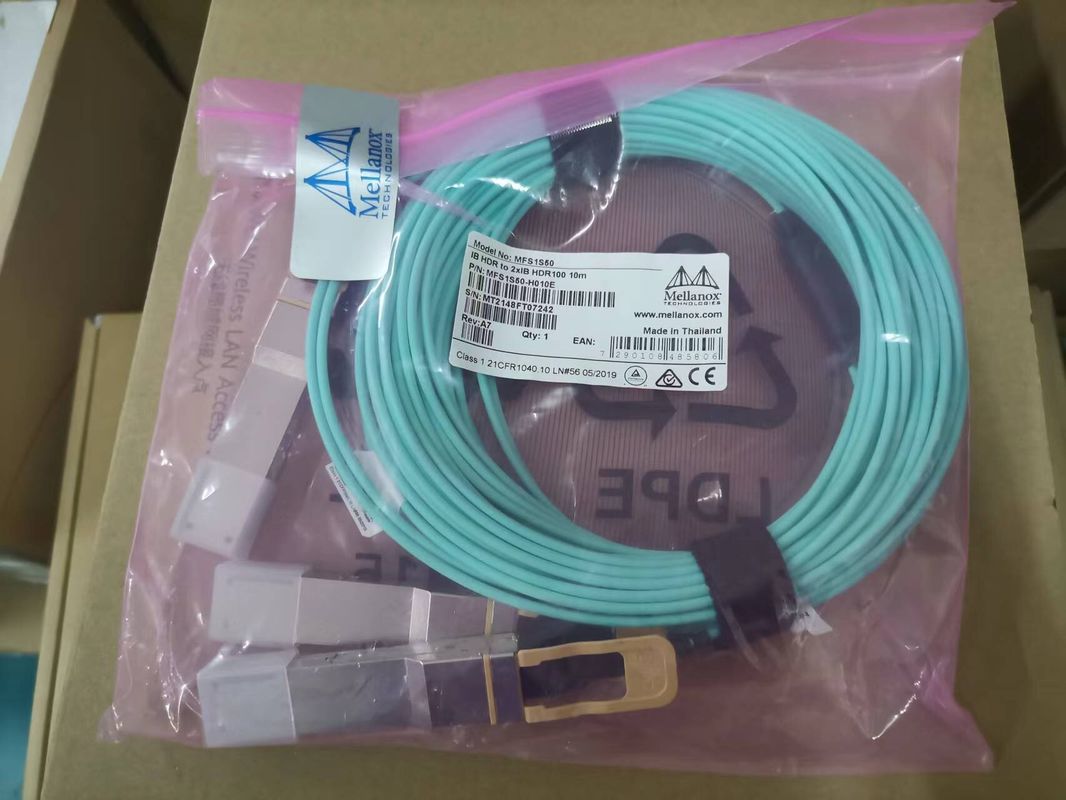

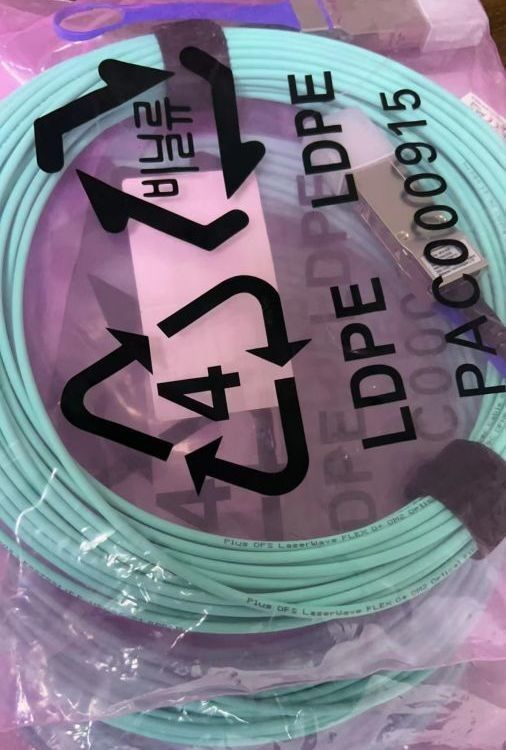

NVIDIA MFS1S00-H030V 200Gbps QSFP56 Active Optical Cable
Product Overview
The NVIDIA MFS1S00-H030V is a high-performance optical fiber cable solution designed for next-generation data center interconnects. This QSFP56 form factor passive fiber cable alternative delivers 200Gb/s bandwidth using four 50Gbps PAM4 modulated lanes over multi-mode fiber. With a reach of up to 30 meters, this active optical cable provides superior signal integrity, low power consumption, and exceptional reliability for high-density computing environments.
Key Features
- 200Gb/s bidirectional bandwidth (4×50G PAM4)
- 30-meter reach over multi-mode fiber
- QSFP56 form factor with hot-pluggable capability
- Low power consumption: 5.0W typical per end
- Digital Diagnostic Monitoring (DDM) interface
- InfiniBand HDR and 200GbE compliant
- RoHS compliant and ESD protected
Technical Specifications
Applications
This high-performance optical fiber cable is ideal for:
- High-performance computing (HPC) clusters
- Artificial intelligence and machine learning infrastructure
- Data center spine-leaf architectures
- 200G InfiniBand HDR interconnects
- 200 Gigabit Ethernet switch connections
- Storage area networks and data storage interconnects
Technical Advantages
The MFS1S00-H030V represents a significant advancement in passive fiber cable technology with several key benefits:
- Enhanced Signal Integrity: Built-in retiming and signal conditioning ensure reliable data transmission
- Power Efficiency: Lower power consumption compared to alternative solutions
- Extended Reach: 30-meter capability enables flexible data center layouts
- Comprehensive Monitoring: Real-time diagnostics for proactive maintenance
- Interoperability: Certified compatibility with major switching platforms
Compatibility Information
This high-quality optical fiber cable is tested and verified for compatibility with:
- NVIDIA Spectrum switches
- Mellanox InfiniBand systems
- 200GbE compliant networking equipment
- Industry-standard QSFP56 ports
Note: Always verify compatibility with your specific equipment before purchase.
Frequently Asked Questions
Q: What is the difference between this active optical cable and passive DAC cables?
A: Active optical cables like the MFS1S00-H030V contain optical transceivers that convert electrical signals to optical and back, allowing longer reaches (up to 100m) compared to passive DAC cables which are typically limited to 3-5m.
Q: Does this cable require special cleaning or maintenance?
A: Like all fiber optic connections, the connectors should be kept clean and free from dust. Regular inspection and cleaning with appropriate fiber optic cleaning tools is recommended.
Q: Is this cable compatible with 100GbE systems?
A: Yes, through backward compatibility features, this cable can operate at 100GbE speeds when connected to appropriate equipment.
