MFS1S50-H015V Mellanox Aoc cable InfiniBand Active Copper QSFP+ To SFP+ Cable Assembly
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S50-H015V |
| Document: | MFS1S50-H0xxV.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S50-H015V | ||
| Highlight: | MFS1S50-H015V Mellanox Aoc,InfiniBand Mellanox Aoc,MFS1S50-H015V Active Optical Cable |
||
Product Description

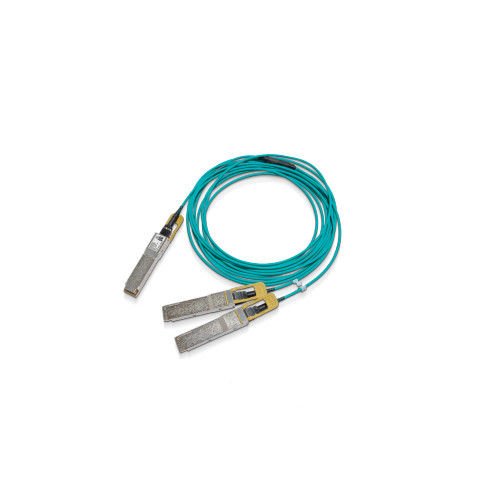

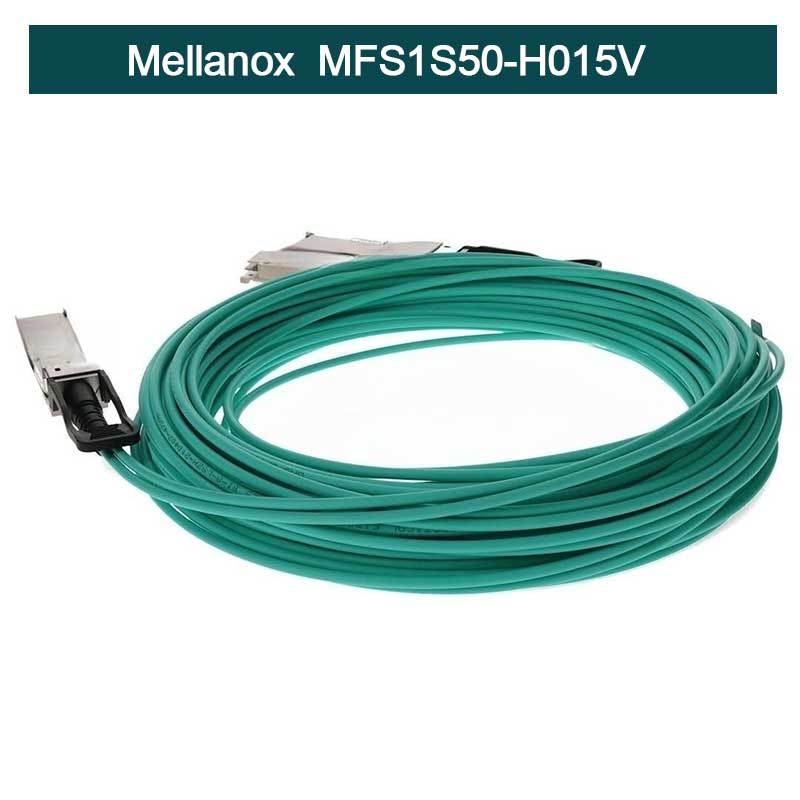

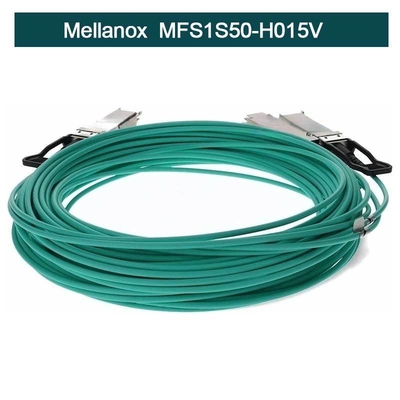

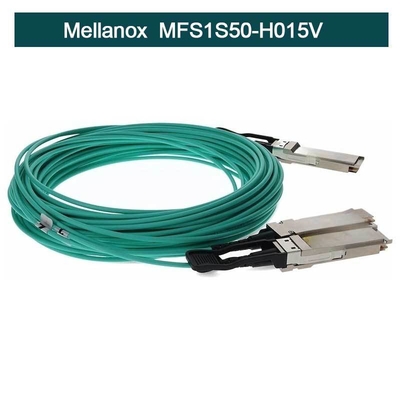

NVIDIA MFS1S50-H015V 200Gb/s to 2x100Gb/s QSFP56 Active Optical Splitter Cable
Product Overview
The NVIDIA® MFS1S50-H015V is a high-performance, low-latency Active Optical Cable (AOC) designed to split a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 connections. Ideal for high-density data center environments, this fiber optic cable offers reliable, power-efficient connectivity for HDR InfiniBand and 200GbE applications. With a length of 15 meters, it provides flexibility in rack and row-based deployments.
Key Features
- 200Gb/s to 2x100Gb/s bidirectional data transmission
- Low-latency multi-mode fiber (MMF) design
- Hot-pluggable QSFP56 form factor
- Supports InfiniBand HDR and 200Gb Ethernet
- Digital Diagnostic Monitoring (DDM) via I²C
- RoHS compliant and energy-efficient (4.5W typical power)
Technology & Standards
This active optical cable complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management interface), and IEEE 200GbE. It uses VCSEL-based optical technology and PAM4 modulation to achieve high data rates over multi-mode fiber with low bit error rates.
Working Principle
The cable converts electrical signals from the 200Gb/s QSFP56 port into optical signals, which are split and transmitted over four multi-mode fiber pairs. At the dual QSFP56 ends, the optical signals are converted back to electrical signals, providing two independent 100Gb/s channels. Integrated EEPROM enables real-time monitoring and management.
Applications
- Data center spine-leaf architectures
- High-performance computing (HPC) clusters
- Cloud infrastructure and hyperscale networking
- Storage area networks (SAN) and network-attached storage (NAS)
- AI and machine learning training networks
Specifications & Selection Guide
| Model | Data Rate | Interface | Length | Power |
|---|---|---|---|---|
| MFS1S50-H015V | 200G to 2x100G | QSFP56 | 15m | 4.5W |
Advantages
- Lower latency compared to passive DAC cables
- Higher bandwidth density and flexibility
- Better signal integrity over longer distances
- Integrated diagnostics for proactive maintenance
- Compatible with major switch and server platforms
Service & Support
We offer a 3-year warranty, global technical support, and fast shipment from our $10M+ inventory. Our team provides 24/7 consultation and integration services to ensure seamless deployment.
FAQ
Q: What is the maximum distance supported?
A: Up to 30 meters over OM4 multi-mode fiber.
Q: Is this compatible with 100GbE switches?
A: Yes, it supports both InfiniBand HDR and Ethernet protocols.
Q: Can I use this cable in a high-temperature environment?
A: Operating temperature range is 0°C to 70°C.
Precautions
- Avoid bending radius below 30mm to prevent fiber damage.
- Ensure clean connectors before insertion to avoid signal loss.
- Use ESD protection during handling.
- Verify host system compatibility before purchase.
