Mellanox AOC DAC cable MFS1S00-H015V Aoc Fiber Cable Fast Efficient Data Center Connections 100GbE 25GbE
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H015V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 15 Meters |
| Model: | MFS1S00-H015V | ||
| Highlight: | MFS1S00-H015V Aoc Fiber Cable,25GbE Aoc Fiber Cable,Mellanox Aoc Active Optical Cable |
||
Product Description

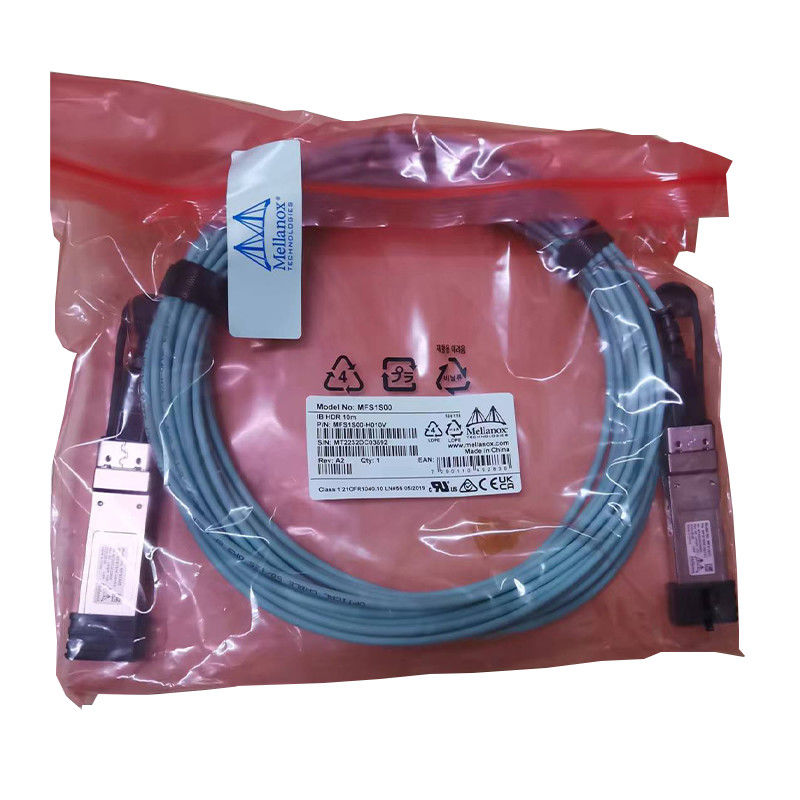

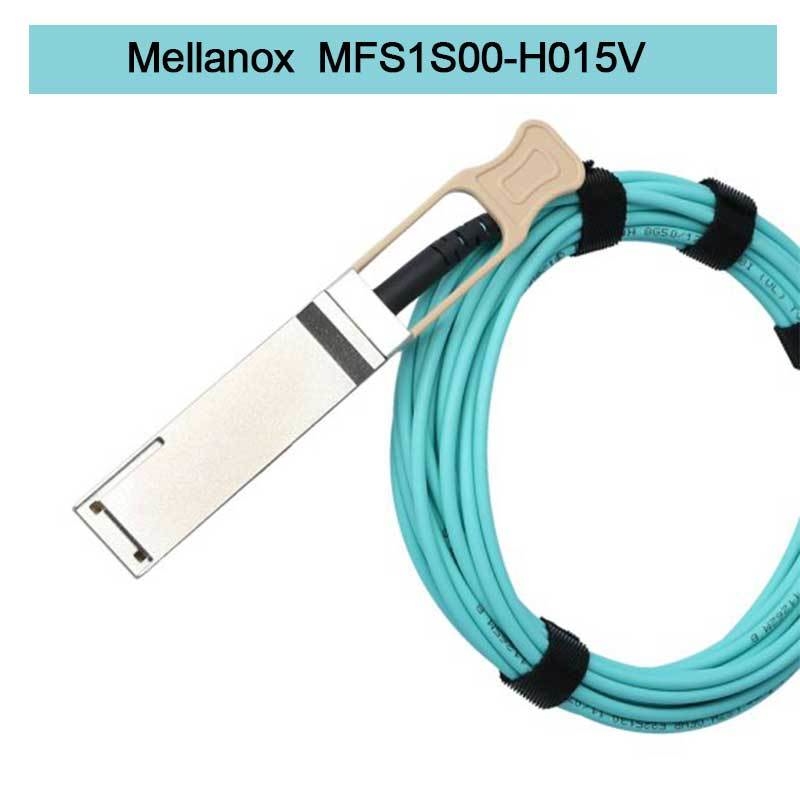

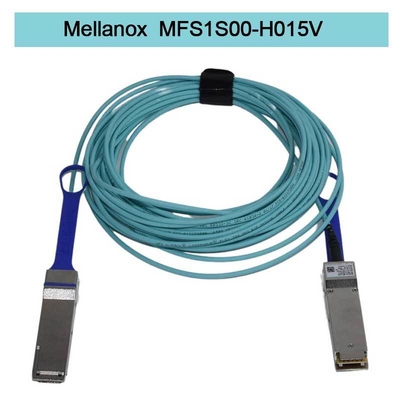

MFS1S00-H015V 200Gb/s QSFP56 Active Optical Cable
The NVIDIA® MFS1S00-H015V is a high-performance Optical Fiber Cable designed for 200Gb/s InfiniBand HDR and 200 Gigabit Ethernet applications. This passive fiber cable alternative offers superior bandwidth, low latency, and extended reach up to 100 meters. It is hot-pluggable, RoHS compliant, and ideal for modern data centers requiring high port density and energy efficiency.
Key Features
- Supports 200Gb/s InfiniBand HDR and 200GbE
- 4x 50Gb/s PAM4 modulation per lane
- Hot-pluggable QSFP56 form factor
- Low power consumption: 5.0W typical per end
- Reach up to 100m over multi-mode fiber
Technology & Standards
This Optical Fiber Cable complies with SFF-8665, SFF-8636, and InfiniBand HDR standards. It uses VCSEL-based optical technology and supports digital diagnostic monitoring (DDM) for real-time performance tracking.
How It Works
The MFS1S00 converts electrical signals into optical signals using integrated VCSEL transceivers. Each end contains four fiber channels operating at 50Gb/s, enabling aggregate bandwidth of 200Gb/s. The cable supports retiming and signal integrity features for reliable data transmission.
Applications
- Data center interconnects
- High-performance computing (HPC) clusters
- Cloud infrastructure
- Enterprise networking
- AI and machine learning platforms
Specifications
| Parameter | Value |
|---|---|
| Model | MFS1S00-H015V |
| Data Rate | 200Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 15m |
| Power Consumption | 5.0W (typical) |
| Protocols | InfiniBand HDR, 200GbE |
| Compliance | SFF-8665, SFF-8636, RoHS |
Advantages
- Higher bandwidth and lower latency than passive copper cables
- Longer reach without signal degradation
- Lower power consumption compared to alternative solutions
- Hot-pluggable for easy installation and maintenance
- Built-in diagnostics for proactive monitoring
Service & Support
We offer 24/7 technical support, worldwide shipping, and a comprehensive warranty. Our team provides integration assistance and custom configuration services to ensure seamless deployment.
Frequently Asked Questions
Q: What is the maximum length of this Optical Fiber Cable?
A: The MFS1S00 supports lengths up to 100m.
Q: Is this cable compatible with 100GbE systems?
A: Yes, it supports backward compatibility with 100GbE using rate select features.
Q: Does it require external power?
A: No, it is powered directly through the QSFP56 port.
Precautions
- Avoid bending radius less than 30mm
- Ensure ESD protection during handling
- Verify host system compatibility before installation
- Do not remove protective caps until ready to install
