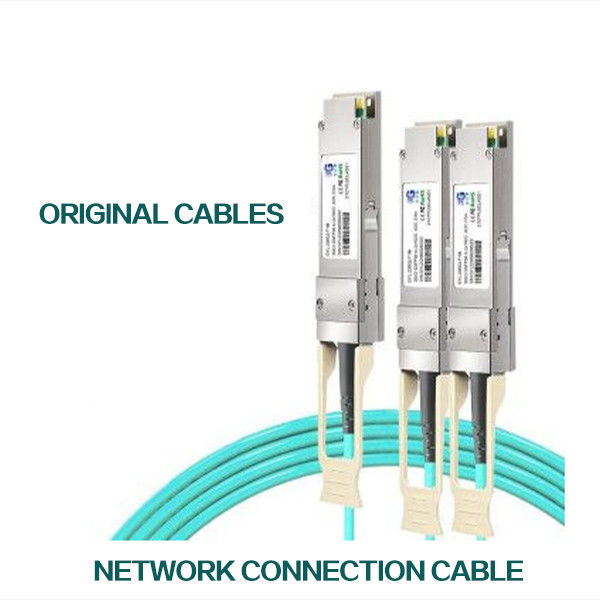

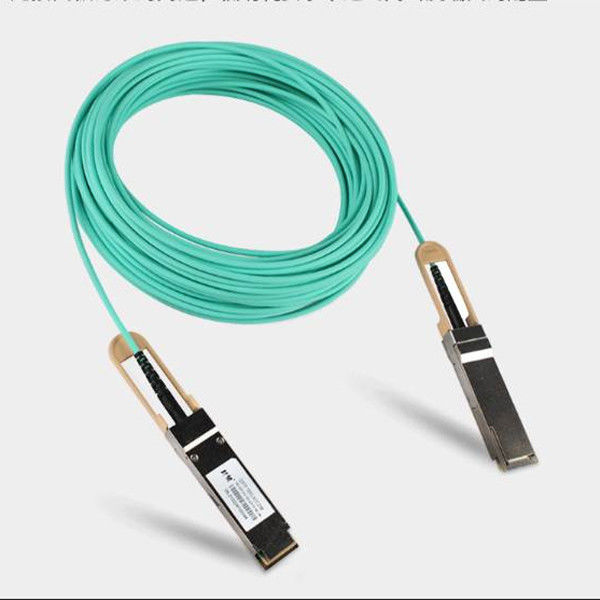

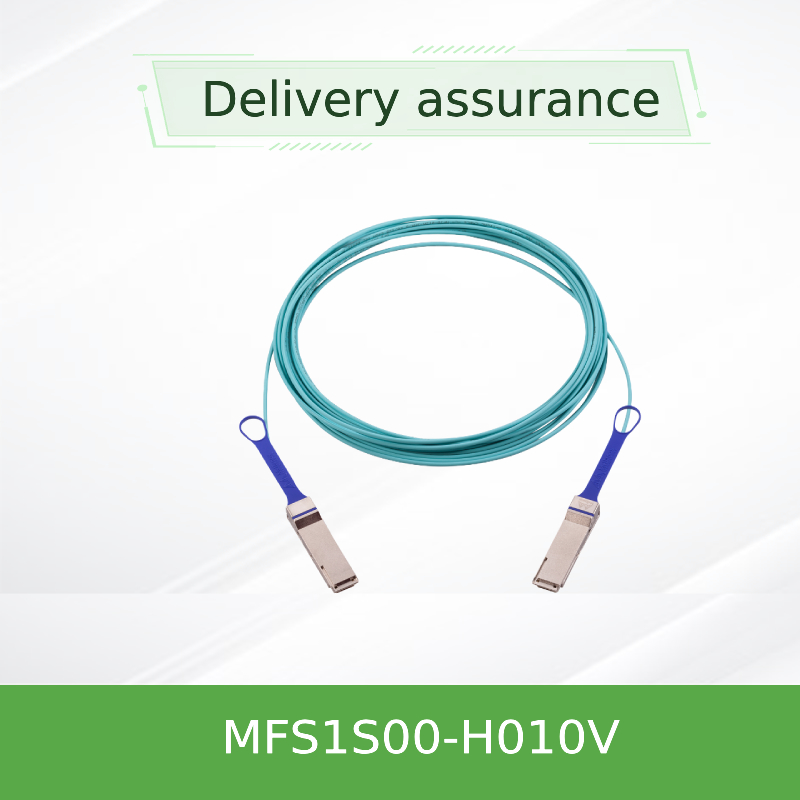

MFS1S00-H010V 200Gbps QSFP56 Active Optical Cable (AOC)

The NVIDIA® MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable designed for next-generation data centers and high-performance computing environments. It supports both InfiniBand HDR and 200 Gigabit Ethernet, delivering low-latency, high-bandwidth connectivity with exceptional power efficiency and reliability.

Key Features

• Supports 200Gb/s InfiniBand HDR and 200GbE
• 4x 50Gbps PAM4 modulation per lane
• Hot-pluggable QSFP56 form factor
• Low power consumption: 5.0W typical per end
• Up to 100m reach over multi-mode fiber
• Digital Diagnostic Monitoring (DDM) with real-time health reporting
• RoHS compliant and SFF-8636 management interface

Technology & Standards

This Optical Fiber Cable complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management), and InfiniBand HDR. It uses VCSEL-based optical technology for high-speed data transmission and supports programmable equalization and retiming for signal integrity.

How It Works

The AOC converts electrical signals into optical signals via integrated VCSEL transceivers. Data is transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Each lane operates at 50Gbps PAM4, aggregating to 200Gbps total bandwidth.

Applications

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• AI and machine learning infrastructure
• Cloud and enterprise networking
• Inter-switch links (e.g., NVIDIA SN3700, SN4600)

Specifications

Ordering Information

Advantages

• Higher bandwidth and lower latency compared to passive fiber cables
• Lower power consumption than equivalent DAC cables
• Hot-pluggable design for easy deployment and maintenance
• Robust diagnostic capabilities for proactive network management
• Interoperable with major switch and server platforms

Service & Support

We offer comprehensive technical support, 24/7 customer service, and worldwide shipping. All products come with a standard warranty and are tested for compatibility and performance.

FAQ

Q: Is this cable compatible with 100GbE switches?
A: Yes, it supports backward compatibility with 100GbE when used with appropriate rate selection.

Q: What is the difference between active and passive fiber cables?
A: Active Optical Cables like the MFS1S00 include signal processing electronics, enabling longer reaches and better signal integrity than passive fiber cables.

Q: Can I use this cable for outdoor deployment?
A: No, this cable is designed for indoor data center use only.

Precautions

• Do not bend beyond a 30mm radius.
• Avoid exposure to moisture and extreme temperatures.
• Use ESD protection during handling.
• Ensure compatible QSFP56 ports on host devices.
