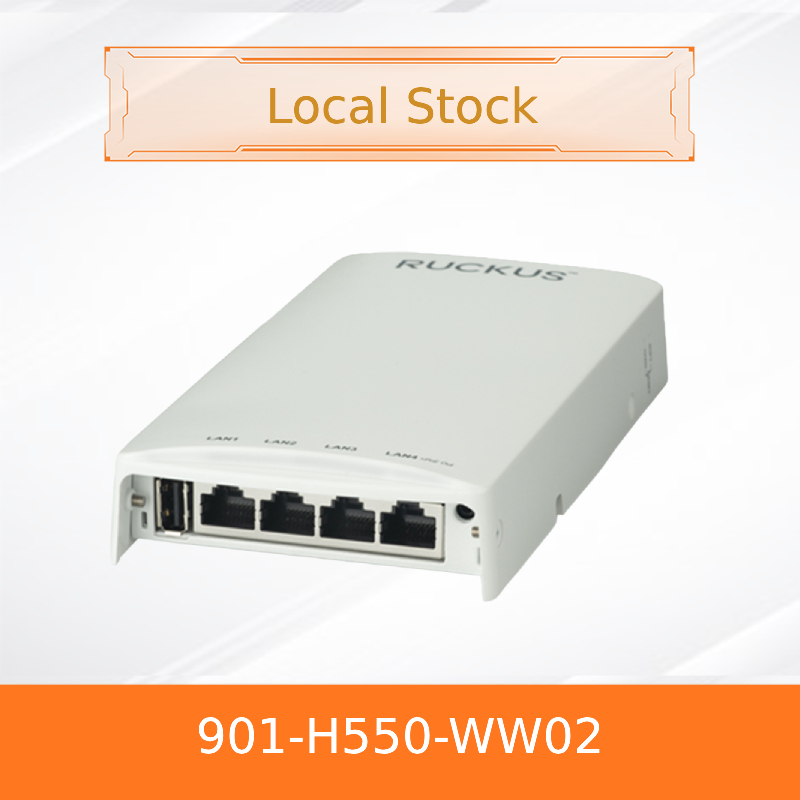

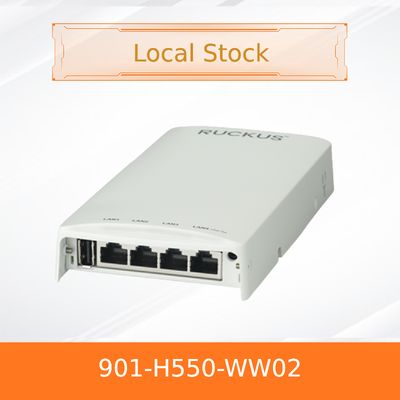

RUCKUS 901-H550-WW02 Wall-Mount Wi-Fi 6 Access Point with IoT and Switch 1.8 Gbps BeamFlex+
Product Details:
| Brand Name: | Ruckus |
| Model Number: | 901-H550-WW02 |
| Document: | ds-ruckus-h550-fr.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Wi-Fi Standards: | 802.11a/b/g/n/ac/ax | Max Data Rate: | 1.8 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
|---|---|---|---|
| Antenna Technology: | BeamFlex+ Adaptive Antenna | Ethernet Ports: | 1x GbE PoE In, 4x GbE (1x PoE Out) |
| IoT Radios: | BLE, Zigbee (simultaneous) | USB Port: | 1x USB 2.0 Type-A |

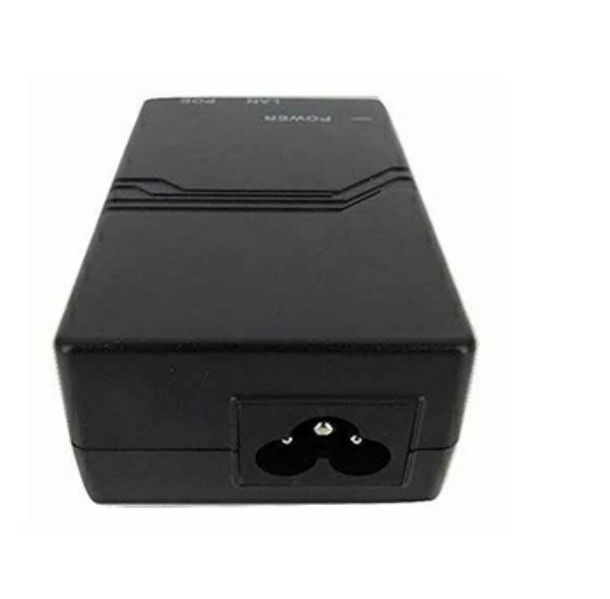

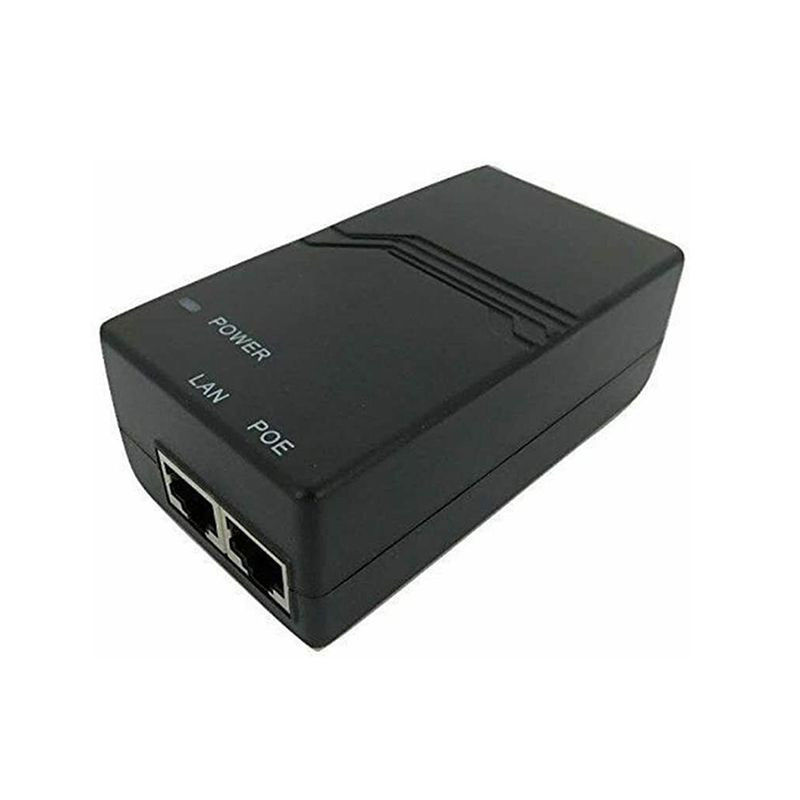

| Highlight: | Zoneflex Ruckus Wireless Controller,POE Ruckus Wireless Controller,Ruckus poe adapter 48v |
||
Product Description
The RUCKUS H550 (Model: 901-H550-WW02) is an all-in-one, wall-mount Wi-Fi 6 Access Point designed for high-density indoor environments such as hotels, dormitories, and multi-dwelling units. It combines dual-band Wi-Fi 6, integrated IoT radios (BLE and Zigbee), and a 4-port Gigabit Ethernet switch into a single, sleek device. This wireless Access Point delivers up to 1.8 Gbps data rates, supports up to 512 clients, and features advanced RF management technologies for superior coverage and performance.
- Wi-Fi 6 (802.11ax) with 2x2:2 MU-MIMO and up to 1.8 Gbps throughput
- Integrated Bluetooth Low Energy (BLE) and Zigbee radios for IoT connectivity
- Four Gigabit Ethernet ports including one PoE-out port
- BeamFlex+ adaptive antenna technology for optimized coverage
- ChannelFly dynamic channel management for reduced interference
- Support for up to 8 SSIDs per radio and multiple VLAN options
- Flexible management via cloud, on-prem controller, or controller-less mode
The H550 Access Point leverages RUCKUS-patented technologies including BeamFlex+ for real-time adaptive antenna pattern selection, ChannelFly for AI-driven channel optimization, and SmartCast for QoS and traffic prioritization. It supports Wi-Fi 6 standards including OFDMA, MU-MIMO, and 1024-QAM for efficient multi-user performance. The integrated IoT radios operate concurrently with Wi-Fi, enabling seamless connectivity for smart locks, sensors, and building automation systems.
The H550 Access Point uses intelligent antenna steering to direct RF signals toward each client device on a per-packet basis, minimizing interference and maximizing throughput. It continuously scans the RF environment to select the least congested channels automatically. The built-in switch allows wired devices like IP phones, IPTV set-top boxes, and networked appliances to connect directly, reducing cabling and simplifying room-level convergence.
Ideal for hospitality, education, and multi-tenant residential deployments, the H550 supports converged services including high-speed internet, VoIP, IPTV, and IoT applications. Its wall-mount design fits standard electrical junction boxes, making it easy to install in guest rooms, apartments, or dormitories without additional wiring.
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max Data Rate | 1.8 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Antenna Technology | BeamFlex+ Adaptive Antenna |
| Ethernet Ports | 1x GbE PoE In, 4x GbE (1x PoE Out) |
| IoT Radios | BLE, Zigbee (simultaneous) |
| USB Port | 1x USB 2.0 Type-A |
| Max Clients | 512 per Access Point |
| Power Consumption | 12.54W – 32.21W (depending on mode) |
| Dimensions | 89.5mm x 178.5mm x 29.3mm |
| Mounting | Wall-mounted, standard electrical box |
- Superior coverage and capacity with BeamFlex+ and ChannelFly
- Converged wired and wireless connectivity reduces infrastructure cost
- Future-ready with Wi-Fi 6 and integrated IoT support
- Flexible deployment and management options
- High client density support ideal for hospitality and MDUs
We offer lifetime limited warranty, 24/7 technical support, and global shipping. Our professional team provides pre-sales consultation and post-sales integration services to ensure seamless deployment.
Q: How many clients can the H550 support?
A: The H550 wireless Access Point supports up to 512 clients per unit.
Q: Does it support mesh networking?
A: Yes, it supports RUCKUS SmartMesh technology for easy deployment.
Q: Can I use the USB port for additional radios?
A: Yes, the USB port supports optional radio modules for extended IoT protocols.
Q: What power options are available?
A: It supports 802.3af/at PoE, UPOE, and optional power adapters.
- Ensure proper ventilation and operating temperature (0°C to 40°C)
- Use certified PoE injectors or switches for power delivery
- Verify regional compliance for frequency bands and power levels
- Avoid mounting in areas with high electromagnetic interference
