RUCKUS network switch ICX 7550-24P Enterprise Stackable Switch
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX 7550-24P |
| Document: | RUCKUS ICX 7550 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Type: | Switch | Ports: | 48 |
|---|---|---|---|
| Condition: | Original | Uplinks: | 2 X 40G QSFP+ |
| PoE Budget: | 1900W (with Dual PSUs) | PoE Standard: | 802.3at (30W/port) |
| Highlight: | ICX7150 Ruckus Network Switch,48 port Ruckus Network Switch,ICX7150 ruckus 48 port poe switch |
||
Product Description

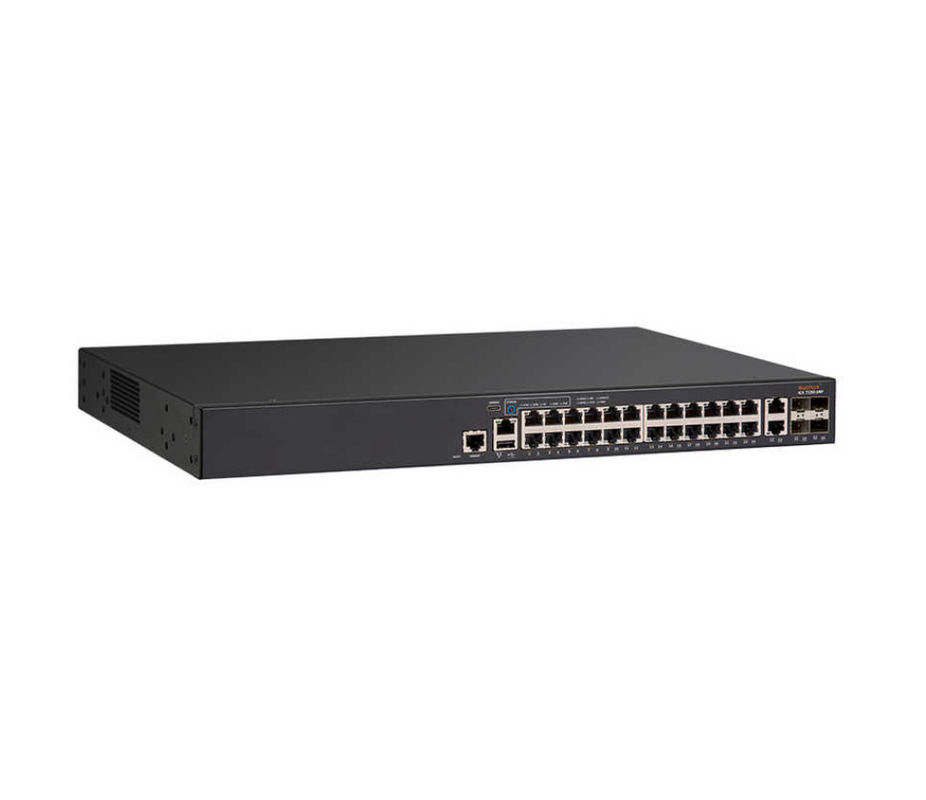

RUCKUS ICX 7550-24P Enterprise Stackable Switch
Product Overview
The RUCKUS ICX 7550-24P is a high-performance, stackable Gigabit Ethernet switch designed for enterprise access and aggregation layers. It delivers 24 ports of Gigabit Ethernet with PoE+ support, offering up to 30W per port and a total PoE budget of 1900W. With advanced Layer 3 routing, high availability features, and flexible uplink options, this switch is ideal for modern Wi-Fi deployments, IoT networks, and smart building applications.
Key Features
- 24 x Gigabit Ethernet ports with PoE+ (802.3at)
- Up to 1900W PoE budget with dual power supplies
- Perpetual PoE and Fast Boot PoE for uninterrupted power
- 2 x 40G QSFP+ uplink/stacking ports

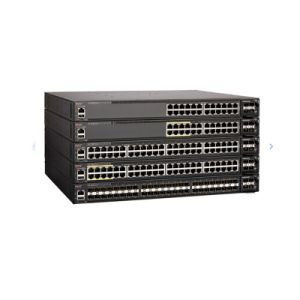

- Stackable with up to 12 units (288 ports per stack)
- Advanced Layer 3 routing (BGP, OSPF, VRRP with license)
- MACsec encryption for enhanced security
Core Technologies
The RUCKUS ICX 7550 supports a wide range of enterprise-grade protocols and standards, including:
- IPv4/IPv6 Routing (RIP, OSPF, BGP)
- MACsec (128/256-bit encryption)
- sFlow for traffic monitoring
- OpenFlow 1.3 for SDN integration
- LLDP, QoS, VRF, and PIM
How It Works
The ICX 7550-24P operates as a standalone or stacked unit, using virtual switching technology to behave like a single chassis. It supports hitless failover, in-service software upgrades (ISSU), and redundant power and cooling. PoE devices remain powered during reboots thanks to Perpetual PoE technology.
Typical Applications
- Enterprise campus access layer
- Wi-Fi 6/7 access point connectivity
- IoT and smart building deployments
- VoIP and video surveillance systems
- Medium-density aggregation networks
Specifications
| Feature | Specification |
|---|---|
| Ports | 24 x 10/100/1000 Mbps RJ45 PoE+ |
| Uplinks | 2 x 40G QSFP+ |
| PoE Budget | 1900W (with dual PSUs) |
| PoE Standard | 802.3at (30W/port) |
| Switching Capacity | 368 Gbps |
| Forwarding Rate | 274 Mpps |
| Power Supplies | Dual hot-swappable, 1200W AC |
| Stacking | Up to 12 units, 10km distance |
| Dimensions (HxWxD) | 1.73" x 17.32" x 16" |
| Weight | 14.86 lb (6.74 kg) |
Advantages
- High PoE density with 1900W budget supports power-hungry devices
- Stacking without dedicated modules reduces TCO
- Advanced L3 features enable routing at the edge
- MACsec provides hardware-level encryption
- Unified management via SmartZone, Cloud, or Unleashed
Service & Support
All RUCKUS ICX 7550 switches come with a limited lifetime warranty. We offer 90-day technical support with optional extended support contracts. Our team provides 24/7 consultation and technical assistance to ensure seamless integration and operation.
Frequently Asked Questions
Q: What is the maximum PoE power per port?
A: Each port supports up to 30W with IEEE 802.3at (PoE+).
Q: Can I mix different ICX 7550 models in a stack?
A: Yes, all ICX 7550 series switches can be stacked together.
Q: Does the switch support Layer 3 BGP routing?
A: Yes, with the premium software license.
Q: What management options are available?
A: SmartZone, RUCKUS Cloud, or Unleashed for controllerless setups.
Precautions
- Ensure adequate airflow and operating temperature (0°C to 45°C)
- Use compatible RUCKUS optics and power supplies
- Verify PoE load calculations to avoid overloading the power budget
- Follow ESD safety procedures during installation
