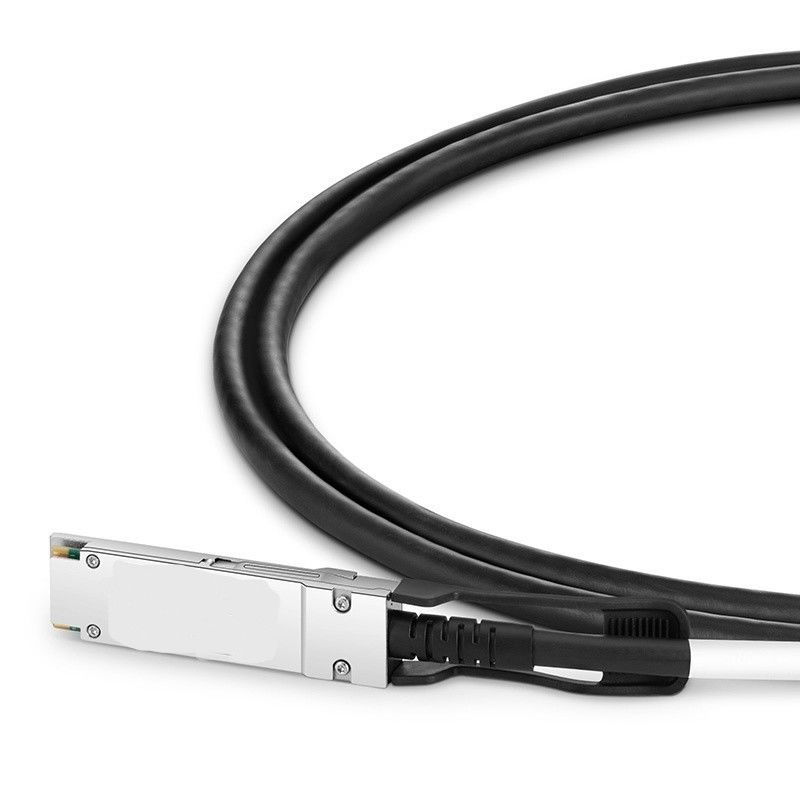

TAA Breakout Mellanox DAC Cable MC2309130-003 10GBase-CU QSFP+ To SFP+ 3M
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MC2309130-003 |
| Document: | MC2309130.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Technology: | Ethernet |
| Lead Time: | According To Stock | Length: | 3M |
| Voltage: | 30VAC (rms) Or DC | Operating Temperature: | 0°C To 70°C |
| Highlight: | TAA Mellanox DAC Cable,10GBase-CU Mellanox DAC Cable,TAA qsfp+ dac breakout cable |
||
Product Description

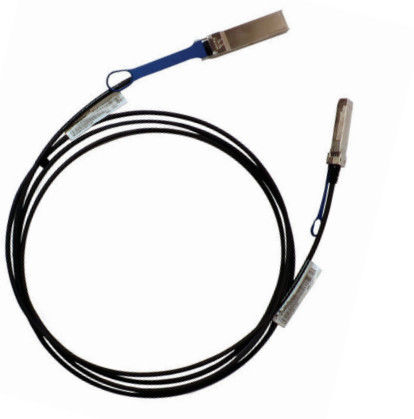

LinkX™ Hybrid Passive Copper Cable QSFP to SFP+ | MC2309130-003
1. Product Overview
The Mellanox LinkX™ MC2309130-003 is a high-performance hybrid passive copper cable designed to provide reliable and cost-effective 10Gb/s connectivity between QSFP and SFP+ ports. This passive fiber cable alternative is engineered for data center and enterprise networking environments where power efficiency, signal integrity, and durability are critical. It supports a maximum reach of 3 meters and is built to meet rigorous industry standards.
2. Key Characteristics
- Compliant with SFF-8431 and SFF-8436 specifications
- Supports data rates up to 10.5 Gb/s per lane
- Low power consumption compared to active optical cables
- Secure latching mechanism for stable connections
- RoHS-5 compliant and backed by a 1-year warranty
3. Technology & Standards
This hybrid passive copper cable incorporates advanced signal processing technology to ensure minimal insertion loss and crosstalk. It complies with InfiniBand architecture, QSFP MSA (SFF-8436), and SFP+ MSA (SFF-8431) standards. The cable is 100% tested on Mellanox adapters and switches for guaranteed compatibility.
4. Working Principle
The passive copper cable operates by transmitting electrical signals directly between the QSFP and SFP+ connectors without signal amplification. This results in lower power consumption and reduced heat generation compared to active optical cables. The impedance-matched design ensures signal integrity across the full 3-meter length.
5. Applications
Ideal for data center interconnects, high-performance computing (HPC), storage area networks (SANs), and enterprise networking. Commonly used with Mellanox switches, adapters, and compatible third-party devices supporting QSFP and SFP+ interfaces.
6. Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Reach @ 10Gb/s | 3 | m |
| AWG | 30 | - |
| Data Rate per Lane | 1.0 - 10.5 | Gb/s |
| Operating Temperature | 0 to 70 | °C |
| Cable Diameter | 4.5 | mm |
7. Advantages
- Lower power consumption than active fiber cables
- Superior signal integrity with BER < 10⁻¹⁵
- Cost-effective solution for short-range connections
- Serialized ends for easy identification and tracking
8. Service & Support
All LinkX cables come with a 1-year limited warranty covering repair or replacement. We offer 24/7 customer support and technical consultation. Bulk orders are supported with competitive pricing and fast delivery.
9. Frequently Asked Questions
Q: Is this cable compatible with non-Mellanox devices?
A: Yes, it is compliant with industry standards and tested for broad compatibility.
Q: What is the maximum supported data rate?
A: The cable supports up to 10.5 Gb/s per lane.
Q: Can the cable be used in high-temperature environments?
A: It operates reliably in temperatures from 0°C to 70°C.
10. Precautions
- Avoid bending beyond the minimum sustained bend radius of 25 mm.
- Ensure connectors are clean and securely latched.
- Do not expose to voltages exceeding 300V.
- Store in environments between -10°C and 75°C.
