40Gb QSFP+ Mellanox DAC Direct Attach Cable MC2210310-005 5M
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MC2210310-005 |
| Document: | MC2210310.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Technology: | Ethernet |
| Lead Time: | According To Stock | Length: | 5M |
| Diameter: | Option 1: 3.3mm; Option 2: 3.0mm | Minimum Bend Radius: | 35 |
| Highlight: | 40Gb direct attach cable,QSFP+ direct attach cable,QSFP+ 40gb dac cable |
||
Product Description

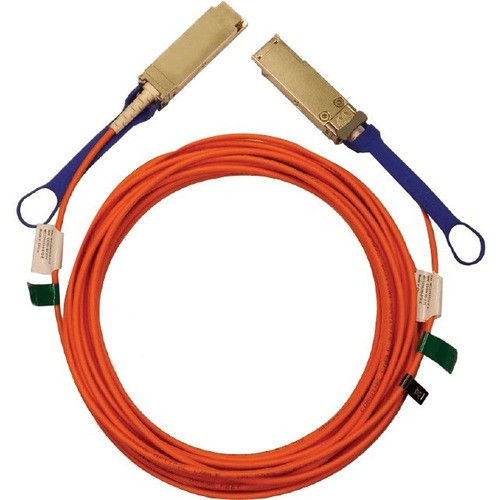

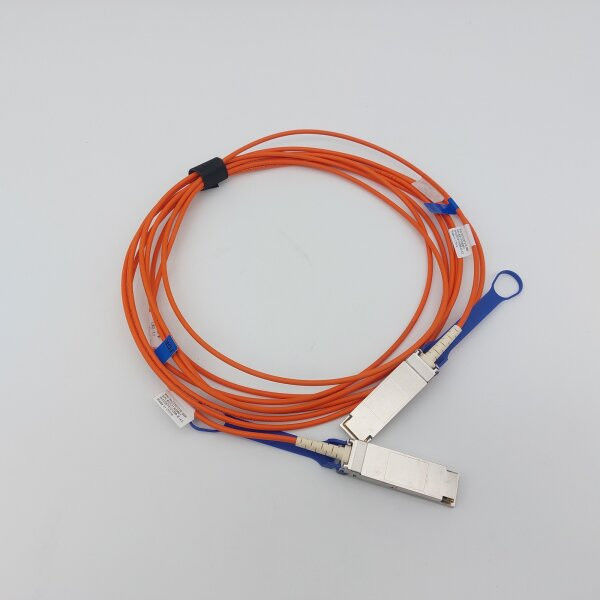

Mellanox MC2210310-005 40GbE QSFP+ Active Optical Cable
1. Product Overview
The Mellanox MC2210310-005 is a high-performance QSFP+ Active Optical Cable (AOC) designed for 40 Gigabit Ethernet applications. It utilizes VCSEL-based transceivers and multi-mode fiber to deliver reliable, high-speed data transmission over distances up to 5 meters. This optical fiber cable solution is ideal for data centers requiring high port density, low power consumption, and hot-pluggable convenience.
2. Key Characteristics
- Data rate up to 40 Gb/s (4x10.3125 Gb/s)
- Low power consumption: 0.8W typical
- Hot-pluggable QSFP+ form factor
- Class 1 laser product compliant
- RoHS and Plenum (OFNP) rated
- Up to 100m support with multi-mode fiber
3. Technology & Standards
The MC2210310-005 complies with IEEE 802.3ba 40GbE, SFF-8685, SFF-8436, and SFF-8636 standards. It uses VCSEL technology and passive fiber cable principles in an active integrated assembly for superior signal integrity and durability.
4. Working Principle
The AOC converts electrical signals into optical signals via VCSEL transmitters, transmits them over multi-mode optical fiber cable, and converts them back to electrical signals at the receiving end. This enables high-speed, low-latency, and low-power data transmission without signal degradation.
5. Applications
- Data center interconnects
- High-performance computing (HPC)
- Enterprise networking
- Cloud infrastructure
- Storage area networks (SANs)
6. Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 40 | Gb/s |
| Length | 5 | m |
| Power Consumption | 0.8 | W |
| Operating Temperature | 0 to 70 | °C |
| Fiber Type | OM3 Multi-Mode | - |
| Connector | QSFP+ | - |
7. Advantages
- Lower latency and higher bandwidth compared to copper cables
- Lightweight and flexible for easy cable management
- Better EMI immunity and security
- Compatible with major switch and NIC brands
8. Service & Support
We offer a 1-year limited warranty, 24/7 technical support, and global shipping. Bulk orders are supported with competitive pricing and fast delivery.
9. FAQ
Q: Is this AOC compatible with Cisco/Juniper/switches?
A: Yes, it is compatible with any QSFP+ port that supports 40GbE standards.
Q: What is the difference between active and passive fiber cable?
A: Active optical cables include embedded optics for longer reach and better performance, while passive fiber cables rely solely on the host equipment.
Q: What is the maximum distance supported?
A: Up to 100m with OM3/OM4 multi-mode fiber.
10. Precautions
- Avoid bending beyond 35mm radius
- Ensure clean connectors to avoid signal loss
- Operate within specified temperature and voltage ranges
- Use ESD protection during handling
