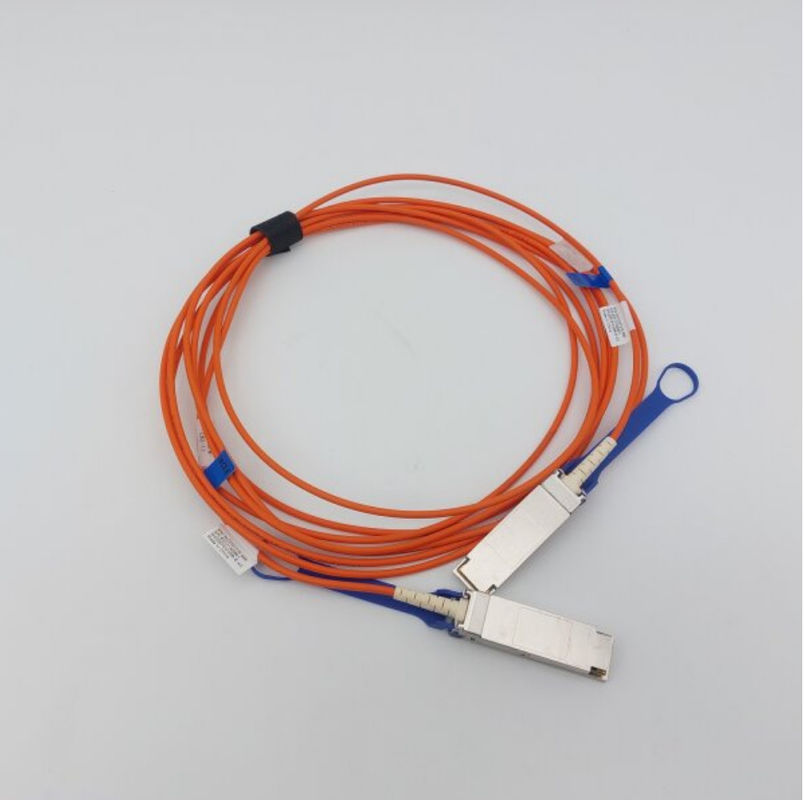

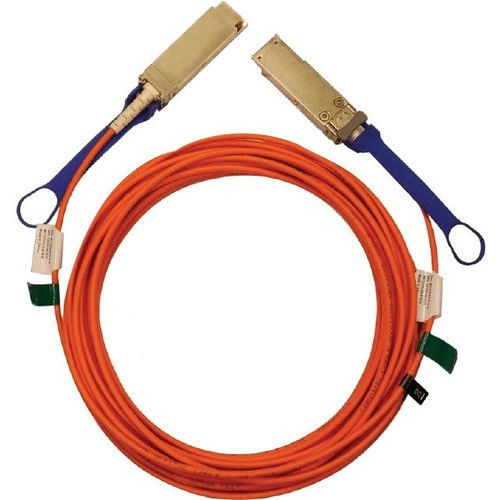

Mellanox MC2210310-015 40GbE QSFP+ Active Optical Cable

1. Product Overview

The Mellanox MC2210310-015 is a high-performance QSFP+ Active Optical Cable (AOC) engineered for 40 Gigabit Ethernet infrastructure. Leveraging VCSEL-based transceivers and premium multi-mode fiber, this solution guarantees reliable, high-bandwidth data transmission over extended distances of up to 15 meters. This optical fiber cable is specifically designed for modern data centers that demand exceptional port density, energy efficiency, and seamless hot-swap capability.

2. Key Characteristics

• Aggregate data rate of 40 Gb/s (4x10.3125 Gb/s)
• Optimized power consumption: 0.8W typical
• Hot-pluggable QSFP+ form factor for easy installation
• Class 1 laser product for enhanced safety
• Compliant with RoHS and Plenum (OFNP) ratings
• Supports lengths up to 100m using multi-mode fiber

3. Technology & Standards

The MC2210310-015 adheres to industry standards including IEEE 802.3ba 40GbE, SFF-8685, SFF-8436, and SFF-8636. It incorporates VCSEL technology and principles found in high-quality passive fiber cable designs within an active, integrated assembly to ensure superior signal integrity, minimal latency, and long-term reliability.

4. Working Principle

This AOC operates by converting electrical signals into optical signals using integrated VCSEL transmitters. These signals are then transmitted through a high-quality multi-mode optical fiber cable. At the receiving terminus, the optical signals are converted back into electrical signals. This process enables high-speed, low-latency data transfer with significantly reduced power requirements and immunity to electromagnetic interference.

5. Applications

• Data center spine-leaf architecture interconnects
• High-performance computing (HPC) clusters
• Enterprise network aggregation and backbone links
• Large-scale cloud service provider infrastructure
• Storage area networks (SANs) and network-attached storage (NAS)

6. Specifications

7. Advantages

• Significantly lower latency and higher bandwidth compared to traditional passive copper alternatives
• Reduced weight and increased flexibility simplify cable management and improve airflow
• Superior immunity to electromagnetic interference (EMI) enhances signal integrity
• Broad compatibility with major switch, router, and NIC brands offering QSFP+ ports
• This specific optical fiber cable model provides an ideal 15-meter reach for common data center rack-to-rack connections.

8. Service & Support

This product is backed by a 1-year limited hardware warranty. We provide comprehensive 24/7 technical support and reliable global shipping options. Bulk and OEM orders are welcomed, featuring highly competitive pricing and guaranteed fast turnaround times.

9. FAQ

Q: Is the Mellanox MC2210310-015 compatible with Arista, Juniper, or HPE switches?
A: Yes, it is designed to be fully compatible with any network device featuring a standard QSFP+ port that supports 40GbE protocols.

Q: What is the primary functional difference between an active optical cable and a passive fiber cable?
A: An Active Optical Cable (AOC) like the MC2210310 has embedded optics and electronics that amplify the signal, enabling longer reaches and better performance without sacrificing the simplicity of a cable. A passive fiber cable lacks these components and relies entirely on the host equipment's transceivers, limiting its effective distance.

Q: What is the maximum operational distance for this 15m AOC?
A: This specific model is a 15-meter cable. The MC2210310 series supports distances up to 100m when using OM3 or OM4 multi-mode fiber infrastructure.

Q: Does this AOC require any specific drivers?
A: No, it is typically plug-and-play. It operates at the physical layer and does not require special drivers for basic functionality.

10. Precautions

• Do not bend the cable beyond its minimum bend radius of 35mm to prevent internal fiber damage.
• Ensure connector end-faces are clean and free of dust to avoid signal degradation and physical damage.
• Always operate within the specified environmental conditions: 0°C to 70°C case temperature and -10°C to 70°C storage temperature.
• Observe proper ESD (Electrostatic Discharge) precautions during handling and installation.
• Verify compatibility with your specific host system before purchase, as with any optical fiber cable.
