Active Optical Mellanox AOC Splitter Cable MFA2P10-A005 25GbE SFP28

Active Optical Mellanox AOC Splitter Cable MFA2P10-A005 25GbE SFP28

Active Optical Mellanox AOC

25GbE SFP28 Mellanox AOC

25GbE SFP28 mellanox splitter cable

Brand Name:

Mellanox

Model Number:

MFA2P10-A005

CONTACT US

Request A Quote
Product Details
Availability:
Stock
Warranty:
1 Year
Condition:
New And Original
Lead Time:
According To Stock
Technology:
Ethernet
Max Speed:
25GbE
Length:
5M
Connector Type:
SFP28
Product Description

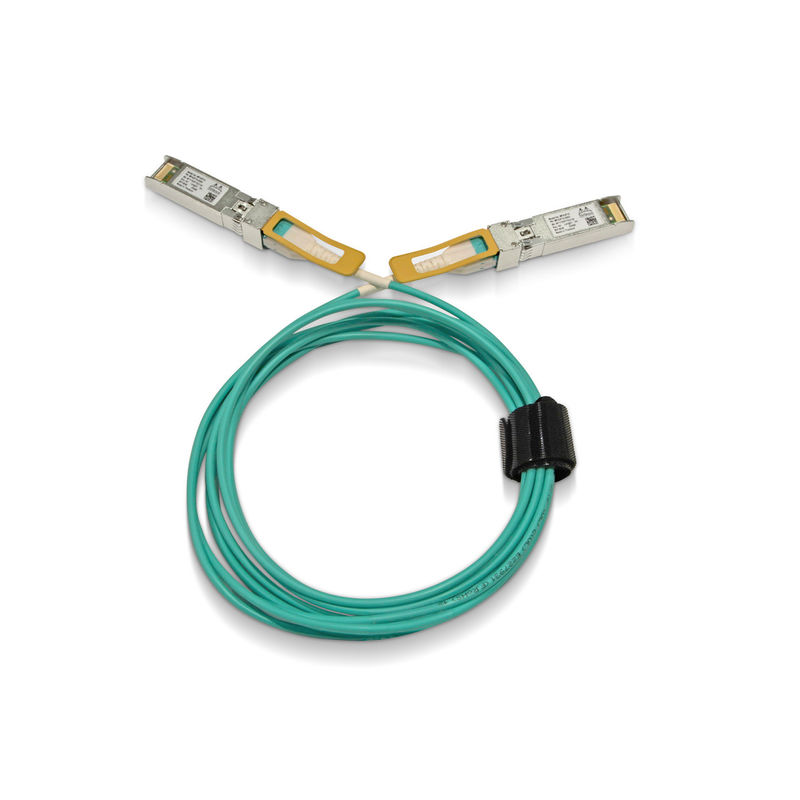

25GbE SFP28 Active Optical Cable

MFA2P10-Axxx and SFP25G-AOCxxM-TG are SFP28 Active Optical Cables (AOC) designed for use in 25GbE Ethernet systems. These AOCs incorporate Mellanox integrated circuit technology in order to provide high performance at low power.

The AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

The AOC has a standard SFF-8402 compliant SFP28 port on the electrical side towards the host system. It contains one fiber optic transceiver per end, operating at data rates of up to 25Gb/s.

The AOC offers selectable retiming for both its optical transmitter and receiver for the 25Gb/s rate, but it also supports lower bit rates without retiming. The transmitter has programmable input equalizers and input squelch function, while the receiver has programmable output amplitude and pre-emphasis.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Highlights

  • 0.5W power consumption (typ, each end with retiming)
  • Programmable Tx input equalizer
  • Selectable retiming
  • SFF-8402 compliant
  • 3.3V power supply
  • SFP28 power level 1
  • Low BER
  • Hot pluggable
  • RoHS compliant
  • IEEE 802.3 25GBASE-SR compliant
  • IEEE 802.3 10GBASE-SR compliant
  • SFF-8472 compliant I2C management interface
  • 25G to 10G rate selection by turning off CDR

The NVIDIA® Mellanox® LinkX® product family of cables and transceivers provides the industry’s most complete line of 10, 25, 40, 50, 100, 200, and 400GbE in Ethernet and EDR, HDR, and NDR in InfiniBand products for Cloud, HPC, Web 2.0, Enterprise, telco, storage and artificial intelligence, data center applications.

LinkX cables and transceivers are often used to link top-of-rack switches downwards to network adapters in NVIDIA GPUs and CPU servers, and storage and/or upwards in switch-to-switch applications throughout the network infrastructure.


OPN Description
MFA2P10-A003 active optical cable 25GbE, SFP28, 3m
MFA2P10-A005 active optical cable 25GbE, SFP28, 5m
MFA2P10-A007 active optical cable 25GbE, SFP28, 7m
MFA2P10-A010 active optical cable 25GbE, SFP28, 10m
MFA2P10-A015 active optical cable 25GbE, SFP28, 15m
MFA2P10-A020 active optical cable 25GbE, SFP28, 20m
MFA2P10-A030 active optical cable 25GbE, SFP28, 30m
MFA2P10-A050 active optical cable 25GbE, SFP28, 50m
