Brand Name:
Mellanox
Model Number:
MFA1A00-C010
CONTACT US

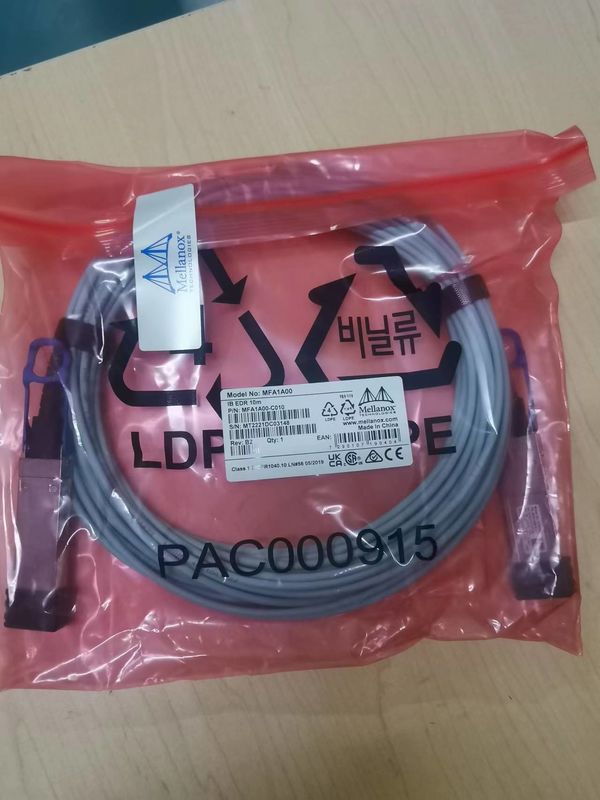

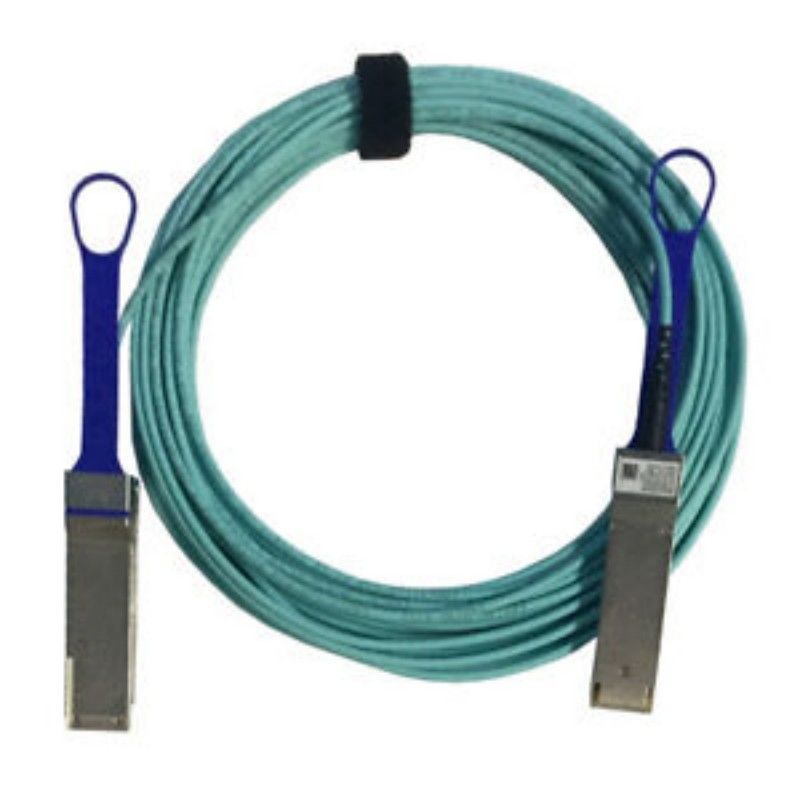

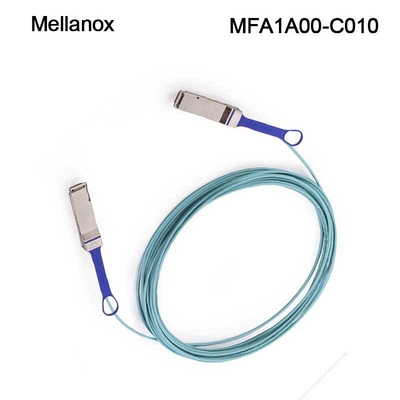

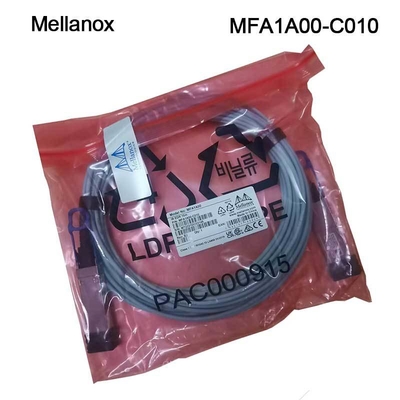

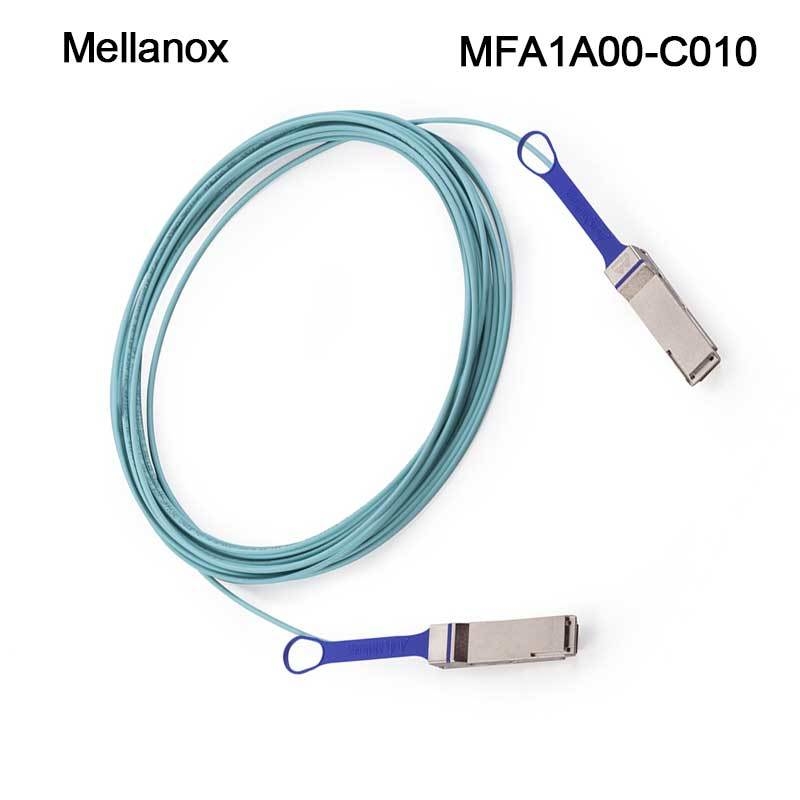

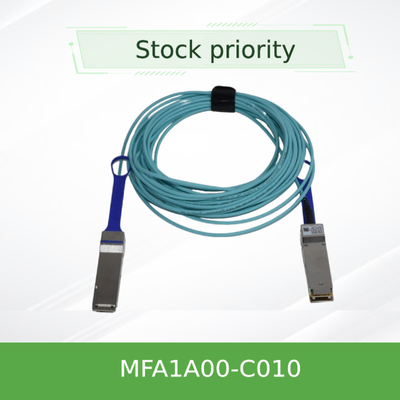

100Gb/s QSFP28 MMF Active Optical Cables
MFA1A00-Cxxx are QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables designed for use in 100Gb/s Ethernet systems.
MFA1A00-Cxxx AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 25Gb/s.
MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gbp/s rates, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.
Mellanox’s unique, quality, active, fiber, cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-ofthe-box installation experience, performance and durability.
Key Features
Reaches from 30-to 100 meters
Lowest-cost, lowest-power-consuming optical link
A complete cable assembly with no optical connectors
Available in the same configurations as DAC cables
Extensive 25/50/100/200/400G product offering for every need
Tested and certified in NVIDIA GPU, DGX™, EGX™, and DPU systems
Benefits
Thin fiber cable enables maximum air flow cooling
Light weight enables dense fiber runs with minimal support
No MPO optical connectors increases reliability and reduces maintenance
Designed and manufactured by LinkX Optics
100 percent factory tested in live switching and GPU-based systems
Designed to go beyond IEEE industry BER standards for reliable operation under harsh operating conditions
HIGHLIGHTS
–Up to 100Gb/s data rate
– 4x25G NRZ
– 2.2W power dissipation (typ, each end, with retiming)
– Programmable Rx output amplitude and pre-emphasis
– Programmable Tx input equalizer – Selectable retiming
– SFF-8665 compliant QSFP28 port
– Single 3.3V power supply
– BER better than 1E-15
– Up to 100m length
– Hot pluggable
– RoHS compliant
– SFF-8636 compliant I2 C management interface
OPN | Description |
MFA1A00-C003 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 3m |
MFA1A00-C005 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 5m |
MFA1A00-C010 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 10m |
MFA1A00-C015 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 15m |
MFA1A00-C020 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 20m |
MFA1A00-C030 | active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 30m |
