RUCKUS R350 Indoor Wi-Fi 6 Access Point CommScope 9U1-R350-WW02
Product Details:
| Brand Name: | Ruckus |
| Model Number: | 9U1-R350-WW02 |
| Document: | ds-ruckus-r350.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Product Family: | Ruckus Indoor APs | Application: | Wireless AP |
|---|---|---|---|
| Product Name: | 9U1-R350-WW02 | Condition: | Original |
| Wi-Fi Standards: | 802.11ax (Wi-Fi 6), 802.11ac/n/g/b/a | Bands: | Dual-band Concurrent: 2.4 GHz & 5 GHz |
| Highlight: | IPv4 Ruckus Wireless Access Points,IPv6 Ruckus Wireless Access Points,901-R710-WW00 |
||
Product Description

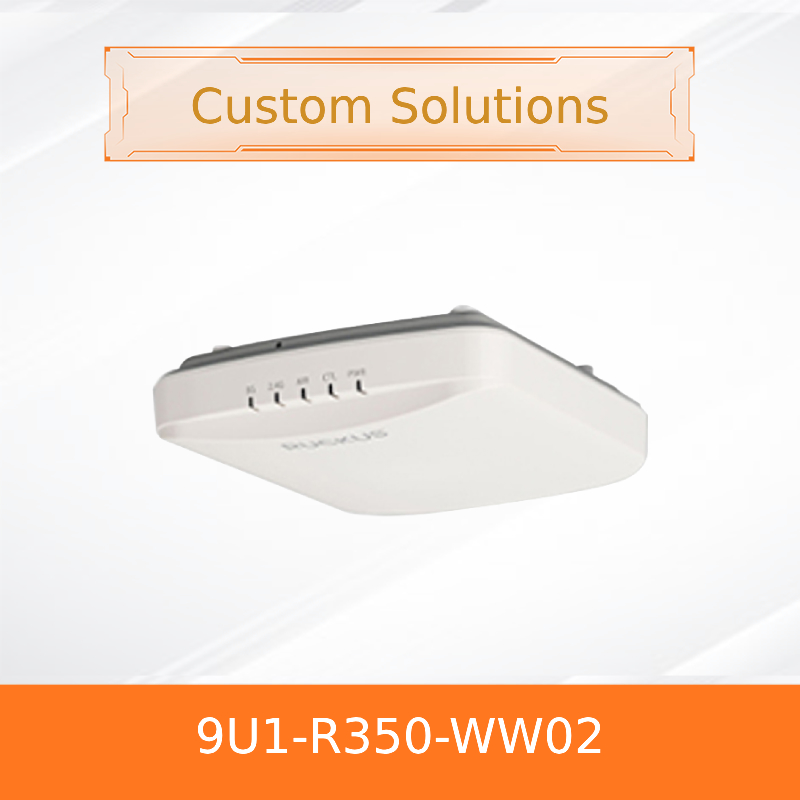

RUCKUS R350 Indoor Wi-Fi 6 Access Point
The RUCKUS R350 is a high-performance, dual-band Wi-Fi 6 (802.11ax) access point designed for small to medium-sized enterprises. It delivers reliable wireless connectivity, advanced RF management, and support for IoT technologies—all in a compact, affordable form factor.
Key Features
- Wi-Fi 6 (802.11ax) for improved efficiency and capacity
- BeamFlex® adaptive antenna technology for optimized coverage
- IoT-ready with optional USB module (BLE/Zigbee support)
- SmartMesh™ technology for self-forming, self-healing meshing
- Supports up to 256 clients and 16 SSIDs per access point
Technology Overview
The R350 leverages patented RUCKUS technologies including BeamFlex+ adaptive antennas and ChannelFly® dynamic channel selection to minimize interference and maximize throughput. It supports latest WPA3 security and operates seamlessly with existing PoE infrastructure.
How It Works
The access point uses real-time antenna pattern selection (up to 64 patterns per band) to direct RF signals specifically to each client device, reducing noise and improving signal integrity. It supports both standalone and controller-based deployments.
Typical Applications
Ideal for small offices, retail stores, restaurants, branch offices, and public hotspots where reliable, high-density Wi-Fi and future IoT integration are required.
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11ax (Wi-Fi 6), 802.11ac/n/g/b/a |
| Bands | Dual-band concurrent: 2.4 GHz & 5 GHz |
| Max PHY Rate | 1.774 Gbps |
| MIMO | 2x2:2 MU-MIMO |
| Ethernet Port | 1 x 1GbE (PoE supported) |
| USB Port | 1 x USB 2.0 (for IoT module) |
| Power Consumption | 12.62W (max with PoE) |
| Dimensions | 146 x 155.9 x 39.3 mm |
| Weight | 368g |
Advantages
- Superior coverage with BeamFlex adaptive antenna technology
- Future-proof with Wi-Fi 6 and IoT expansion capabilities
- Easy deployment with SmartMesh and multiple management options
- Cost-effective—works with existing CAT5e and PoE switches
Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation and post-sales integration support to ensure seamless deployment.
Frequently Asked Questions
Q: Does the R350 support mesh networking?
A: Yes, it supports RUCKUS SmartMesh technology for self-forming and self-healing wireless meshing.
Q: Can I use it without a controller?
A: Yes, the R350 can operate in standalone mode or with a virtual/cloud-based controller.
Q: Is the IoT module included?
A: The IoT module is optional and sold separately.
Precautions
- Ensure compatible PoE switch (802.3af/at) or use included power adapter
- Do not block ventilation openings during operation
- For plenum-rated environments, use appropriate mounting accessories
- Verify regional certification before deployment (e.g., -US, -WW, -ZZ)
