ExtremeWireless AP360e-WR Outdoor Wi-Fi 6 Access Point
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP360e-WR |
| Document: | ap360-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | AP360e-WR | Wi-Fi Standards: | 802.11a/b/g/n/ac/ax |
|---|---|---|---|
| MIMO: | 2x2:2 | Max Data Rate: | 1.2 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Ethernet Ports: | 2 X 10/100/1000 | PoE Support: | 802.3af (at Required For USB) |
| Highlight: | Outdoor omnidirectional dipole antenna,ML2452 omnidirectional dipole antenna,ML2452 omni dipole antenna |
||
Product Description

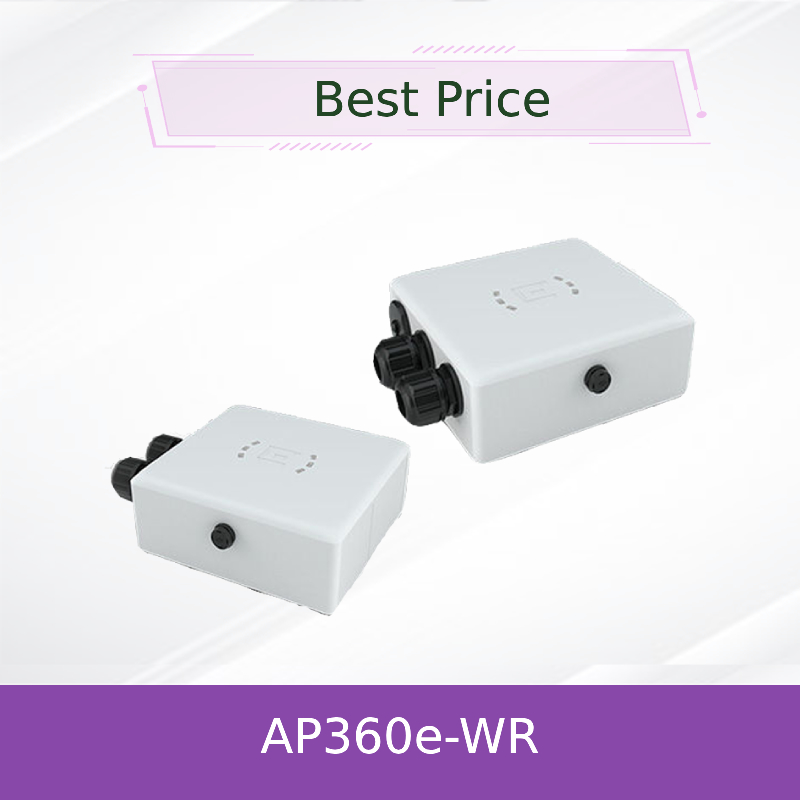

ExtremeWireless AP360e-WR Outdoor Wi-Fi 6 Access Point
1. Product Overview
The ExtremeWireless™ AP360e-WR is a high-performance, enterprise-grade outdoor Wi-Fi 6 (802.11ax) Access Point designed for demanding environments. Featuring external antenna options and software-selectable radios, this AP delivers flexible deployment, robust connectivity, and advanced RF management for outdoor high-density scenarios. It supports dual-band concurrent operation and is built to operate reliably in extreme weather conditions with an IP67 rating.
2. Key Characteristics
- Wi-Fi 6 (802.11ax) with 2x2:2 MU-MIMO in both 2.4 GHz and 5 GHz bands
- Software-selectable radio modes: Dual Band, Dual 5 GHz, or Sensor mode
- Integrated Bluetooth Low Energy (BLE) and GPS for location-based services
- IP67-rated enclosure for harsh outdoor environments
- Supports WPA3 security and stateful L2–L7 firewall
- Cloud or on-premises management via ExtremeCloud™ IQ or appliance controllers
3. Core Technologies
The AP360e-WR leverages Wi-Fi 6 technologies including OFDMA, MU-MIMO, 1024-QAM, and BSS Coloring for improved efficiency and capacity. It also supports legacy standards such as 802.11a/b/g/n/ac. Bluetooth 5.0 and IEEE 802.15.4 are integrated for IoT connectivity and location tracking.
4. Operational Principle
The Access Point uses two dual-band radios that can be configured via software to operate in multiple modes—simultaneous dual-band, dual 5 GHz, or with one radio dedicated to sensing. This allows network administrators to optimize spectrum usage based on real-time environmental conditions and client demand.
5. Applications & Usage
Ideal for outdoor and industrial settings including:
- University campuses and stadiums
- Smart city infrastructure
- Logistics and transportation hubs
- Manufacturing and warehousing
- Hospitality and outdoor venues
6. Specifications
| Attribute | Specification |
|---|---|
| Model | AP360e-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| MIMO | 2x2:2 |
| Max Data Rate | 1.2 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Ethernet Ports | 2 x 10/100/1000 |
| PoE Support | 802.3af (at required for USB) |
| Bluetooth | BLE 5.0 |
| GPS | Integrated |
| Antenna Type | External (5x N-type connectors) |
| Operating Temperature | -40°C to 60°C |
| Ingress Protection | IP67 |
7. Advantages & Selling Points
The AP360e-WR stands out with its software-defined radio flexibility, outdoor durability, and support for modern Wi-Fi 6 features. Compared to previous generations, it offers better throughput, improved battery life for IoT devices, and enhanced management through AI-driven insights via ExtremeCloud IQ.
8. Service & Support
All Extreme Access Points come with a 1-year warranty. Our company provides 24/7 customer support and technical consultation. We ensure timely delivery and supply chain reliability with large inventory availability.
9. Frequently Asked Questions
Q: Does the AP360e-WR support mesh networking?
A: Yes, it supports mesh functionality when managed through ExtremeCloud IQ or compatible controllers.
Q: Can I use the AP360e in bridge mode?
A: Yes, it supports point-to-point and point-to-multipoint bridging configurations.
Q: Is the power supply included?
A: No, a PoE injector or switch supporting 802.3af/at is required.
10. Precautions
- Ensure proper grounding and lightning protection for outdoor installation.
- Use only compatible Extreme Networks external antennas.
- Do not block ventilation openings; ensure clear airflow.
- Verify country-specific RF regulations before deployment.
