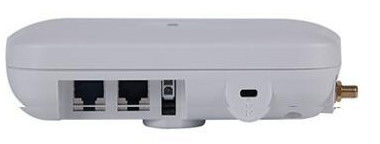

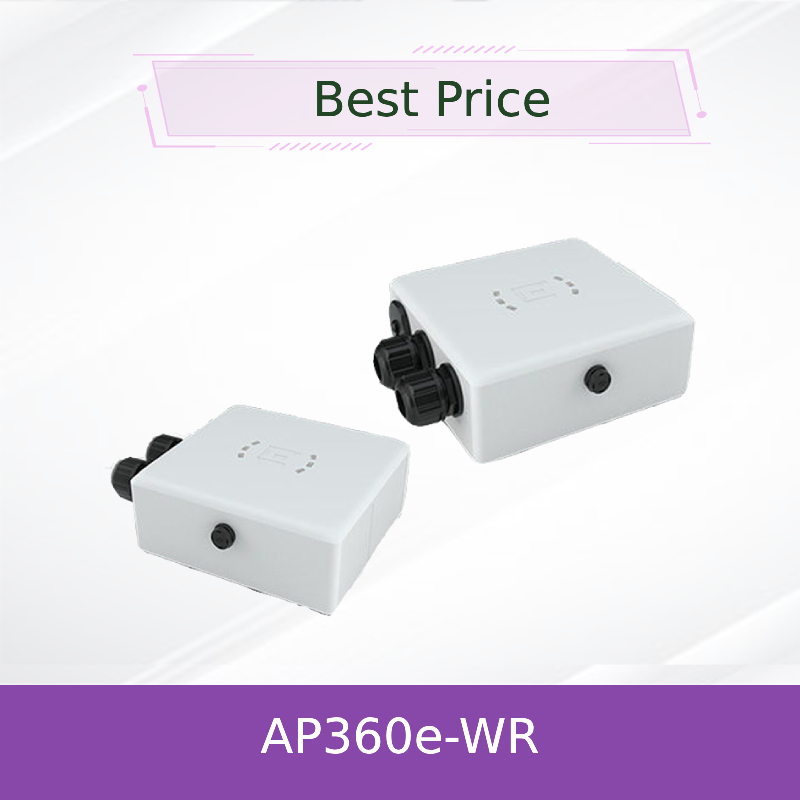

Extreme Networks AP360e-WR Outdoor Wi-Fi 6 Access Point With External Antennas
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP360e-WR |
| Document: | ap360-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Product Model: | AP360e-WR | Wireless Standards: | 802.11a/b/g/n/ac/ax |
|---|---|---|---|
| MIMO Configuration: | 2x2:2 | Maximum Data Rate: | 1.2 Gbps (5GHz), 574 Mbps (2.4GHz) |
| Ethernet Interfaces: | 2 X Gigabit Ethernet (10/100/1000) | ||
| Highlight: | AP6521E extreme networks ap,4920MHz extreme networks ap,AP6521E AP |
||
Product Description
Extreme Networks AP360e-WR Outdoor Wi-Fi 6 Access Point With External Antennas
Product Overview
The Extreme Networks AP360e-WR is a robust outdoor wireless access point designed to deliver high-performance Wi-Fi 6 connectivity in challenging environments. This enterprise-grade AP features external antenna connectors for flexible deployment options and supports dual-band concurrent operation with software-defined radio flexibility. Built to IP67 standards, it withstands extreme weather conditions while providing reliable connectivity for high-density outdoor applications.
Key Features
- Wi-Fi 6 (802.11ax) technology with 2x2 MU-MIMO in both 2.4GHz and 5GHz bands
- Software-selectable radio modes including Dual Band, Dual 5GHz, and Sensor operation
- Integrated Bluetooth 5.0 and GPS for advanced location services and IoT connectivity
- IP67-rated enclosure for protection against harsh outdoor elements
- WPA3 security protocol with stateful L2-L7 firewall capabilities
- Flexible management through ExtremeCloud IQ or on-premises controllers
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | AP360e-WR |
| Wireless Standards | 802.11a/b/g/n/ac/ax |
| MIMO Configuration | 2x2:2 |
| Maximum Data Rate | 1.2 Gbps (5GHz), 574 Mbps (2.4GHz) |
| Ethernet Interfaces | 2 x Gigabit Ethernet (10/100/1000) |
| Power over Ethernet | 802.3af compliant (802.3at required for USB functionality) |
| Bluetooth Technology | BLE 5.0 with IEEE 802.15.4 support |
| GPS Capability | Integrated GPS with 2.5-3m accuracy |
| Antenna Configuration | External (5 N-type connectors) |
| Operating Temperature | -40°C to 60°C |
| Ingress Protection | IP67 certified |
Advanced Technologies
This advanced Access Point implements Wi-Fi 6 technologies including Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User MIMO (MU-MIMO), and 1024-QAM modulation for enhanced network efficiency and capacity. It maintains backward compatibility with previous Wi-Fi standards while incorporating Bluetooth Low Energy for IoT device connectivity and location-based services.
Operational Methodology
The AP360e-WR utilizes two dual-band radios that can be dynamically configured through software to operate in various modes, including simultaneous dual-band operation, dual 5GHz channels, or with one radio dedicated to RF monitoring. This flexibility allows network administrators to optimize spectrum utilization based on real-time environmental conditions and client demands.
Application Environments
This outdoor Access Point is ideally suited for:
- Educational campus outdoor coverage
- Stadiums and large public venues
- Smart city infrastructure deployments
- Industrial and manufacturing facilities
- Transportation hubs and logistics centers
- Hospitality outdoor areas and resorts
Competitive Advantages
The AP360e-WR distinguishes itself through its software-defined radio flexibility, ruggedized outdoor design, and comprehensive support for modern Wi-Fi 6 features. Compared to previous generation Access Points, it delivers superior throughput performance, improved power efficiency for connected devices, and enhanced network management through AI-driven analytics via ExtremeCloud IQ.
Service and Support
All Extreme Networks Access Points include a standard 1-year warranty. Our company provides round-the-clock customer support and technical consultation services. We maintain significant inventory levels to ensure reliable supply chain continuity and timely delivery for all orders.
Frequently Asked Questions
Q: What management options are available for the AP360e-WR?
A: The Access Point can be managed through ExtremeCloud IQ for cloud-based management or through ExtremeCloud Appliance, VX, or NX controllers for on-premises deployments.
Q: Can this AP support mesh networking configurations?
A: Yes, the AP360e-WR supports mesh functionality when managed through ExtremeCloud IQ or compatible controller platforms.
Q: What power source is required for operation?
A: The AP requires 802.3af PoE, with 802.3at needed if using the USB functionality. A compatible PoE injector or switch is not included.
Installation Considerations
- Ensure proper grounding and lightning protection for outdoor installation
- Use only compatible Extreme Networks external antennas
- Maintain adequate ventilation and avoid blocking airflow openings
- Verify compliance with local RF regulations before deployment
- Consider environmental factors such as temperature extremes and humidity
