Extreme wireless access points AP -7562 -67040 -1 -WR Integrated Antenna Dual-Radio 802.11ac/802.11n 3X3 Mimo

Extreme wireless access points AP -7562 -67040 -1 -WR Integrated Antenna Dual-Radio 802.11ac/802.11n 3X3 Mimo

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Supported Frequency:
5GHz And 2.4GHz
Indoor Access Point
Transmission Standard:
2.54 Kg
22.8 Cm L X 25.4 Cm W X 6.6 Cm H
1 Year
Product Description

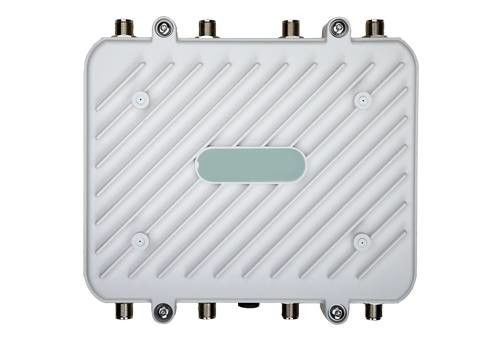

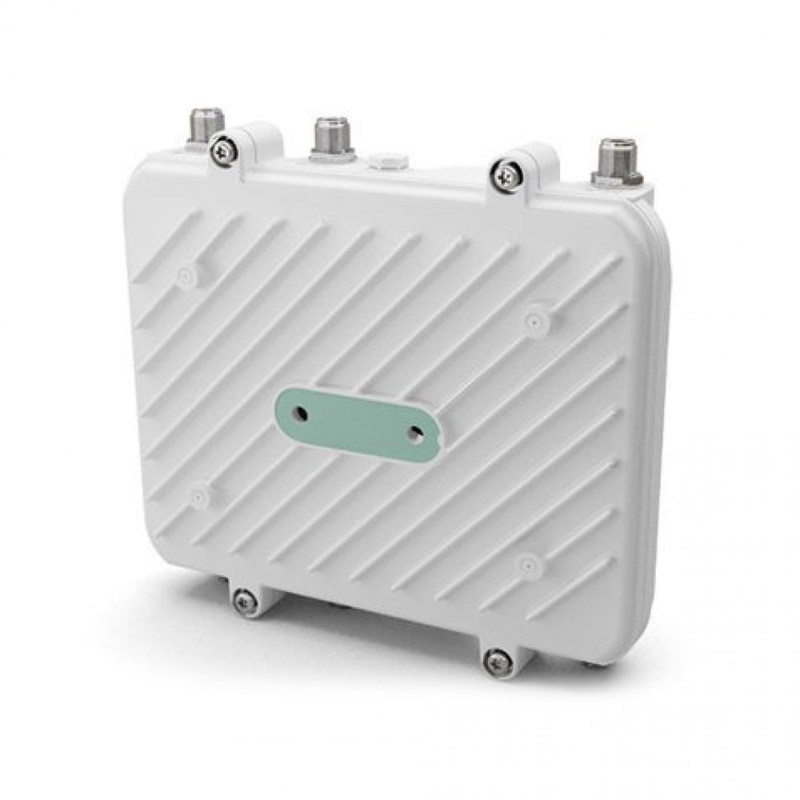

Extreme wireless access points AP-7562-67040-1-WR

Innovative Enterprise-class Outdoor AP
The ExtremeWireless WiNG AP 7562 802.11ac outdoor access point is purpose-built to meet the demands of your outdoor spaces and can handle anything from rain, snow, and hurricane-force winds to sub-zero temperatures. You also get all the power you need to provide high-performance, seamless, reliable, and secure wireless access for even the densest user populations

High Performance with New Technology Advancements
Ruggedized high-performance 802.11ac outdoor access point with high-speed convergence MESH Connex technology. Used in freight and commuter transport, retail, manufacturing.

Easy Migration to Fifth-Generation 802.11ac Wi-Fi
The dual-radio WiNG AP 7562 provides the simplest path to next-generation Wi-Fi. The 802.11ac radio readies you to support new 5 GHz mobile devices, while the 802.11n radio ensures support for all existing mobile devices — including 2.4 GHz clients. WiNG AP 7622 includes a flexible radio design that can be easily tailored to the application.


802.11ac Capabilities

Dual radios; supports 256-QAM 3X3 MIMO with 3 Spatial Streams 20, 40, and 80 MHz Channels 1.9 Gbps data rates on dual concurrent radio operations Packet Aggregation (AMSDU, AMPDU) Reduced Interface Spacing 802.11 DFS MIMO Power Save (Static and Dynamic) Advanced forward error correction coding: STBC, LDPC 802.11ac transmit beamforming Maximal Ratio Combining (MRC)


Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP

tateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server

WMM, WMM-UAPSD, 802.1p, COS, Diffserv. Role-based QoS and packet marking

Radio Specifications

• Wireless Medium: Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO

• Network Standards: IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server

• Data Rates Supported:802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps 802.11a: 6,9,12,18,24,36,48, and 54 Mbps 802.11n: MCS 0-23 up to 450 Mbps; Turbo mode (256 QAM) on 2.4 GHz band up to 600 Mbps 802.11ac: MCS 0-9 up to 1.3 Gbps

• Operating Channels: 2.4 GHz Band: Channel 1 through Channel 13 5.2 GHz Band: Channel 36 through Channel 165 * Channel availability depends on local regulatory restrictions

• Antenna Configuration: 3x3 MIMO (transmit/receive on all three antennas)

• Operating Frequencies: 2412 to 2472 MHz, 5180 to 5850 MHz

Extreme wireless access points AP -7562 -67040 -1 -WR Integrated Antenna Dual-Radio 802.11ac/802.11n 3X3 Mimo 0
