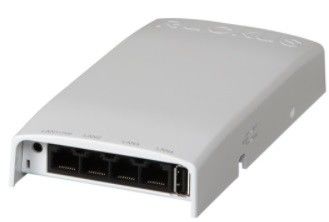

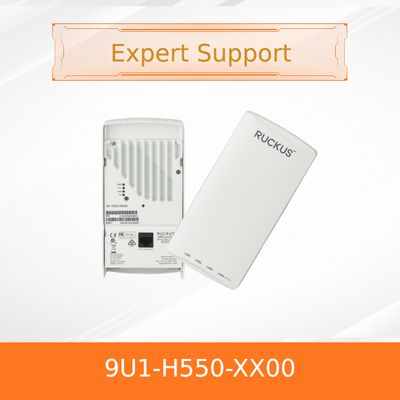

RUCKUS H550 Wall-Mounted Wi-Fi 6 Access Point with IoT and Switch

1. Product Overview

The RUCKUS H550 (Model: 9U1-H550-XX00) is a high-performance, wall-plate form factor Wireless Access Point designed for dense connectivity environments. This all-in-one solution integrates Wi-Fi 6 (802.11ax) radios, a 4-port Gigabit Ethernet switch, and dual concurrent IoT support for Bluetooth Low Energy (BLE) and Zigbee. It is engineered to deliver reliable in-room coverage and wired connectivity for hospitality, education, and multi-dwelling units (MDUs), making it an ideal Access Point for modern network demands.

2. Key Characteristics

• Wi-Fi 6 2x2:2 dual-band radio with 1.8 Gbps aggregate throughput

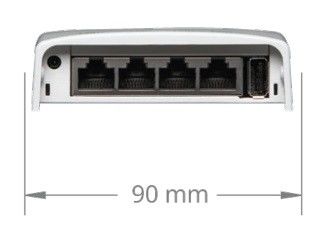

• Integrated 4-port Gigabit Ethernet switch with PoE output
• Built-in Bluetooth and Zigbee radios for IoT connectivity
• Patented BeamFlex+ adaptive antenna technology
• Support for up to 512 clients per AP

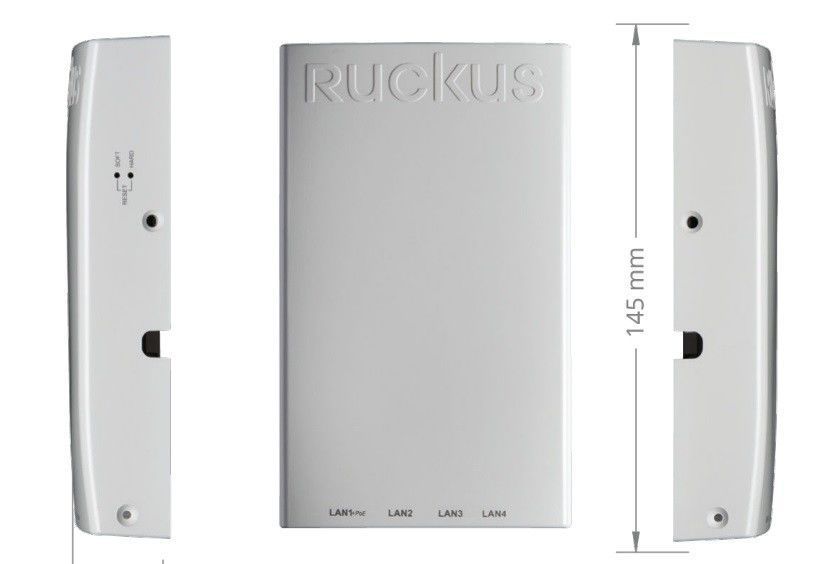

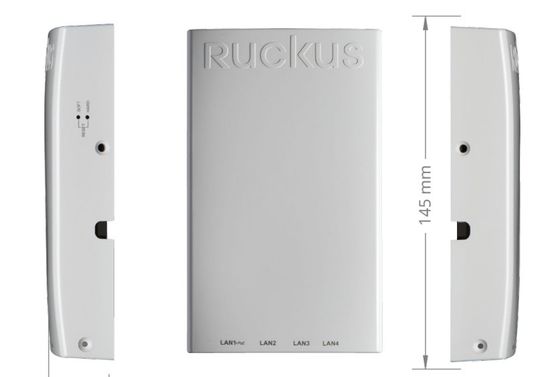

• Wall-mounted design for discreet installation
• Multiple management options: cloud, on-prem, controller-less

3. Core Technologies

The H550 leverages advanced Wireless technologies including:

• BeamFlex+ adaptive antenna system for optimized signal direction
• ChannelFly AI-driven channel selection
• MU-MIMO and OFDMA for multi-user efficiency
• WPA3 security, Dynamic PSK, and Enhanced Open
• SmartMesh for self-healing mesh networking

4. Working Principle

The H550 operates by dynamically steering RF signals using BeamFlex+ antennas on a per-packet basis. It scans the environment for interference and utilizes ChannelFly to select the least congested channels. The integrated switch and IoT radios allow it to serve as a unified connectivity hub, supporting both wired and wireless devices from a single wall-mounted enclosure.

5. Applications

Ideal for:

• Hotel guest rooms and hospitality suites
• Student dormitories and apartment buildings
• Healthcare patient rooms
• Enterprise office spaces and meeting rooms
• Any environment requiring high-density Wi-Fi and IoT readiness

6. Specifications

7. Advantages

• Superior coverage and interference mitigation with BeamFlex+
• Consolidated wired and wireless services reduce cabling and costs
• Future-ready with USB port for additional radio modules
• High client capacity supports dense device environments
• Flexible management via cloud, on-prem, or controller-free modes

8. Service & Support

We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation and post-sales integration assistance to ensure seamless deployment.

9. Frequently Asked Questions

Q: How many devices can the H550 support per room?
A: It can support up to 100+ clients per room, including Wi-Fi, wired, and IoT devices.

Q: Does it require a separate controller?
A: No, it can operate in standalone mode or with RUCKUS SmartZone, Unleashed, or cloud management.

Q: Is the PoE output standard or passive?
A: Model 9U1-H550-XX00 supports 802.3af PoE output. A variant with 48V passive PoE is also available.

10. Precautions

• Ensure proper PoE power sourcing (802.3bt recommended for full functionality)
• Install in a well-ventilated area with operating temperature between 0°C to 40°C
• Verify compatibility with existing network security policies and VLAN configurations
• Use only certified power adapters or injectors for non-PoE deployments
