Extreme wireless access points AP -7612 -68B30 -1 -WR Indoor Wall Plate AP 802.11a/b/g/n/ac 5GHz 2x2:2 2.4GHz 2x2:2

Extreme wireless access points AP -7612 -68B30 -1 -WR Indoor Wall Plate AP 802.11a/b/g/n/ac 5GHz 2x2:2 2.4GHz 2x2:2

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Supported Frequency:
5GHz And 2.4GHz
Indoor Wall Plate AP
Transmission Standard:
Warranty Time:
1 Year
155mm X 112mm X 30mm
Lead Time:
According To Stock
Product Description

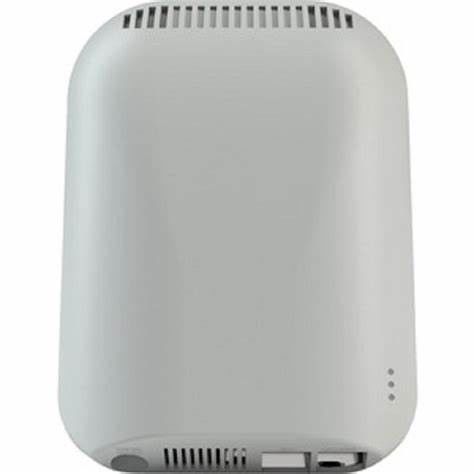

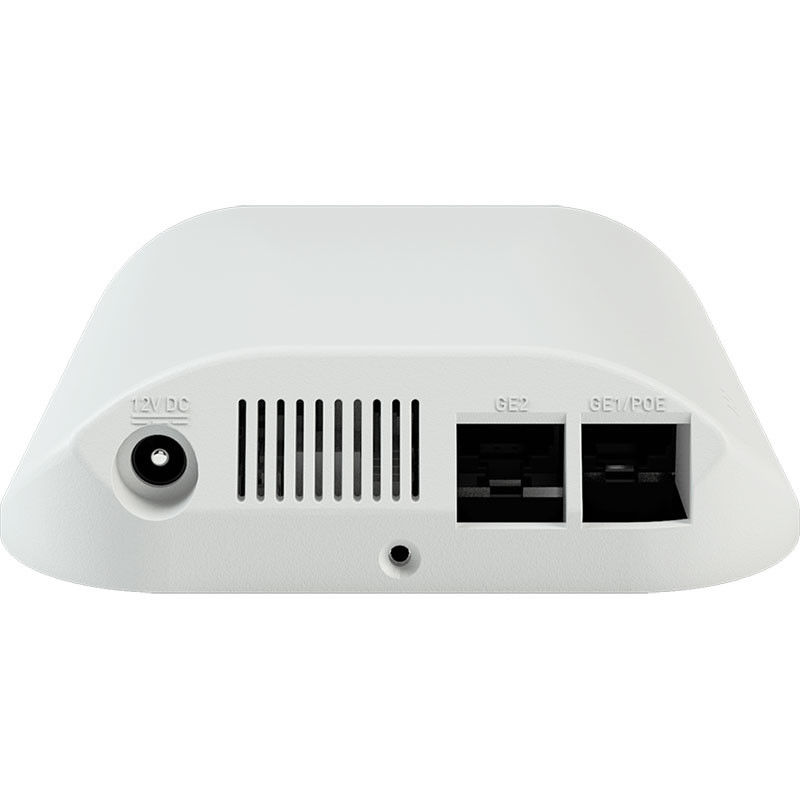

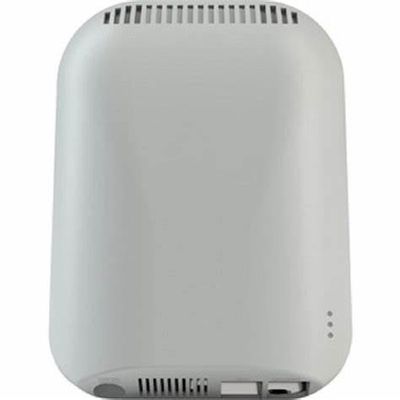

Extreme wireless access points AP-7612-68B30-1-WR

A Small Package that Delivers Big Benefits
The ExtremeWireless WiNG AP 7612, Wave 2 802.11ac, enterprise-grade wall plate, may be small in size, but this surprisingly small AP is rich in functionality that can differentiate your business. Now, you can leap ahead of Wi-Fi demand with such over-the-top services as Bring Your Own Network (BYON), IPTV, and ultra high-definition programs.

One AP Per Guest Room For the “At Home” Experience
Having one WiNG AP 7612 in each guest room radically improves signal levels and power. Now, every smartphone, wearable device, and laptop a guest brings can be supported with superior connectivity and lightning speeds.

Cloud-ready out of the Box
The WiNG AP 7612 is cloud-ready out of the box and will support zero-touch provisioning and secure connectivity to ExtremeCloud, a single pane of glass for unified cloud management of Extreme switching wireless LAN across your network.


802.11AC Capabilities

802.11ac 2x2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz, BLE Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC


Layer 2 and Layer 3: Layer 3 Routing, 802.1q, DynDNS, DHCP Server / Cient, BOOTP Client, PPPoE, and LLDP

Security: Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server

Quality of Service (QoS): WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS

Radio Specifications

Wireless Medium: Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)

Network Standards: IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3

Data Rates Supported: 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 866.7 Mbps

Operating Channel: 2.4 GHz Band: Channel 1 through Channel 13 5 GHz Band: Channel 36 through Channel 165 *Channel Availability Depends on Local Regulatory Restriction

Antenna Configuration: 2X2 MIMO (transmit/receive on both antennas). Transmit Power Adjustment 1dB Increment

Operating Frequencies: 2412 to 2472 MHz, 5180 to 5825 MHz

Extreme wireless access points AP -7612 -68B30 -1 -WR Indoor Wall Plate AP 802.11a/b/g/n/ac 5GHz 2x2:2 2.4GHz 2x2:2 0


Q1.What can you buy from us?

A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

Q2.How about the delivery date?

A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

A: We supply 12 months warranty time.

Q4.How about the Shipping Method?

A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
