Extreme wireless access points AP -7522 -67040 -1 -WR External Antennas 802.11a/b/g/n/ac 5 GHz 2x2:2 2.4 GHz 2x2:2

Extreme wireless access points AP -7522 -67040 -1 -WR External Antennas 802.11a/b/g/n/ac 5 GHz 2x2:2 2.4 GHz 2x2:2

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Supported Frequency:
5GHz And 2.4GHz
Indoor Access Point
Transmission Standard:
Maximum Conducted Transmit Power:
21 DBm
External Antennas
1 Year
Lead Time:
According To Stock
Product Description

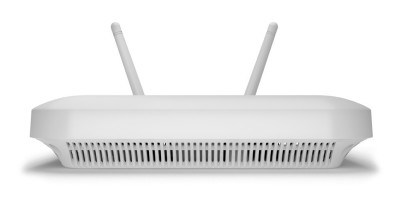

Extreme wireless access points AP-7522-67040-1-WR

High-performance Enterprise-class AP
The WiNG AP 7522 is a multi-role, high performance and cost-effective 802.11ac/802.11n that serves multiple market segments with next-generation wireless LAN. Ideally suited for small retail stores, quick serve, and transportation and logistics.

The Bandwidth and Application Performance You Need
802.11ac technology builds on the advances of 802.11n — the 802.11ac radio delivers more bandwidth and faster speeds through new technology enhancements such as Multiple-Input Multiple-Output (MIMO).

More Robust Wireless Connections
Your users will experience a more robust wireless connection than ever before, thanks to improved beamforming. Beamforming creates the most efficient path for data transmission between an access point and a mobile device. The result is a stronger connection that enables faster data transmission.


802.11ac Capabilities

• 802.11 DFS MIMO Power Save (Static and Dynamic) Advanced forward error correction coding: STBC, LDPC 802.11ac transmit beamforming Maximal Ratio Combining (MRC)


Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WIDs/WIPs, IPSec, RADIUS svr

WMM, WMM-UAPSD, 802.1p, COS, Diffserv. Role-based QoS and packet marking

Radio Specifications

• Wireless Medium: Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)

• Network Standards: IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD

• Data Rates Supported: 802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11n: MCS 0-23 up to 300Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps, 802.11ac: MCS 0-9 up to 866.7Mbps

• Operating Channels: 2.4 GHz band: channel 1 through channel 13 5.2 GHz band: channel 36 through channel 165 Channel availability depends on local regulatory restrictions

• Antenna Configuration: 2x2 MIMO (transmit/receive on both antennas)

• Operating Frequencies: 2412 to 2472 MHz, 5180 to 5825 MHz

Extreme wireless access points AP -7522 -67040 -1 -WR External Antennas 802.11a/b/g/n/ac 5 GHz 2x2:2 2.4 GHz 2x2:2 0


Q1.What can you buy from us?

A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

Q2.How about the delivery date?

A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

A: We supply 12 months warranty time.

Q4.How about the Shipping Method?

A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
