Indoor Extreme Networks AP310e-WR Access Points Wallplate 802.11a/B/G/N/Ac/Ax 5GHz 2.4GHz
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP310e-WR |
| Document: | AP310.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Supported Frequency: | 5GHz And 2.4GHz |
|---|---|---|---|
| Transmission Standard: | 802.11ax | Warranty Time: | 1 Year |
| Operating: | -20 To 55°C | Lead Time: | According To Stock |
| Highlight: | Indoor extreme networks ap310,extreme networks ap310 Wallplate,Indoor extreme networks ap 310 |
||
Product Description

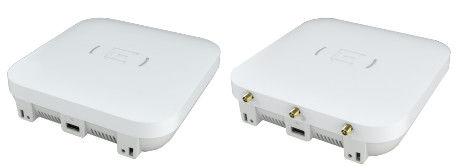

AP310e-WR Dual-Band Wi-Fi 6 Indoor Access Point
1. Product Overview
The AP310e-WR is an enterprise-grade, dual-band 802.11ax (Wi-Fi 6) indoor access point designed for high-density environments. It features external antennas for flexible deployment and supports advanced RF management, IoT connectivity, and robust security protocols. Ideal for budget-conscious organizations requiring reliable performance and future-proof connectivity.
2. Key Features
- Wi-Fi 6 (802.11ax) with 2x2 MIMO radios in both 2.4 GHz and 5 GHz bands
- Software-Selectable Radio (SSR) modes: Dual Band, Dual 5 GHz, or Sensor mode
- Integrated Bluetooth Low Energy (BLE) and Zigbee for IoT connectivity
- WPA3 security support with stateful L2-L7 firewall
- Cellular Coexistence Filter (CCF) to reduce interference
- Powered via standard 802.3af PoE (USB requires 802.3at)
3. Core Technology
The access point leverages Wi-Fi 6 technology including OFDMA, MU-MIMO, and 1024-QAM modulation for improved efficiency and throughput. It supports adaptive RF management with AI/ML-like automation for channel and power optimization.
4. Working Principle
The AP310e-WR uses dual concurrent radios to manage client traffic across 2.4 GHz and 5 GHz bands simultaneously. Using SSR technology, network administrators can dynamically reconfigure radio modes to suit environmental demands, ensuring optimal performance and coverage.
5. Applications
This wireless access point is suitable for:
- Enterprise offices and campuses
- Educational institutions
- Healthcare facilities
- Retail and hospitality venues
- High-density public venues
6. Specifications
| Parameter | Value |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max Data Rate | Up to 2.4 Gbps |
| Ethernet Ports | 2x Gigabit RJ45 |
| USB Port | 1x USB 3.0 Type A |
| PoE Support | 802.3af (802.3at for USB) |
| Power Consumption | Max 14W (with USB) |
| Dimensions | 165mm x 165mm x 45mm |
| Weight | 0.7 kg |
| Operating Temperature | -20°C to 55°C |
7. Advantages
- Future-proof Wi-Fi 6 performance at a competitive price
- Flexible radio modes via software configuration
- Enhanced IoT readiness with integrated BLE and Zigbee
- Superior interference handling with CCF technology
- Compatible with ExtremeCloud IQ and on-prem controllers
8. Service & Support
We offer a limited lifetime warranty, 24/7 technical support, and global shipping. Our professional team ensures timely delivery and post-sale integration assistance.
9. Frequently Asked Questions
Q: Does the AP310e-WR support mesh networking?
A: Yes, when managed through ExtremeCloud IQ or compatible controllers.
Q: Can I use the USB port for cellular dongles?
A: Yes, but it requires 802.3at PoE+ power.
Q: Is the IoT radio included in all models?
A: No, please check the SKU. AP310e-WR includes BLE and Zigbee support.
10. Precautions
- Ensure proper PoE power source for full functionality.
- Use only compatible external antennas to avoid RF mismatch.
- Comply with local regulatory requirements for radio operation.
- Avoid mounting in environments beyond specified temperature ranges.
