Brand Name:
Mellanox
Model Number:
MFS1S00-H020V
CONTACT US
Introduction
MFS1S00-H020V

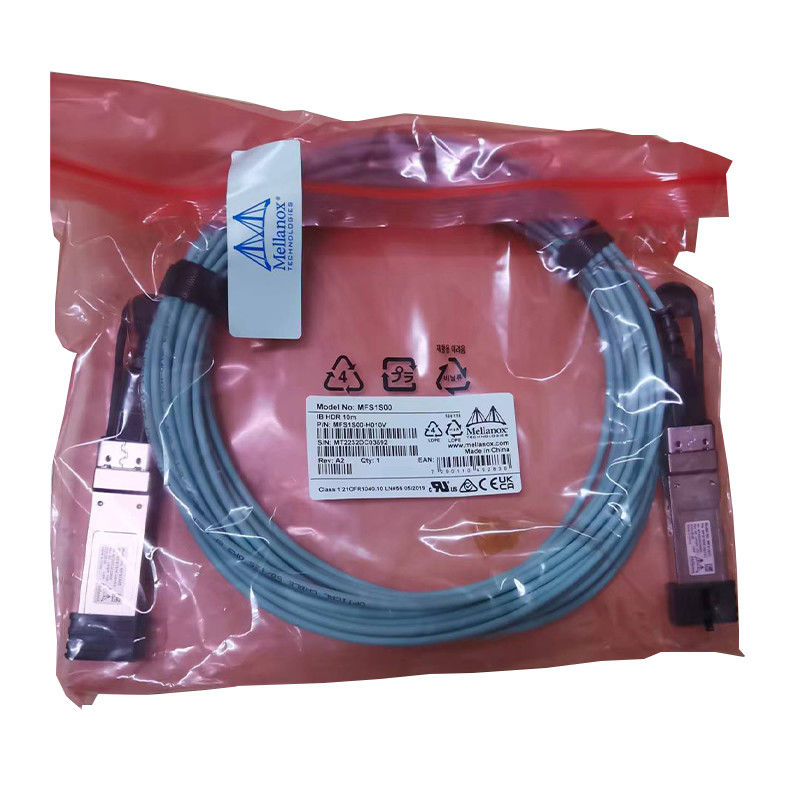

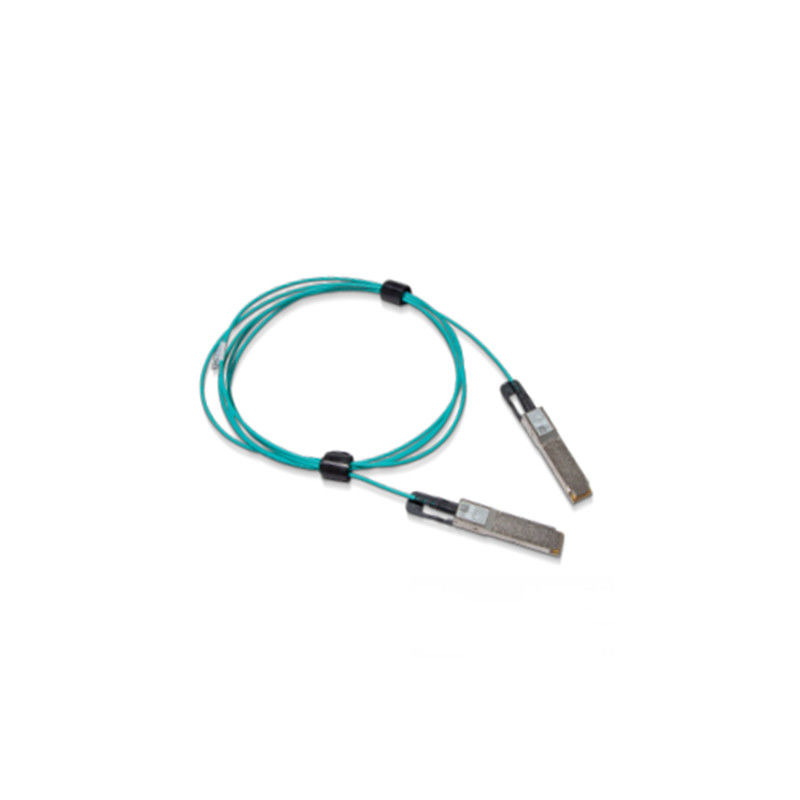

The NVIDIA® MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.
The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.
The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.
NVIDIA's unique quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Key Features
Supports IBTA IB HDR
Up to 200Gb/s
4x 50Gb/s PAM4 modulation
Programmable Rx output amplitude and pre-emphasis
SFF-8665 compliant QSFP56 port
Single 3.3V power supply
5.0W power consumption (typ., each end, with retiming)
Up to 100m length
Hot pluggable
RoHS compliant
SFF-8636 compliant I2C management interface
Applications
Supports 200Gb InfiniBand HDR Systems
Supports 200 GbE between SN3700 and SN4600 switches
MFS1S00-H020V
| Highlights |
| * Up to 200Gb/s data rate |
| * Programmable Rx output amplitude and pre-emphasis |
| * Programmable Tx input equalizer |
| * Selectable retiming |
| * SFF-8665 compliant QSFP28 port |
| * Single 3.3V power supply |
| * 2.2W power dissipation (typ, each end with retiming) |
| * Low BER |
| * Up to 100m length |
| * Hot pluggable |
| * RoHS compliant |
| * SFF-8636 compliant I2C management interface |
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Signaling rate | -100 ppm | 53.125 | +100 ppm | Gb/s (PAM4) |
| -100 ppm | 25.78125 | +100 ppm | Gb/s (NRZ) | |
| Differential data input swing at TP1a | TBD | --- | 900 | mVpp |
| Differential data output swing at TP4 | --- | --- | 900 | mVpp |
| Near-end ESMW | 0.265 | --- | --- | UI |
| Near-end output eye height | 70 | --- | --- | mVpp |
| Output transition time, 20% to 80% | 9.5 | --- | --- | ps |
Notes:
For configurations tested with the AOCs, please refer to the system level product (SLP) qualification report.
The AOC supports rate select, which is controlled by writing to registers 0x57-0x58. Two bits are assigned for each receiver lane in byte 0x57 (87dec, Rxn_Rate_Select) and two bits for each transmitter lane in byte 0x58 (88dec, Txn_Rate_Select) to specify up to four bitrates, as defined in SFF-8636 Rev 2.9.2 Table 6-5 XN_RATE_SELECT ENCODINGS. All four lanes are required to have the same rate select value.
The below table specifies the rate for each rate select setting.
|
Rate Select Value
|
Operating Rate (GBd)
|
|---|---|
| 10 | 25.78125 NRZ (EDR) |
| 11 | 26.56250 PAM4 (HDR) |
| Parameter | Value | Units | |
|---|---|---|---|
| Diameter | 3 +/-0.2 | mm | |
| Minimum bend radius | 30 | mm | |
| Length tolerance | length < 5 m | +300 /-0 | mm |
| 5 m ≤ length < 50 m | +500 / -0 | ||
| 50 m ≤ length | +1000 /-0 | ||
| Cable color | Aqua | --- | |
Entire Network Security and Visibility.The need for data is driving an increasingly distributed and complex network environment making data visualization and isolation essential security functionalities for every data center.
Our Networking solutions enhance security, simplify data center automation, and allows complete visibility to your network.
Full Solutions Stack Provider.We provide a one-stop shop for networking. From hardware (switches, NICs, interconnects) to software (OS, management, firmware) and support, our broad portfolio will meet your networking needs.Beyond the network, our ecosystem ensures compatibility with other NVIDIA products.
Offload + Performance for Server and Storage.Whether accelerating applications with InfiniBand or RoCE, or isolating key workloads via DPU, our software defined, hardware accelerated offerings enable you to dedicate your compute and storage resources to applications, not network management.
| model | description |
| MFS1S00-H020V | Mellanox AOC DAC cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | mellanox breakout cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | mellanox passive copper cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | mellanox infiniband cables 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | console cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | active fiber cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | hdr cables 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | mellanox splitter cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | mellanox edr cables 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | high-speed interconnect cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | fast interconnect cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | Ethernet cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30 QSFP28 QSFP56 |
| MFS1S00-H020V | InfiniBand cable 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
| MFS1S00-H020V | hdr cables 200Gb 100Gb 25Gb 40Gb 5M 10M 15M 20M 30M QSFP28 QSFP56 |
