Brand Name:
Ruckus
Model Number:
901-R310-WW02
CONTACT US
video
video
video
Smaller places may have an urgent need for wireless infrastructure. Users can access high-bandwidth applications and content that they can use anywhere else, and they expect a strong and reliable connection. Ruckus R310 provides a consistent and reliable 802.11ac wireless network at a reasonable price. The product uses Ruckus performance optimization and interference suppression technology, which is only used in our high-end access point products, to provide excellent user experience and greater coverage. However, the product can provide these functions in the ultra-compact fuselage tailored for small and medium-sized enterprises and low-density hot spots. Special shape design for small places, industry-leading Wi-Fi performance, and exclusive pricing matching the size of the enterprise.
Indoor 802.11ac 2x2:2 Wi-Fi access point for small business

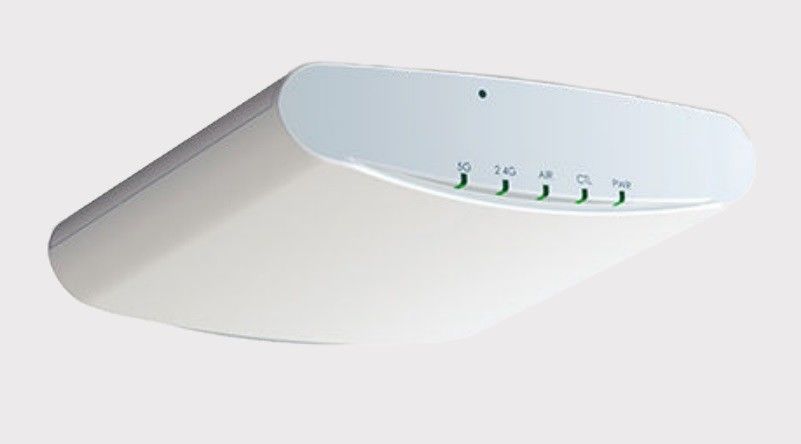

The Ruckus ZoneFlex R310 delivers high-performance reliable 802.11ac wireless networking at a competitive price point in a compact form factor.
Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented BeamFlex adaptive antenna technology and ChannelFly to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation.
The ZoneFlex R310’s ultra compact form factor fits in the palm of your hands, enabling quick and versatile installation.
Ideal for a variety of low-density enterprise and hotspot environments including small-medium businesses, retail, restaurants and multi-tenant office buildings that requires reliable high-speed client connectivity.
Features:
High Performance and Cost Effective
1.Two-stream MIMO 2x2:2
2.Concurrent dual-band (5GHz/2.4GHz) support
3.867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user throughput
4.Up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation
5.Capable of supporting up to 100 clients per access point
Adaptive antennas and Automatic interference mitigation
1.Up to 2x to 4x increase increase in Wi-Fi signal coverage
2.Automatic interference mitigation to deliver consistent, predictable performance at extended ranges
Small Form Factor for easy installation
1.138mm x 135mm x 30mm

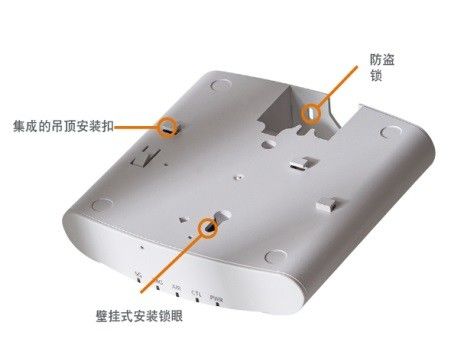

2.Flexible mounting options include: secure mounting bracket, ceiling T-Bar or flat surface
Concurrent support for HD IPTV, VoIP and data
1.Support for isochronous, multicast IP video streaming
2.Four queues per client station
Differentiated services with multiple SSIDs
1.Support for up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
2.WPA-PSK (AES), 802.1X support
3.Zero-IT and Dynamic PSK
4.Captive portal and guest accounts
5.RADIUS and Active Directory support
Description:Entry-level 802.11ac AP with Beamflex
Maximum PHY rate:867 Mbps (5GHz) / 300 Mbps (2.4GHz)
Wi-Fi technology:802.11ac (5GHz) / 802.11n (2.4GHz)
Concurrent users:100
Radio chains:streams:2x2:2
BeamFlex gains:4dB
Max. interference mitigation:10dB
PD-MRC:No
Rx sensitivity:-99dBm
ChannelFly:Yes
Smart meshing:No
USB:No
Ethernet ports:1
|
RUCKUS ®T301 |
|
|
The R310 access point can be dynamically selected in real time from a variety of antenna modes (up to 64 possible combinations) through the BeamFlex adaptive antenna of Ruckus, so as to establish the best connection with each device. |
|
|
902-0162-CH00 |
PoE power supply module (24W) (1, 10 or 100 for sale) |
|
902-0195-0000 |
T301s, 120x30 degrees, outdoor 802.11ac 2x2:2, 120 degrees sector, dual-band concurrent access point, one Ethernet port, PoE input, including adjustable mounting bracket and one-year warranty. PoE power supply module not included |
|
902-1169-CN00 |
Spare parts, T-bar ceiling mounting kit for mounting on flat beam ceiling Power supply (12V, 2.0A, 24W) |
|
902-0120-0000 |
Spare parts and accessories mounting bracket |
|
902-0173-CN00 |
Power adapter (12V, 1.0A, 12W) (1 or 10 for sale) |
Q1.What can you buy from us?
A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
| RUCKUS ICX 7150 PORT AND SERVICE MODULE OPTIONS | |
| Boko Ethernet switch stacking 2 technology enables enterprises to stack up to 8 Brocade ICX 7150 switches together to form a logical switch. | |
| 901-T301-WW61 | T301n, 30x30 degrees, outdoor 802.11ac 2x2:2, narrowband, dual-band concurrent access point, one Ethernet port, PoE input, including adjustable mounting bracket and one-year warranty. PoE power supply module is not included. |
| 901-T301-WW51 | T301s, 120x30 degrees, outdoor 802.11ac 2x2:2, 120 degrees sector, dual-band concurrent access point, one Ethernet port, PoE input, including adjustable mounting bracket and one-year warranty. PoE power supply module not included |
