5m QSFP56 MMF Mellanox AOC HDR Cables MFS1S00-H005E 200Gb/s
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005E |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Length: | 5m |
| Diameter: | 3 ± 0.2mm | Minimum Bend Radius: | 30mm |
| Cable Color: | Aqua | Operating Relative Humidity: | 5~85% |
| Highlight: | MMF Mellanox AOC,HDR Mellanox AOC,MMF mellanox hdr cables |
||
Product Description

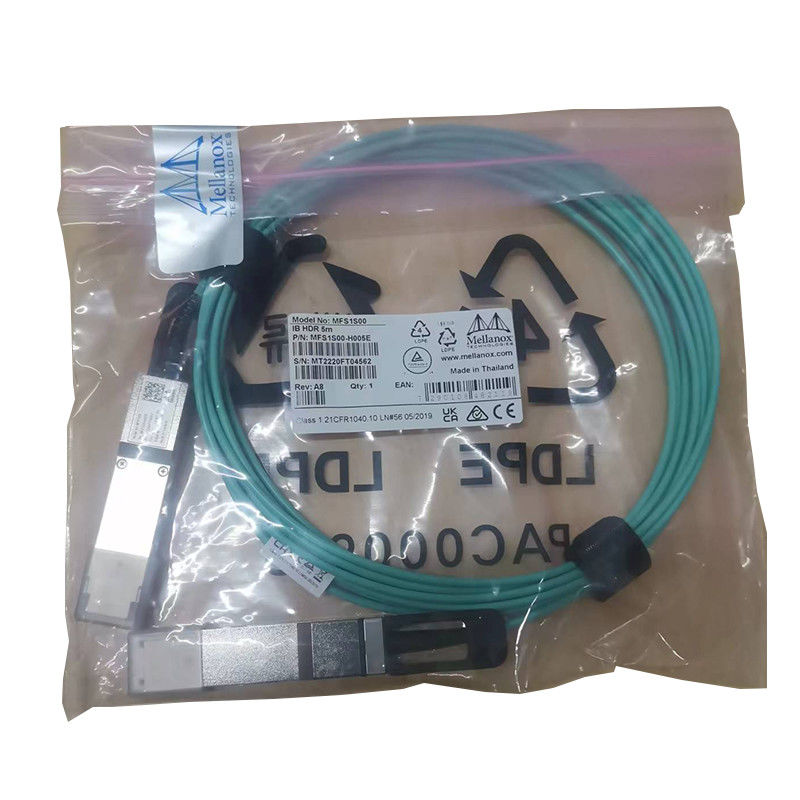

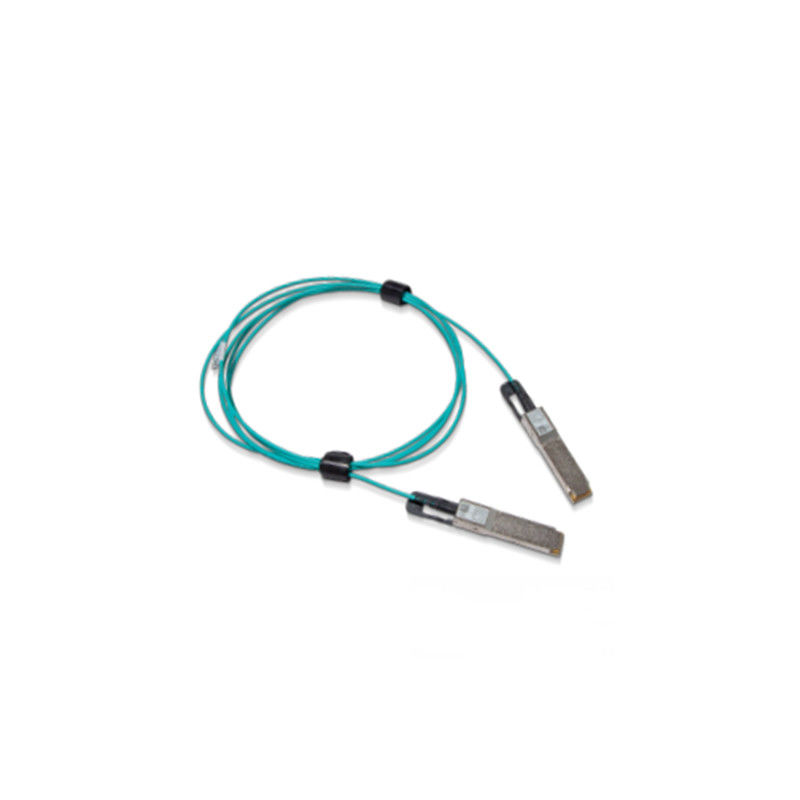

NVIDIA MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable
Product Overview
The NVIDIA® MFS1S00-H005V is a high-performance QSFP56 Active Optical Cable (AOC) engineered for 200Gb/s InfiniBand HDR and 200 Gigabit Ethernet systems. This advanced Optical Fiber Cable provides a robust, low-latency solution that surpasses the limitations of traditional passive fiber cable alternatives. It integrates four multi-mode fibers (MMF) per termination, each supporting PAM4 modulation at data rates up to 50 Gb/s, delivering exceptional bandwidth and reliability for modern data center interconnects.
Key Characteristics
- Supports 200Gb/s data rates for InfiniBand HDR and 200GbE
- 4x 50Gb/s PAM4 modulation per lane
- Hot-pluggable QSFP56 form factor (SFF-8665 compliant)
- Programmable Rx output amplitude and pre-emphasis
- Up to 100m reach on multi-mode fiber
- Single 3.3V power supply; typical power consumption: 5.0W per end
- Integrated Digital Diagnostic Monitoring (DDM) via SFF-8636 I²C interface
- RoHS compliant and designed for high-density deployments
Core Technology
This AOC utilizes VCSEL (Vertical Cavity Surface-Emitting Laser) technology and advanced DSP-based retiming. It complies with key industry standards including SFF-8665, SFF-8636, and IEEE 802.3bs for 200GbE. The integrated DDM functionality allows real-time monitoring of temperature, voltage, laser bias current, and optical power for each lane, providing critical insights for network health and pre-failure alerts.
Working Principle
The cable converts electrical signals into optical signals using integrated VCSEL transmitters. These optical signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Built-in signal integrity features—including programmable equalization, pre-emphasis, and clock data recovery (CDR)—ensure robust performance over the entire link length, a significant advantage over a basic passive fiber cable.
Applications
Ideal for high-performance computing (HPC) clusters, cloud data centers, enterprise core networking, and AI/ML workload infrastructures. Specifically designed for 200G InfiniBand HDR systems and 200GbE connectivity between modern switches like the NVIDIA SN3700 and SN4600 series.
Specifications & Ordering Info
| Parameter | Specification |
|---|---|
| Model Number | MFS1S00-H005V |
| Data Rate | 200 Gb/s |
| Interface/Form Factor | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 5m |
| Power Consumption | 5.0W (typical per end) |
| Maximum Reach | 100m (MMF) |
| Modulation | PAM4 |
Advantages
This high-performance Optical Fiber Cable offers superior signal integrity and longer reach compared to passive DACs or a standard passive fiber cable. Its integrated diagnostics reduce troubleshooting time, and the hot-pluggable design simplifies maintenance and scalability in dense data center environments.
Service & Support
We offer comprehensive warranty coverage, rapid delivery from our extensive $10M+ inventory, and 24/7 technical consultation. Our expert team provides full integration support and compatibility assurance for seamless deployment.
FAQ
Q: What is the difference between this AOC and a passive cable?
A: This Active Optical Cable contains built-in electronics for signal retiming and integrity, allowing for much longer distances (up to 100m) than a passive fiber cable or Direct Attach Copper (DAC) cable.
Q: Is it compatible with 100GbE switches?
A: It is designed for 200Gb/s protocols. For 100GbE compatibility, please check the specific switch's compatibility matrix or consider a different Optical Fiber Cable model.
Q: Does it support digital diagnostics?
A: Yes, it features full DDM (Digital Diagnostic Monitoring) for real-time monitoring of temperature, power, and voltage.
Precautions
Do not bend the cable below a 30mm radius. Always use ESD wrist straps when handling. Ensure the operating case temperature remains between 0°C and 70°C. The product is Class 1 Laser compliant per IEC 60825-1 and 21 CFR 1040. Observe all FCC Class A equipment guidelines for commercial environments.
