Ruckus 9U1-R750-WW00 Wi-Fi 6 Access Point | High-Density Indoor Wireless AP 802.11ax
Product Details:
| Brand Name: | Ruckus |
| Model Number: | 9U1-R750-WW00 |
| Document: | ds-ruckus-r750.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Wi-Fi Standards: | 802.11a/b/g/n/ac/ax | Spatial Streams: | 4x4:4 (2.4GHz & 5GHz) |
|---|---|---|---|
| Max PHY Rate: | 2.4GHz: 1148 Mbps, 5GHz: 2400 Mbps | Ethernet Ports: | 1x 2.5GbE, 1x 1GbE |
| PoE Support: | 802.3af/at/bt | USB Port: | 1x USB 2.0 Type A |
| Highlight: | ZoneDirector 1200 Ruckus Wireless Controller,1000Mbps Ruckus Wireless Controller,1200 ruckus zone controller |
||
Product Description

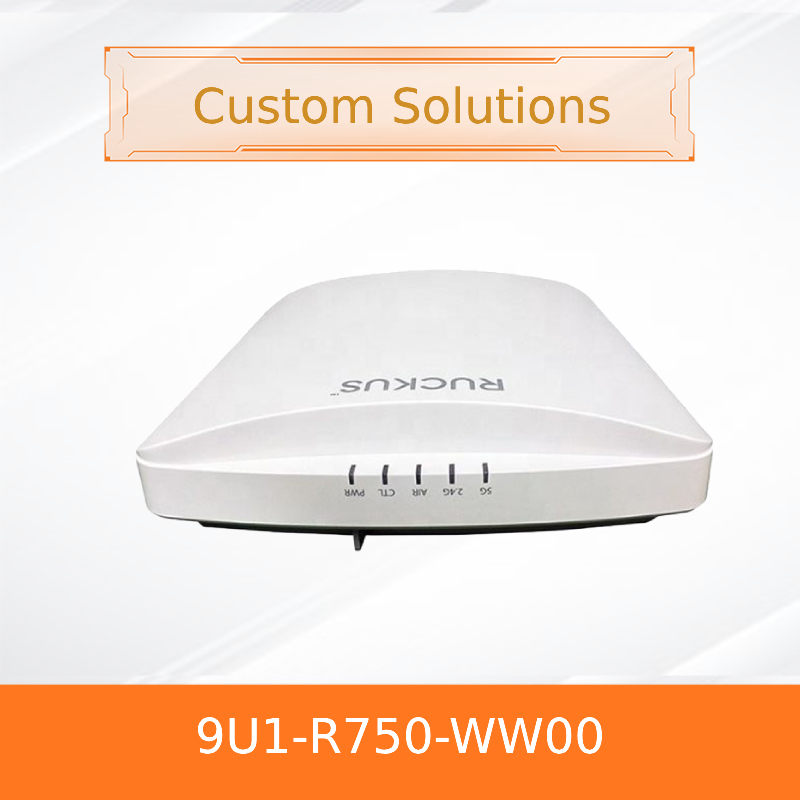

Ruckus R750 Indoor Wi-Fi 6 Access Point
Product Overview
The Ruckus R750 is a high-performance dual-band Wi-Fi 6 (802.11ax) Access Point designed for ultra-high-density indoor environments. It supports up to 1024 simultaneous client connections and delivers multi-gigabit wireless speeds with advanced RF management, IoT readiness, and converged wireless support.
Key Features
- Wi-Fi 6 (802.11ax) with 8 spatial streams (4x4:4 in both bands)
- Supports up to 1024 clients per Access Point
- Built-in 2.5GbE Ethernet port for multi-gigabit backhaul
- Integrated IoT radios: BLE and Zigbee
- BeamFlex+ adaptive antenna technology with 4,000+ patterns
- Ruckus Ultra-High-Density Technology Suite
- Converged wireless support via USB port
Technology & Standards
The R750 Access Point leverages Wi-Fi 6 (802.11ax) standards with MU-MIMO, OFDMA, and Target Wake Time (TWT) for efficient spectrum use and power management. It supports WPA3 security, dual-stack IPv4/IPv6, and advanced radio management features like ChannelFly and SmartRoam.
How It Works
The R750 uses BeamFlex+ adaptive antennas to dynamically steer RF signals toward each client device, optimizing coverage and reducing interference. With built-in IoT radios and a USB port, it supports converged wireless networks, allowing seamless integration of Wi-Fi and non-Wi-Fi technologies.
Applications
- Enterprise offices and conference rooms
- Education: classrooms and lecture halls
- Healthcare: patient monitoring and IoT deployments
- Hospitality: high-density guest networks
- Transportation hubs and auditoriums
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Spatial Streams | 4x4:4 (2.4GHz & 5GHz) |
| Max PHY Rate | 2.4GHz: 1148 Mbps, 5GHz: 2400 Mbps |
| Ethernet Ports | 1x 2.5GbE, 1x 1GbE |
| PoE Support | 802.3af/at/bt |
| USB Port | 1x USB 2.0 Type A |
| Dimensions | 9.3" x 8.1" x 2.4" (23.5 x 20.6 x 6.2 cm) |
| Weight | 2.23 lbs (1.01 kg) |
| Operating Temp | 0°C to 50°C (32°F to 122°F) |
Advantages
- Superior client density handling with 1024+ connections
- Future-proof with Wi-Fi 6 and multi-gigabit Ethernet
- Integrated IoT support reduces deployment complexity
- BeamFlex+ antennas improve coverage and reduce interference
- Flexible management via on-prem or cloud controllers
Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation, integration services, and post-sales troubleshooting to ensure seamless deployment.
FAQ
Q: How many clients can the R750 support?
A: The R750 Access Point can handle up to 1024 simultaneous client connections.
Q: Does it support IoT protocols?
A: Yes, it has built-in BLE and Zigbee radios, and supports additional wireless technologies via USB.
Q: What PoE standard is required?
A: It supports 802.3af/at/bt. For full functionality, 802.3bt is recommended.
Precautions
- Ensure proper PoE power budget for full feature enablement.
- Mount in a well-ventilated area within specified temperature range.
- Use compatible controllers (SmartZone, ZoneDirector, Unleashed) for management.
- Verify regional certifications before deployment.
