400g Mellanox SFP28 AOC Cable MFA1A00-E005
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFA1A00-E005 |
| Document: | MFA1A00-xxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Max Speed: | EDR | Connector Type: | QSFP28 |
| Length: | 5m | Data Rate: | 100Gb/s |
| Cable Jacket: | LSZH | Configuration: | 4x 25G-NRZ |
| Lengths (Meters): | 3, 5, 10, 15, 20, 30, 50, 100 | ||
| Highlight: | Mellanox sfp28 aoc,sfp28 aoc MFA1A00-E005,400g aoc Cable |
||
Product Description
Product Overview

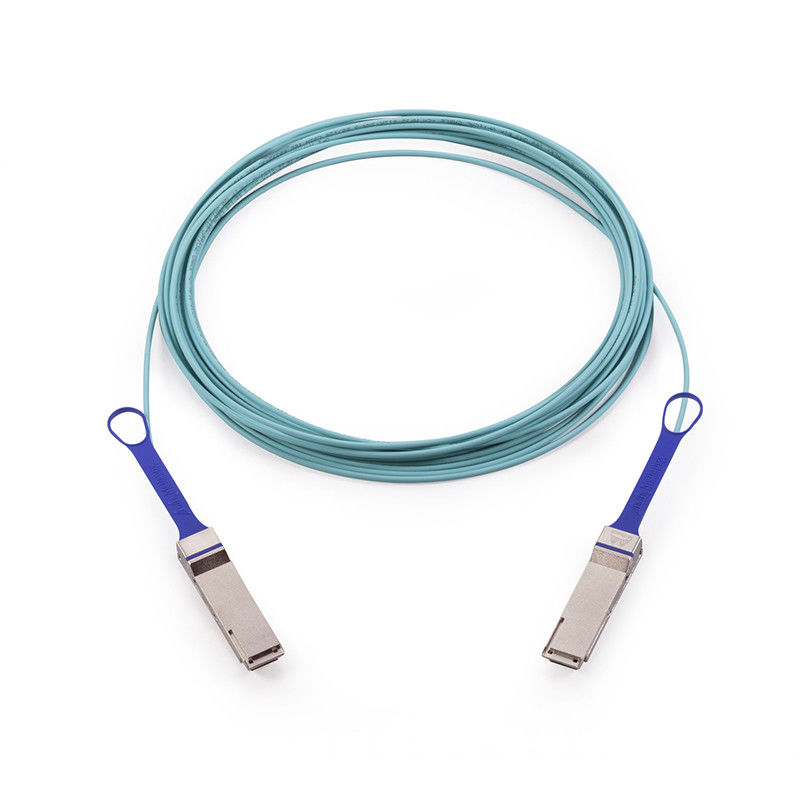

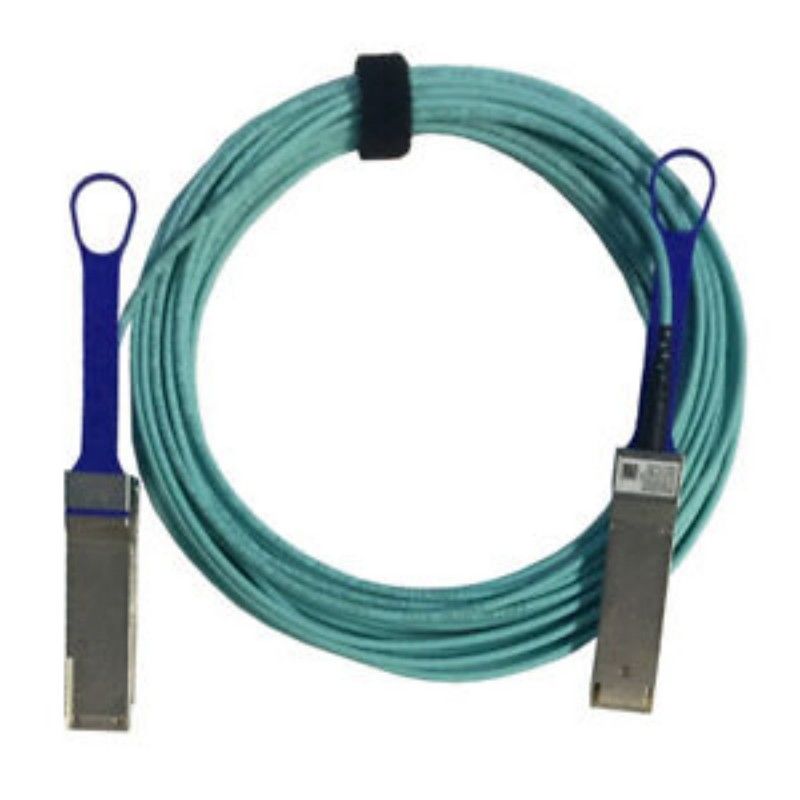

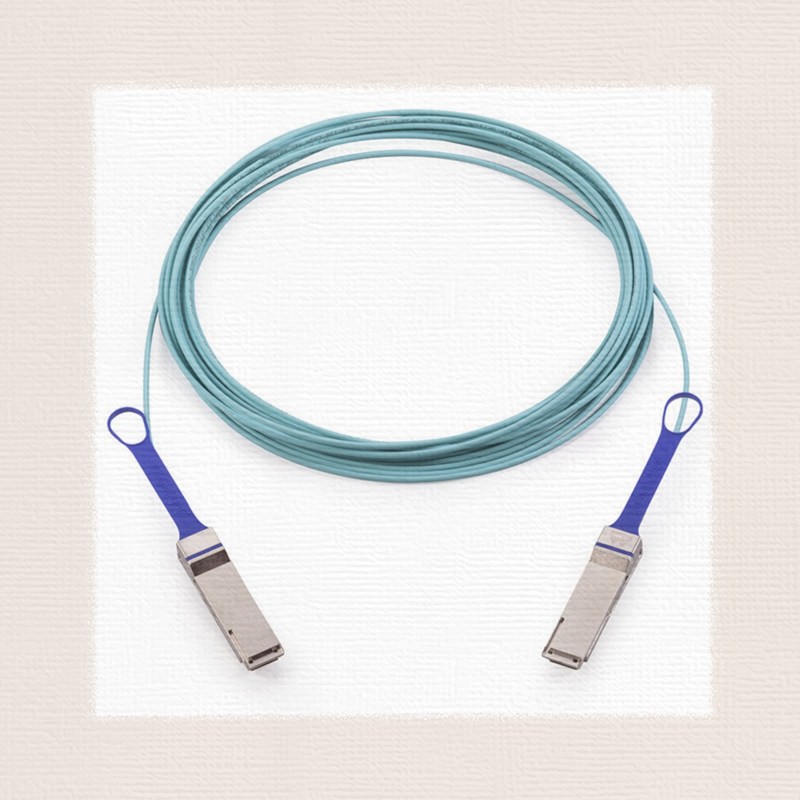

The NVIDIA® MFA1A00-E005 is a high-performance 100Gb/s QSFP28 Active Optical Cable specifically engineered for InfiniBand EDR systems. This fiber optic solution delivers exceptional bandwidth, low latency, and reliable performance for demanding data center and high-performance computing applications.
Key Features
- Designed for 100Gb/s InfiniBand EDR applications
- 5-meter length ideal for rack-to-rack connections
- Hot-pluggable QSFP28 form factor for easy installation
- Low power consumption: 2.2W typical per end with retiming
- Digital Diagnostic Monitoring (DDM) via I²C interface
- RoHS compliant and LSZH (Low Smoke Zero Halogen) rated
Technology & Standards
This Active Optical Cable incorporates VCSEL-based transceiver technology and complies with SFF-8665 and SFF-8636 standards. It features programmable input equalization, output pre-emphasis, and selectable retiming capabilities for optimal signal integrity in high-speed environments.
Working Principle
The AOC converts electrical signals into optical signals using integrated VCSEL lasers, transmitting data over multi-mode fibers. The embedded DSP enhances signal quality through retiming and equalization, ensuring exceptional performance with bit error rates below 10⁻¹⁵.
Applications
- High-performance computing (HPC) clusters
- InfiniBand EDR fabric connectivity
- Artificial intelligence and machine learning infrastructure
- Data center spine-leaf architectures
- High-frequency trading networks
- Scientific research and supercomputing facilities
Specifications
| Parameter | Specification |
|---|---|
| Product Model | MFA1A00-E005 |
| Data Rate | 100 Gb/s |
| Protocol | InfiniBand EDR |
| Interface | QSFP28 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 5m |
| Power Consumption | 2.2W (typical with retiming) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | Up to 100m |
| Operating Temperature | 0°C to 70°C |
Advantages
- Superior performance compared to passive copper solutions
- Enhanced signal integrity with programmable equalization
- Reduced weight and improved flexibility versus DAC cables
- Excellent EMI immunity for noisy environments
- Comprehensive digital diagnostics for proactive monitoring
- Backward compatibility with lower data rates
Service & Support
We provide comprehensive global support including 24/7 technical assistance, rapid shipping options, and extended warranty coverage. Our team offers integration services and custom configuration support to ensure optimal performance in your specific environment.
FAQ
Q: Is the MFA1A00-E005 compatible with Ethernet systems?
A: While primarily designed for InfiniBand EDR, this Active Optical Cable supports Ethernet protocols at compatible data rates.
Q: What is the difference between this and a passive fiber cable?
A: Unlike passive fiber cables, this Active Optical Cable includes integrated electronics for signal conditioning, enabling longer reaches and better performance.
Q: Does this cable require special cleaning procedures?
A: Standard fiber optic cleaning practices apply. Always keep connectors capped when not in use and inspect/clean before installation.
Q: Can I use this cable in a high-temperature environment?
A: The operating temperature range is 0°C to 70°C. For environments outside this range, please consult our technical team.
Precautions
- Maintain minimum bend radius of 30mm during installation
- Avoid exposure to temperatures beyond specified operating range
- Ensure proper ESD protection during handling and installation
- Verify compatibility with host system QSFP28 ports
- Follow local regulations for disposal (RoHS compliant)
