NVIDIA MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable - 10m AOC for HDR InfiniBand & 200GbE Data Centers
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S00-H010V | Name: | MFS1S00-H010V Mellanox Active Optical Cable Up To 200Gb/s IB HDR QSFP56 10m Mellanox AOC Cable |
| Keyword: | Mellanox Cable | ||
Product Description

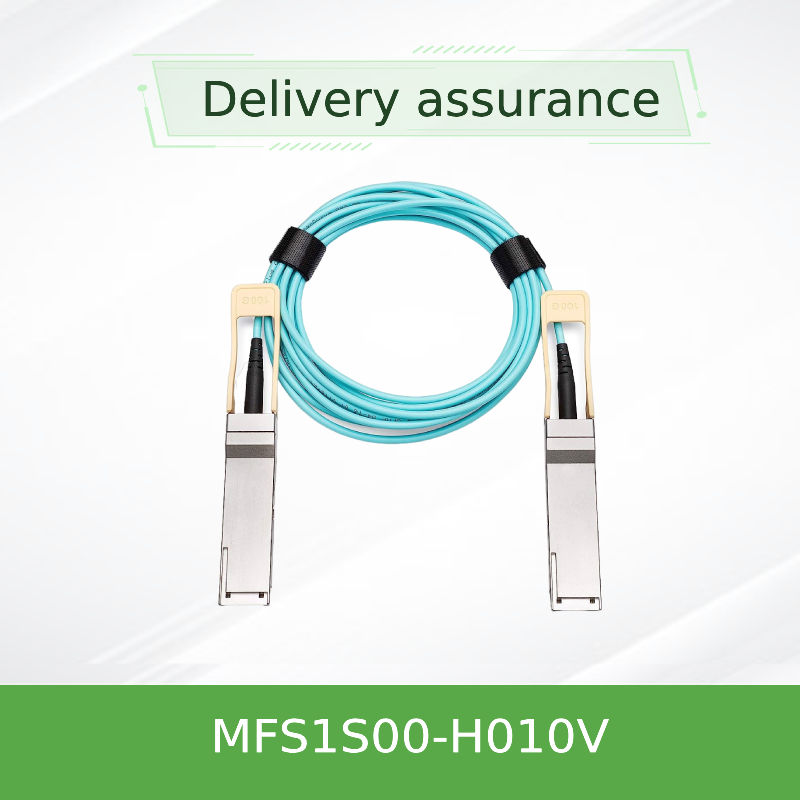

NVIDIA MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable
Product Overview
The NVIDIA MFS1S00-H010V active optical cable represents the pinnacle of high-speed data center connectivity solutions. Engineered for 10-meter reach applications, this advanced AOC delivers uncompromised 200Gb/s performance across demanding HPC, AI, and cloud infrastructure environments.
Featuring QSFP56 interfaces on both ends, this active optical cable utilizes four independent 50Gb/s optical lanes with sophisticated PAM4 modulation to achieve exceptional signal integrity over extended distances. The robust construction ensures reliable operation in dense data center configurations where superior reach and minimal latency are critical requirements.
Technical Specifications
Core Technology Features
1 Signal Integrity
- PAM4 modulation technology
- Selectable retiming per lane
- Programmable output amplitude
- Advanced pre-emphasis controls
2 Management & Monitoring
- Digital Diagnostic Monitoring
- I²C management interface
- Real-time parameter tracking
- Hot-pluggable capability
3 Reliability & Compatibility
- InfiniBand HDR certified
- 200GbE standards compliant
- Extended temperature operation
- Comprehensive safety approvals
Deployment Applications
The 10-meter reach of the MFS1S00-H010V active optical cable makes it exceptionally versatile for various high-performance computing scenarios:
▶ High-Performance Computing
Connect compute clusters with maximum bandwidth and minimal latency for scientific simulations and research applications.
▶ Artificial Intelligence
Support distributed AI training workloads across multiple servers with high-speed interconnects.
▶ Cloud Infrastructure
Enable high-density server-to-switch connectivity in cloud data centers with superior reach over copper alternatives.
▶ Storage Systems
Connect storage arrays to computing resources with reliable, high-throughput optical links.
Performance Advantages
The MFS1S00-H010V active optical cable delivers substantial benefits compared to traditional connectivity solutions. The 10-meter reach provides exceptional flexibility for rack-to-rack connections while maintaining full 200Gb/s performance. Optical technology eliminates electromagnetic interference concerns and significantly reduces cable weight, improving airflow management in dense data center environments.
This QSFP56 AOC incorporates sophisticated signal conditioning with programmable equalization and comprehensive digital diagnostics. Real-time monitoring of optical power, temperature, voltage, and bias current enables proactive maintenance and ensures optimal system reliability. The active optical design maintains signal integrity over the entire 10-meter distance, outperforming passive copper solutions at this length.
Product Selection Guide
Support & Services
Every MFS1S00-H010V active optical cable includes comprehensive manufacturer warranty coverage with responsive replacement policies. We maintain substantial inventory levels to ensure prompt delivery, typically within 2-4 business days for standard orders.
Our technical support team provides expert assistance for compatibility verification, installation guidance, and performance optimization. For enterprise deployments, we offer customized logistics solutions and integration services to ensure seamless implementation of your high-speed networking infrastructure.
Technical FAQs
What systems support the MFS1S00-H010V active optical cable?
This QSFP56 AOC is certified for NVIDIA InfiniBand HDR systems and compatible with 200 Gigabit Ethernet switches featuring QSFP56 ports, including SN3700, SN4600, and similar high-performance switching platforms.
How does the 10-meter length benefit deployment?
The 10-meter reach provides optimal flexibility for connecting adjacent racks in data center environments, eliminating the need for intermediate patch panels while maintaining full 200Gb/s performance with excellent signal integrity.
What diagnostic capabilities are available?
Comprehensive Digital Diagnostic Monitoring (DDM) provides real-time monitoring of temperature, supply voltage, optical transmit/receive power, and laser bias current with programmable alarm thresholds for proactive maintenance.
Is this AOC hot-pluggable?
Yes, the MFS1S00-H010V supports hot-plug capability according to SFF-8636 specifications, allowing installation and removal without powering down the host system when properly implemented.
Installation & Handling
Proper installation of the active optical cable requires observing standard ESD precautions and maintaining the minimum bend radius of 30mm. The cable ends should be inserted firmly into QSFP56 cages until the retention mechanism engages audibly.
The operating environment should maintain temperatures between 0°C to 70°C with relative humidity of 5% to 85% non-condensing. Ensure adequate airflow around cable connections and avoid sharp bends or excessive tension during routing to preserve optical performance and cable longevity.
