NVIDIA MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable - 5m AOC for HDR InfiniBand & 200GbE
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 5 Meters |
| Model: | MFS1S00-H005V | Name: | Mellanox Active Optical Cable Up To 200Gb/s IB HDR QSFP56 5m MFS1S00-H005V Mellanox AOC Cable |
| Keyword: | Mellanox AOC Cable | ||
Product Description

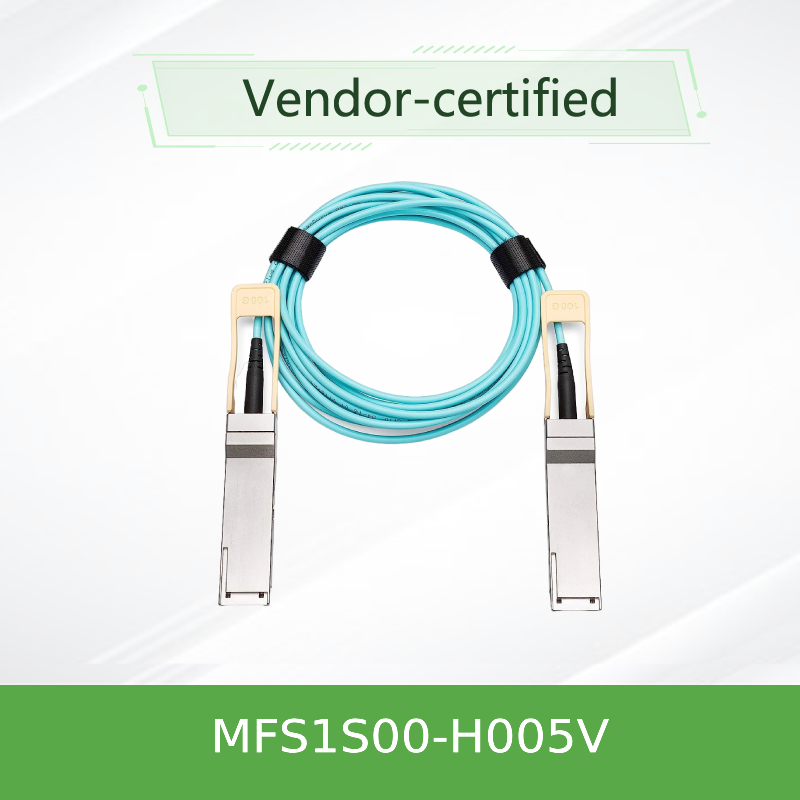

NVIDIA MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable
Premium Performance Features
- ✓ 200Gb/s total bandwidth (4×50Gb/s PAM4)
- ✓ 5-meter optimized reach for rack connectivity
- ✓ InfiniBand HDR and 200GbE compatibility
- ✓ Only 5.0W typical power consumption
- ✓ Hot-pluggable QSFP56 form factor
Product Overview
The NVIDIA MFS1S00-H005V represents a cutting-edge active optical cable solution engineered for modern high-performance computing environments. This advanced AOC delivers exceptional 200Gb/s bandwidth through QSFP56 interfaces, making it ideal for data center interconnects requiring maximum throughput and reliability.
Designed specifically for 200Gb InfiniBand HDR systems and 200 Gigabit Ethernet applications, this active optical cable provides superior performance compared to passive copper alternatives. The innovative design incorporates four independent 50Gb/s lanes using PAM4 modulation technology to achieve the full 200Gb/s capability.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | MFS1S00-H005V |
| Data Rate | 200Gb/s (4×50Gb/s PAM4) |
| Cable Length | 5 meters |
| Connector Type | QSFP56 both ends |
| Power Consumption | 5.0W typical (each end) |
| Operating Temperature | 0°C to 70°C |
| Compliance | SFF-8665, SFF-8636, RoHS |
Key Features
Performance Excellence
- 200Gb/s aggregate bandwidth
- PAM4 modulation technology
- Selectable retiming per lane
- Low bit error rate performance
Management & Control
- SFF-8636 compliant I²C interface
- Digital Diagnostic Monitoring (DDM)
- Hot-pluggable capability
- Low Power Mode support
Reliability & Compatibility
- InfiniBand HDR certified
- 200 Gigabit Ethernet support
- Comprehensive regulatory approvals
- Extended operating temperature range
Application Environments
This high-performance active optical cable is specifically designed for demanding infrastructure deployments including:
High-Performance Computing
Connect compute nodes in HPC clusters with minimal latency and maximum bandwidth.
AI/ML Infrastructure
Support distributed training workloads with high-speed interconnects between servers.
Cloud Data Centers
Enable high-density server connectivity with superior reach compared to DAC cables.
Storage Area Networks
Connect storage arrays to servers with reliable, high-throughput links.
Technical Advantages
The MFS1S00-H005V active optical cable delivers significant benefits over alternative connectivity solutions. Compared to passive direct attach copper cables, this AOC provides substantially longer reach while maintaining signal integrity. The optical technology eliminates electromagnetic interference concerns and reduces cable weight for improved airflow and easier management in dense rack configurations.
This advanced AOC incorporates sophisticated power management features including programmable output amplitude and pre-emphasis controls. The integrated digital diagnostics provide real-time monitoring of critical parameters including optical power levels, temperature, and voltage, enabling proactive maintenance and troubleshooting.
Complete Product Line
| Part Number | Description | Length |
|---|---|---|
| MFS1S00-H003V | 200Gb/s QSFP56 AOC | 3m |
| MFS1S00-H005V | 200Gb/s QSFP56 AOC | 5m |
| MFS1S00-H010V | 200Gb/s QSFP56 AOC | 10m |
| MFS1S00-H015V | 200Gb/s QSFP56 AOC | 15m |
| MFS1S00-H100V | 200Gb/s QSFP56 AOC | 100m |
Service & Support
All our active optical cable products include comprehensive manufacturer warranty with standard replacement policies. We maintain substantial inventory of the MFS1S00-H005V and other lengths to ensure rapid delivery, typically within 2-4 business days for standard orders.
Our technical support team provides expert assistance for compatibility verification, installation guidance, and troubleshooting. For large-scale deployments, we offer customized logistics solutions and integration services to ensure seamless implementation of your high-speed networking infrastructure.
Frequently Asked Questions
What systems are compatible with the MFS1S00-H005V AOC?
This active optical cable is certified for NVIDIA InfiniBand HDR systems and compatible with 200 Gigabit Ethernet switches supporting QSFP56 interfaces, including SN3700 and SN4600 series switches.
What is the maximum distance supported by this AOC?
The MFS1S00-H005V provides reliable 200Gb/s performance up to 5 meters. For longer distances, consider the MFS1S00-H010V (10m) or MFS1S00-H100V (100m) variants.
Does this cable require external power?
No, the active optical cable draws power directly from the QSFP56 host port with a typical consumption of 5.0W per end, requiring no external power supplies.
What diagnostic capabilities are available?
Comprehensive Digital Diagnostic Monitoring (DDM) provides real-time monitoring of temperature, voltage, optical power, and bias current with alarm thresholds for proactive maintenance.
Installation Guidelines
When installing the active optical cable, ensure proper ESD precautions are followed. The cable is hot-pluggable but should be inserted and removed carefully to avoid damage to the connectors. Maintain a minimum bend radius of 30mm during installation to preserve optical performance and cable longevity.
The operating environment should maintain temperatures between 0°C to 70°C with relative humidity of 5% to 85% non-condensing. Ensure adequate airflow around the cable connections to maintain optimal thermal conditions for reliable operation.
