High-Performance Extreme X435-8p-4s Network Switch for Fast Connectivity
Product Details:
| Brand Name: | Extreme |
| Model Number: | X435-8p-4s |
| Document: | X435 DS X435=1=en-US=Extrem...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | X435-8p-4s | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Extreme Xos |
| L2: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 254.00× 441.96 × 43.94mm | Trademark: | Extreme |
| Highlight: | Fast Connectivity Extreme Network Switch,X435-8p-4s Extreme Network Switch |
||
Product Description

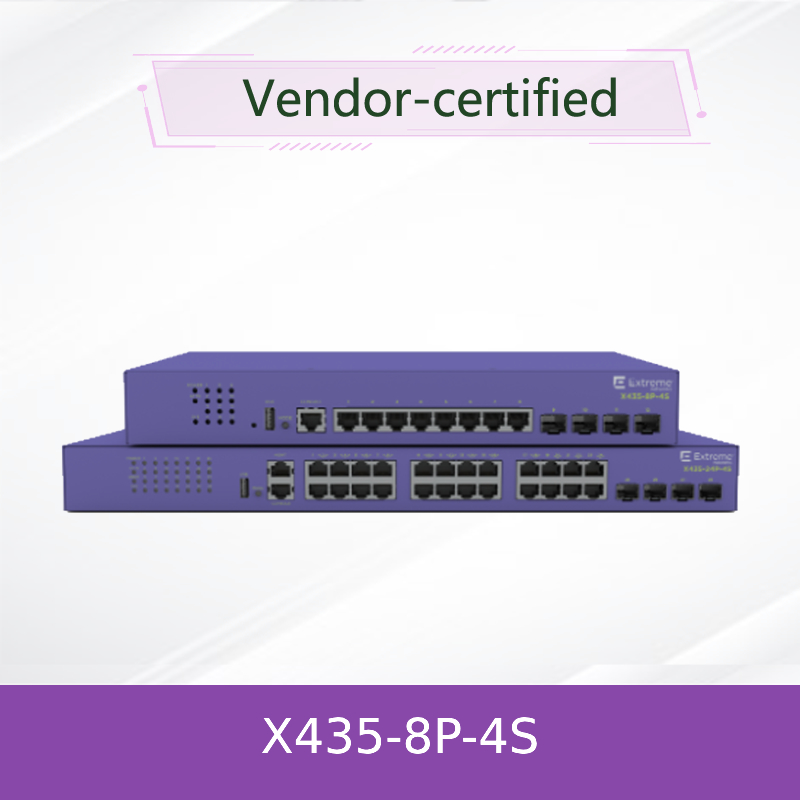

Extreme X435-8P-4S Gigabit Ethernet Switch
1. Product Overview
The Extreme X435-8P-4S is a compact, high-performance Gigabit Ethernet switch designed for distributed enterprises, branch offices, and small to medium-sized sites. It combines robust Layer 2 switching, Power over Ethernet (PoE+) support, and flexible uplink options in a fanless, silent design. Ideal for noise-sensitive environments, this switch offers reliable connectivity for IP phones, wireless access points, and IoT devices.
2. Key Features
- 8 x Gigabit Ethernet PoE+ ports (30W per port)
- 4 x 1G/2.5G SFP uplink ports (unpopulated)
- Fanless design for silent operation
- 124W total PoE budget
- Cloud management via ExtremeCloud™ IQ
- Fabric Attach for automated network provisioning
- Support for Audio Video Bridging (AVB)
3. Core Technologies
The X435-8P-4S runs on ExtremeXOS, supporting advanced features such as:
- IEEE 802.3at PoE+
- IEEE 802.3bz (2.5GBASE-X)
- IEEE 802.1 Audio Video Bridging (AVB)
- Role-based policy enforcement via ExtremeControl
- Fabric Attach for seamless integration with Extreme Fabric Connect
4. How It Works
The switch provides power and data connectivity over standard Ethernet cables. PoE+ ports deliver up to 30W per port to connected devices. Uplink SFP ports support fiber or copper transceivers for high-speed backbone connections. The device can be managed locally via CLI or web GUI, or centrally through ExtremeCloud IQ.
5. Applications
- Small and medium business networks
- Branch office connectivity
- IP surveillance systems
- Wireless access point deployment
- VoIP and multimedia streaming
6. Technical Specifications
| Specification | Value |
|---|---|
| Ports | 8 x 10/100/1000BASE-T PoE+, 4 x SFP |
| PoE Budget | 124W |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.8 Mpps |
| Power Consumption | 8W (min) - 155.2W (max) |
| Dimensions | 320.04 x 200.66 x 43.43 mm |
| Weight | 2.20 kg |
7. Advantages
- Silent operation ideal for offices and classrooms
- High PoE budget for powering multiple devices
- Future-ready with 2.5G uplink support
- Centralized cloud management reduces IT overhead
- Integrated security and policy enforcement
8. Service & Support
All Extreme switches come with a limited lifetime warranty. We offer 24/7 technical support, advanced replacement, and on-site service options. Power cords and optics are sold separately.
9. Frequently Asked Questions
Q: Does the X435-8P-4S support PoE passthrough?
A: No, the X435-8P-2T-W model supports PoE passthrough. This model provides PoE+ output only.
Q: Can I manage this switch via the cloud?
A: Yes, through ExtremeCloud IQ or ExtremeCloud IQ – Site Engine.
Q: What transceivers are compatible?
A: Refer to the Extreme Optics Compatibility Tool for a full list.
10. Precautions
- Operate within 0°C to 40°C and 10%–95% non-condensing humidity
- Ensure adequate ventilation for maximum PoE load
- Use compatible Extreme transceivers for optimal performance
- Complies with FCC, CE, RoHS, and other international standards
