48ports X460 Extreme Network AVB Switch 48T 10 100 1000BASE -T Less Latency Mbps stackable Original
Product Details:
| Brand Name: | Extreme |
| Model Number: | 16706（X460-G2-48t-10GE4-Base） |
| Document: | x460-g2-data-sheet-1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | Original | Warranty Time: | One Year |
|---|---|---|---|
| Lead Time: | According To Stock | Way: | Stackable |
| Weight: | 14.1 Lb (6.4 Kg) | MAC Rules: | Up To 512 |
| IPv4 Rules: | Up To 1280 | L2 Rules: | Up To 184 |
| Highlight: | 48ports Extreme Network AVB Switch,X460 Extreme Network AVB Switch,1000BASE extreme x460 switch |
||
Product Description

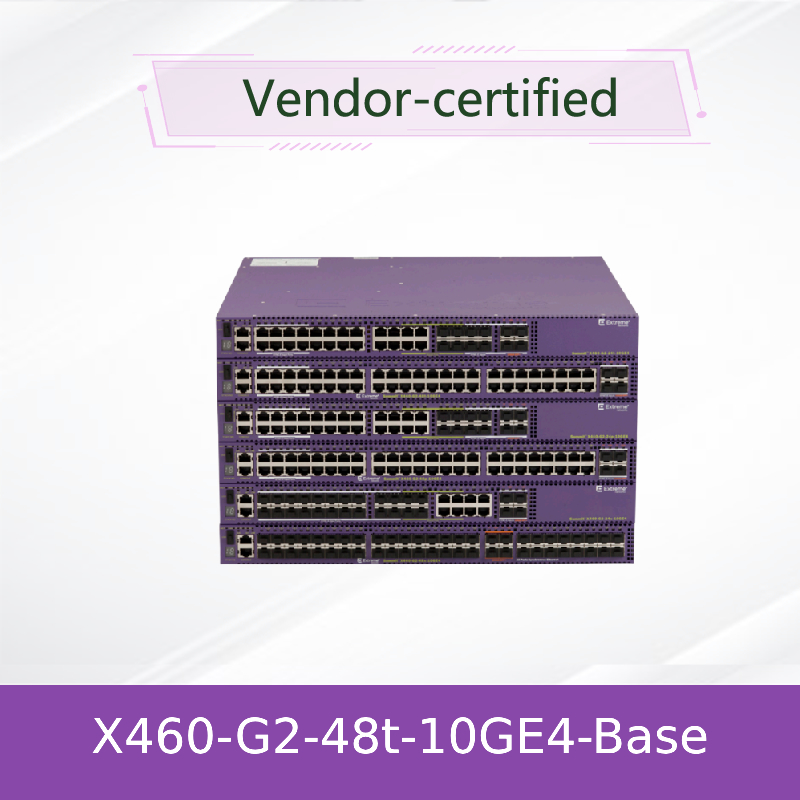

ExtremeSwitching X460-G2-48t-10GE4-Base: High-Density Copper Switch for Enterprise Deployment
The ExtremeSwitching X460-G2-48t-10GE4-Base is a high-performance, fixed-form switch engineered for enterprise access and aggregation layers. This robust switch delivers 48 copper RJ-45 ports and 4 SFP+ uplink ports, providing exceptional Layer 2 and Layer 3 capabilities powered by the resilient ExtremeXOS operating system. Perfect for organizations requiring high-density copper connectivity with 10GbE uplink capabilities.
Key Features
- 48 x 10/100/1000BASE-T RJ-45 ports for high-density copper connectivity
- 4 x 10GBASE-X SFP+ ports for high-speed uplinks and aggregation
- Support for optional VIM modules for additional 10GbE or 40GbE connectivity
- Flexible stacking with SummitStack technology up to 8 units
- Non-blocking architecture with 336 Gbps switching capacity
- Hot-swappable power supplies and fan trays for maximum reliability
- Dual airflow options (front-to-back or back-to-front)
- 250 Mpps forwarding rate for high-performance traffic handling
Technology & Protocols
This advanced switch supports comprehensive networking protocols including IPv4/IPv6 routing, Quality of Service (QoS), Access Control Lists (ACLs), IEEE 1588 PTP for precision timing, and Fabric Attach for automated network provisioning. These enterprise-grade Extreme switches can be managed via ExtremeCloud IQ, ExtremeCloud IQ – Site Engine, or traditional CLI/GUI interfaces for complete network control.
How It Works
The X460-G2-48t-10GE4-Base operates at wire speed with a non-blocking architecture, processing network traffic through advanced and the robust ExtremeXOS operating system. It supports dynamic stacking capabilities, policy-based traffic management, and redundant power and cooling systems for continuous operation in demanding enterprise environments. The switch's design ensures optimal performance for high-density copper deployments.
Applications
Ideal for enterprise access layer deployments, campus networking, educational institutions, healthcare facilities, and office environments requiring high-density copper connectivity. Perfect for connecting end-user devices, IP phones, wireless access points, and other network peripherals while providing 10GbE uplinks to the network core. These Extreme switches excel in scenarios demanding reliable copper connectivity with high uplink bandwidth.
Specifications & Selection Guide
| Model | Copper Ports | SFP+ Ports | Switching Capacity | Forwarding Rate | Power Consumption | Dimensions |
|---|---|---|---|---|---|---|
| X460-G2-48t-10GE4-Base | 48 x 1Gb RJ-45 | 4 x 10Gb SFP+ | 336 Gbps | 250 Mpps | 73W - 125W | 1.73" x 17.4" x 16.94" |
| X460-G2-24t-10GE4-Base | 24 x 1Gb RJ-45 | 4 x 10Gb SFP+ | 296 Gbps | 220.2 Mpps | 67W - 125W | 1.73" x 17.4" x 16.94" |
Advantages
- Highest copper port density in the X460-G2 series for maximum connectivity
- Superior performance with 336 Gbps switching capacity and 250 Mpps forwarding rate
- Enhanced security features with role-based policies and comprehensive ACLs
- Energy-efficient design with optimized power consumption for high-density deployments
- Future-proof architecture supporting emerging network technologies and protocols
- Simplified management through ExtremeCloud IQ ecosystem for centralized control
- Excellent investment protection with flexible expansion and stacking capabilities
Service & Support
We provide comprehensive lifetime limited warranty coverage, 24/7 technical support, and global shipping services. Our experienced team offers configuration assistance, network integration services, and on-site support when required to ensure optimal performance of your Extreme networking equipment. All Extreme switches come with professional support and warranty services, backed by our extensive inventory and technical expertise.
Frequently Asked Questions
Q: What is the power consumption range for this switch?
A: The X460-G2-48t-10GE4-Base consumes between 73W (minimum) and 125W (maximum) depending on configuration and usage patterns.
Q: Does this model support Power over Ethernet?
A: No, the 48t model does not support PoE. For Power over Ethernet functionality, please consider the X460-G2-48p series switches.
Q: What stacking options are available with this switch?
A: The switch supports SummitStack, SummitStack-V, and SummitStack-V160 with up to 160 Gbps stacking bandwidth.
Q: Can I use 1GbE transceivers in the SFP+ ports?
A: Yes, the SFP+ ports support both 1GbE and 10GbE transceivers for flexible connectivity options.
Q: What management options are available?
A: The switch can be managed through ExtremeCloud IQ, ExtremeCloud IQ – Site Engine, or traditional CLI/GUI interfaces.
Important Precautions
- Always use compatible Extreme transceivers; consult the Extreme Optics Compatibility Tool for verified options
- Operating environment: 0°C to 50°C (32°F to 122°F) with 10% to 95% non-condensing humidity
- Compliant with RoHS, WEEE, FCC, CE, and other international regulatory standards
- Use only approved Extreme power supplies and cooling modules to maintain warranty coverage
- Ensure adequate ventilation and proper airflow management in high-density installations
- Plan for appropriate clearance around the switch for optimal thermal performance
- Follow proper rack mounting procedures to ensure stability and safety
