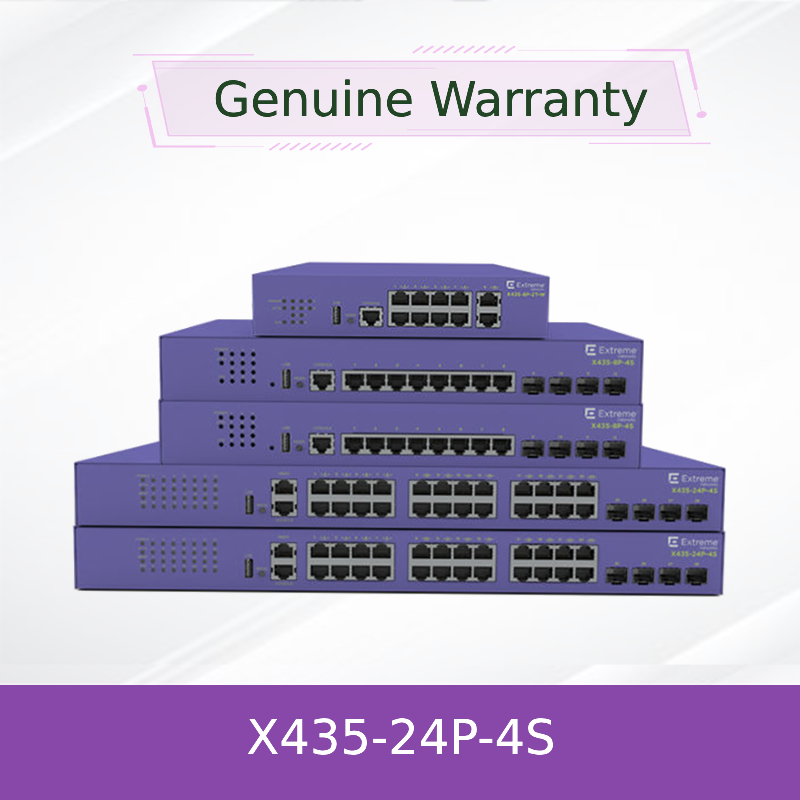

X435-24P-4S Premium Gigabit Ethernet Switch for Enhanced Network Reliability Extreme Xos
Product Details:
| Brand Name: | Extreme |
| Model Number: | X435-24P-4S |
| Document: | X435 DS X435=1=en-US=Extrem...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | X435-24P-4S | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Extreme Xos |
| L2: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 254.00× 441.96 × 43.94mm | Trademark: | Extreme |
| Highlight: | X435-24P-4S Network Switch,4S Gigabit Ethernet Switch,X435-24P-4S Gigabit Ethernet Switch |
||
Product Description
X435-24P-4S: High-Performance PoE+ Switch for Distributed Enterprises
The Extreme Networks X435-24P-4S is a 24-port Gigabit Ethernet switch designed for branch offices, small sites, and edge deployments. It delivers robust Layer 2 switching, Power over Ethernet Plus (PoE+), and advanced security features. With support for cloud management via ExtremeCloud™ IQ, this switch offers scalable and secure connectivity for modern network environments.
Key Features
- 24 x Gigabit Ethernet PoE+ ports (30W per port)
- 4 x 1G/2.5G SFP uplink slots
- PoE budget of 370W for connected devices
- Cloud management with ExtremeCloud IQ
- Fabric Attach for automated network integration
- Fanless design for silent operation (8-port models only)
Core Technologies
The X435 Series runs on ExtremeXOS®, supporting advanced features like role-based policy enforcement, Audio Video Bridging (AVB), and Fabric Attach. It complies with IEEE 802.3at (PoE+), 802.3bt (PoE Type 3/4), and 802.3az (Energy Efficient Ethernet).
How It Works
The switch provides power and data connectivity over Ethernet cables, eliminating the need for separate power supplies for connected devices such as IP phones, cameras, and wireless access points. It supports perpetual PoE to maintain power during reboots and Fast PoE for rapid device startup.
Applications
Ideal for retail branches, schools, healthcare facilities, and small offices. Supports IoT deployments, VoIP systems, and HD video surveillance.
Specifications
| Attribute | Value |
|---|---|
| Ports | 24 x 10/100/1000BASE-T PoE+, 4 x SFP |
| PoE Budget | 370W |
| Switching Capacity | 68 Gbps |
| Forwarding Rate | 50.6 Mpps |
| Power Consumption | 12.9W (min) / 449.8W (max) |
| Dimensions | 441.96 x 254.00 x 43.94 mm |
| Weight | 3.48 kg |
Advantages
- High PoE budget for powering multiple devices
- Integrated cloud management reduces operational overhead
- Future-ready with 2.5G uplink support
- Robust security and QoS features
Service & Support
All Extreme switches come with a limited lifetime warranty. We offer 24/7 technical support, advanced replacement, and onsite services. Power cords and optics are sold separately.
FAQ
Q: Does the X435-24P-4S support PoE passthrough?
A: No, only the X435-8P-2T-W model supports PoE passthrough.
Q: Can I manage this switch via the cloud?
A: Yes, via ExtremeCloud IQ or ExtremeCloud IQ – Site Engine.
Q: What is the maximum PoE power per port?
A: 30W per port for PoE+ devices.
Precautions
- Operate within 0°C to 45°C and 10%–95% non-condensing humidity
- Ensure proper ventilation for PoE-heavy deployments
- Use compatible Extreme transceivers for SFP ports
- Follow local EMC and safety regulations
