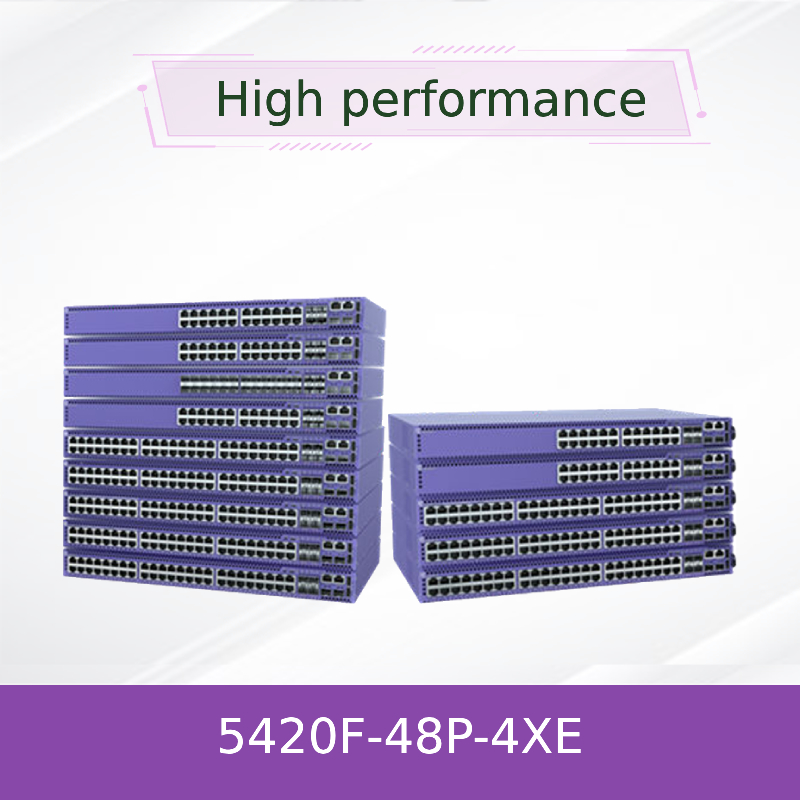

Reliable Advanced Extreme 5420f-48p-4xe Switch for Network Efficiency
Product Details:
| Brand Name: | Extreme |
| Model Number: | 5420F-48P-4XE |
| Document: | 5420-series-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 5420F-48P-4XE | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Extreme Xos |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | 2 X 2000W 200-240VAC Poe 3549W |
| Transport Package: | Carton | Carton: | 287× 442 × 43.2mm |
| Highlight: | Extreme Network Switch 5420f-48p-4xe,Extreme Network Switch 5420f |
||
Product Description
ExtremeSwitching 5520 Series: Universal Edge and Aggregation Platform
The ExtremeSwitching 5520 Series represents a high-performance, feature-rich family of fixed-form switches engineered for enterprise edge and aggregation deployments. These switches offer a versatile hardware platform that supports multiple operating systems—ExtremeXOS or VOSS—enabling advanced policy enforcement, end-to-end segmentation, and scalable fabric services. With flexible port configurations including Gigabit, Multi-Gigabit, and 10 Gigabit Ethernet, as well as high-power PoE options and scalable uplinks, the 5520 Series is built to support next-generation digital enterprises and IoT deployments.
Key Features
- Dual-persona OS support: Choose between ExtremeXOS or VOSS
- High-density PoE: Up to 90W per port (IEEE 802.3bt)
- Modular uplink options: 10Gb and 25Gb via VIM slots
- Secure connectivity: MACsec encryption on access and uplink ports
- Cloud or on-prem management: ExtremeCloud IQ or Site Engine
Core Technology
The 5520 Series leverages advanced Ethernet fabric technologies including Fabric Connect (VOSS) and IP Fabric (ExtremeXOS) for automated, secure network segmentation. It supports standards such as IEEE 802.3bt for PoE, IEEE 802.1AE for MACsec, and offers high-speed stacking capabilities up to 160Gbps with EXOS.
How It Works
The switch operates as a unified hardware platform that can be provisioned with either ExtremeXOS or VOSS. Upon boot, it connects to ExtremeCloud IQ for zero-touch deployment and persona selection. It supports Layer 2/3 forwarding, PoE power management, fabric automation, and secure encrypted links via MACsec.
Typical Applications
- Enterprise campus edge and wiring closet deployments
- Aggregation layer for mid-sized networks
- High-density wireless backhaul with PoE+ for APs
- IoT and digital signage infrastructure
- Secure government or healthcare networks with MACsec
Specifications Overview
| Model | Ports | PoE Support | Uplink Slot | Stacking | Switching Capacity |
|---|---|---|---|---|---|
| 5520-24T | 24x 1G Copper | No | 1 VIM | Yes (EXOS) | 648 Gbps |
| 5520-24W | 24x 1G Copper | 90W PoE | 1 VIM | Yes (EXOS) | 648 Gbps |
| 5520-48T | 48x 1G Copper | No | 1 VIM | Yes (EXOS) | 696 Gbps |
| 5520-48W | 48x 1G Copper | 90W PoE | 1 VIM | Yes (EXOS) | 696 Gbps |
| 5520-12MW-36W | 12x Multi-Gig + 36x 1G | 90W PoE | 1 VIM | Yes (EXOS) | 792 Gbps |
| 5520-24X | 24x 10G SFP+ | No | 1 VIM | Yes (EXOS) | 1080 Gbps |
Advantages & Differentiators
- Universal hardware reduces operational complexity and future-proofs deployments
- High PoE budget supports next-gen devices like PTZ cameras and smart lighting
- Flexible uplink options with MACsec for encrypted spine-leaf connections
- Integrated cloud management with ExtremeCloud IQ Pilot included
- Non-blocking architecture ensures wire-speed performance
Service & Support
All Extreme 5520 Series switches come with a 1-year ExtremeCloud IQ Pilot subscription and are covered under Extreme’s Limited Lifetime Warranty. We offer 24/7 technical support, advanced replacement, and global logistics. Our team provides pre-sales consultation, integration support, and post-sales service to ensure seamless deployment.
Frequently Asked Questions
Q: Can I change the OS after deployment?
A: Yes, the OS persona can be changed later via CLI or cloud reprovisioning.
Q: What is the maximum PoE budget?
A: Up to 2160W with dual 2000W PSUs at 200–240VAC.
Q: Is stacking supported in VOSS?
A: No, stacking is only available when running ExtremeXOS.
Q: Does the base license include MACsec?
A: No, MACsec requires a separate license.
Q: What management options are available?
A: ExtremeCloud IQ (cloud), Site Engine (on-prem), CLI, or web GUI.
Important Notes
- Use same-type PSUs for optimal PoE redundancy
- Stacking cables and optics are not included
- MACsec and Premier licenses are optional
- Operating temperature: 0°C to 50°C
- Complies with FCC, CE, RoHS, and REACH standards
