Extreme X435-8t-4s Series High-Performance Network Switch for Seamless Connectivity
Product Details:
| Brand Name: | Extreme |
| Model Number: | X435-8T-4S |
| Document: | X435 DS X435=1=en-US=Extrem...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | X435-8T-4S | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Extreme Xos |
| L2: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 200.66× 320.04 × 43.43mm | Trademark: | Extreme |
| Highlight: | 4s Series High-Performance Network Switch,8t-4s Series Network Switch,High Performance Network Switch |
||
Product Description

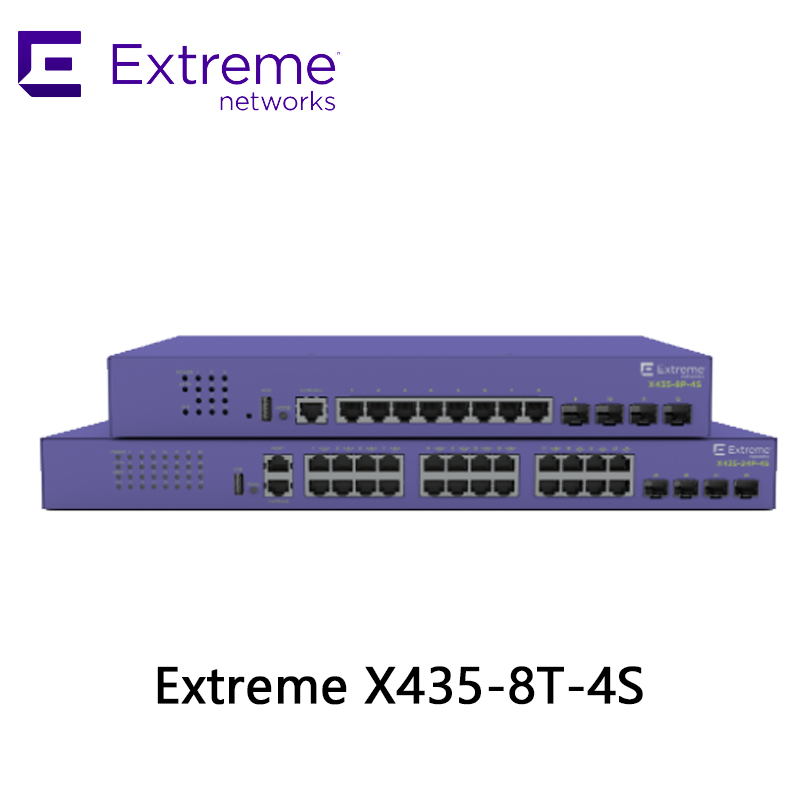

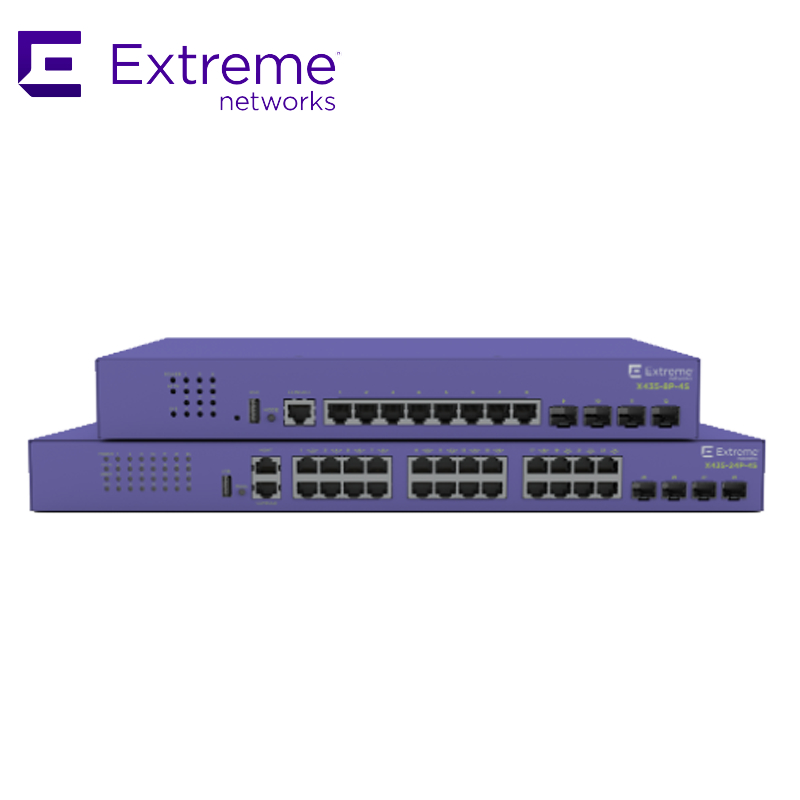

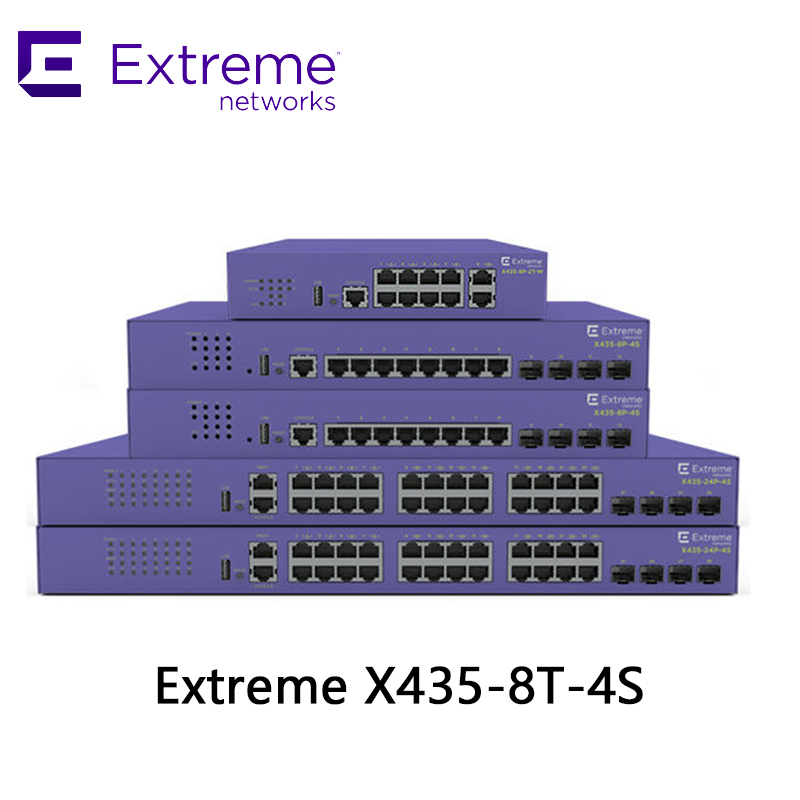

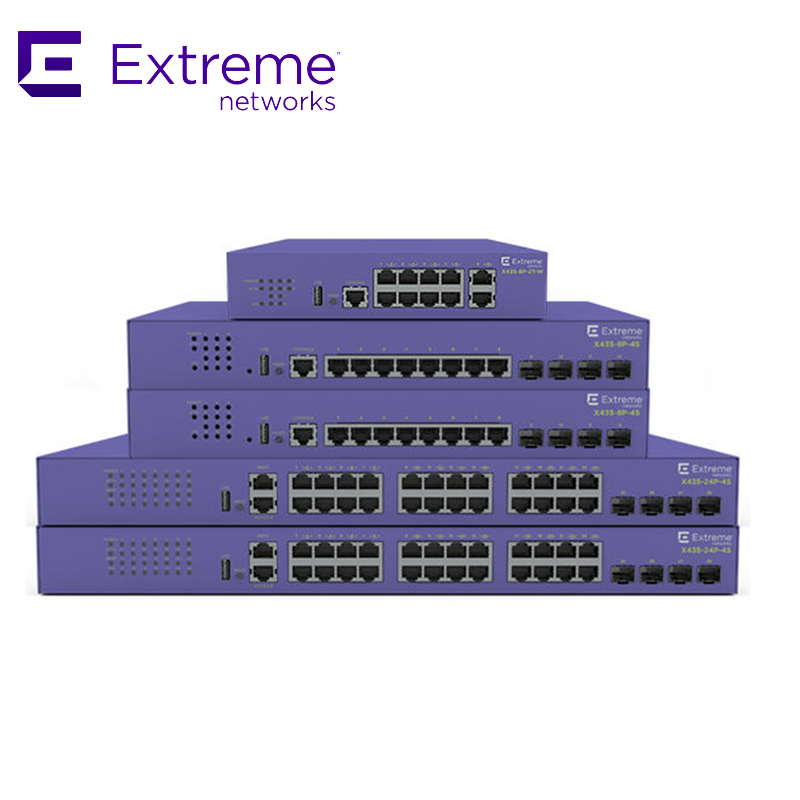

Extreme Networks X435-8T-4S 8-Port Gigabit Ethernet Switch
Product Overview
The Extreme Networks X435-8T-4S is a compact, fanless, and fully managed Gigabit Ethernet switch designed for enterprise edge deployments, branch offices, and small to medium-sized business networks. Part of the versatile X435 Series, this switch delivers robust Layer 2 switching capabilities, advanced security features, and flexible uplink options in a silent, desktop or wall-mountable form factor.
Key Features
- 8 x 10/100/1000BASE-T RJ45 ports with auto-sensing
- 4 x 1G/2.5G SFP uplink ports (unpopulated)
- Fanless design for silent operation
- Cloud management via ExtremeCloud™ IQ and ExtremeCloud IQ – Site Engine
- Layer 2 switching with static routing and advanced security
- ExtremeXOS® operating system for enterprise-grade reliability
- USB port for external storage and configuration backup
Technology & Standards
The X435-8T-4S supports a range of industry standards including IEEE 802.3ab (1000BASE-T), IEEE 802.3az (Energy Efficient Ethernet), and IEEE 802.3bz (2.5GBASE-X). It is also compatible with Extreme Fabric Connect for automated and secure network fabric deployment.
How It Works
The switch operates at the network edge, connecting end-user devices such as computers, printers, and IP phones. It uses ExtremeXOS to manage traffic, apply security policies, and ensure high availability. The SFP uplinks provide high-speed connectivity to aggregation or core switches, supporting fiber or copper transceivers.
Applications
- Branch office and remote site networking
- Small and medium business infrastructure
- Classroom or office edge connectivity
- VoIP and video surveillance deployments
- Edge access layer in enterprise fabric networks
Specifications
| Specification | Value |
|---|---|
| Total Ports | 8 x 10/100/1000BASE-T, 4 x SFP |
| Uplink Speed | 1G/2.5G |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.8 Mpps |
| Power Consumption | 6.5W (min) / 16.7W (max) |
| Dimensions (HxWxD) | 43.43 x 320.04 x 200.66 mm |
| Weight | 1.87 kg |
| Operating Temperature | 0°C to 40°C |
Advantages
- Silent operation ideal for office and educational environments
- Future-ready with 2.5G uplink support
- Centralized cloud management reduces operational overhead
- Enterprise-grade OS with advanced features at an edge price point
- Robust security and policy enforcement capabilities
Service & Support
All Extreme Networks switches come with a limited lifetime warranty. Our in-house technical support team provides 24/7 assistance, advanced replacement, and on-site service options. We also offer professional services for deployment and integration.
FAQ
Q: Does the X435-8T-4S support PoE?
A: No, this model does not support Power over Ethernet. For PoE capabilities, consider the X435-8P-4S or X435-8P-2T-W.
Q: Can I manage this switch via the cloud?
A: Yes, the X435 Series is fully compatible with ExtremeCloud IQ for centralized cloud management.
Q: What transceivers are supported?
A: Refer to the Extreme Optics Compatibility Tool for a full list of qualified transceivers.
Q: Is the switch rack-mountable?
A: Yes, an optional rack mount kit (XN-2P-RMKT-002) is available.
Precautions
- Ensure adequate ventilation around the switch to prevent overheating.
- Use only qualified Extreme Networks transceivers for guaranteed performance.
- Comply with local electrical and safety regulations during installation.
- Verify firmware compatibility before upgrading.
