New Original Extreme Wing Nx-5500-100r0-Wr Integrated Services Platform
Product Details:
| Brand Name: | Extreme |
| Model Number: | NX-5500-100R0-WR |
| Document: | Extreme_NX_5500_Datasheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | NX-5500-100R0-WR | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 100-240V |
| Antenna Gain: | No | Color: | Black |
| Trademark: | Extreme | Specification: | 430 Mm W X 44.2 Mm H X 320.7 Mm |
| Highlight: | Original Wing Nx-5500-100r0-Wr,Services Platform Wing Nx-5500,Extreme Wing Nx-5500-100r0-Wr |
||
Product Description

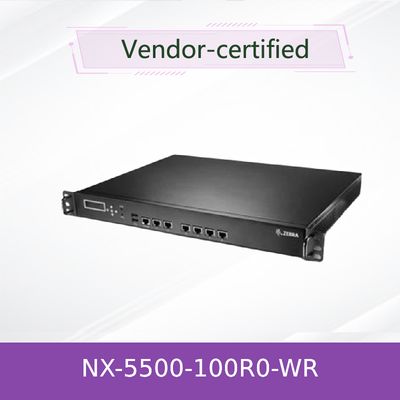

ExtremeWireless™ WING NX 5500 Integrated Services Platform
The ExtremeWireless WING NX 5500 Integrated Services Platform is a next-generation wireless solution designed for mid-sized enterprises. It supports up to 512 access points, delivers 6 Gbps throughput, and integrates advanced security and management features—all managed through a single pane of glass.
Key Features:
- Supports up to 512 access points with zero-touch deployment
- 6 Gbps data throughput with integrated security services
- Centralized management via WiNG 5 OS
- Built-in firewall, VPN, RADIUS, and WIPS
- Role-based policy enforcement for BYOD environments
Core Technology
The NX 5500 leverages the WiNG 5 operating system, which enables distributed intelligence across the network. This allows each device to make independent routing decisions, eliminating the need for a centralized controller and reducing latency. The platform uses Smart RF technology to dynamically adapt to interference and optimize wireless performance.
How It Works
The Integrated Services Platform operates as a unified system where each access point and network component collaborates intelligently. Traffic is routed based on real-time conditions, not predefined paths. The system continuously monitors RF environments, automatically adjusting channels and power levels to maintain optimal performance.
Applications
Ideal for mid-sized enterprises, campuses, healthcare facilities, and retail environments. Supports high-density wireless deployments, guest access networks, and secure remote access via IPsec VPN.
Specifications
| Attribute | Value |
|---|---|
| Model | NX-5500-100R0-WR |
| Dimensions | 1U, 16.93" W x 1.74" H x 12.63" D |
| Weight | 4.5 kg |
| Memory | 4 GB RAM |
| Storage | 32 GB SSD |
| Power Consumption | 30W |
| Max AP Support | 512 |
| Throughput | 6 Gbps |
| Interfaces | 6x Gigabit Ethernet, 2x USB, RS-232 |
Why Choose the NX 5500?
- Eliminates centralized controller bottlenecks
- Integrates multiple network services into one platform
- Reduces total cost of ownership with all-in-one design
- Provides scalable licensing for growing businesses
Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty on all hardware. Our team provides pre-sales consultation and post-sales integration services to ensure seamless deployment.
Frequently Asked Questions
Q: How many access points can the NX 5500 support?
A: It supports up to 512 APs in local bridging mode and 256 in extended VLAN mode.
Q: Does the platform include a firewall?
A: Yes, it includes a built-in wired/wireless firewall and IPSec VPN.
Q: Is the WiNG 5 OS included?
A: Yes, the system comes pre-loaded with the WiNG 5 operating system.
Important Notes
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Requires standard 100-240V AC power supply
- Compatible with Extreme Networks NX/VX series controllers
- Firmware updates are required for latest security features
