H3c Rt-Msr3640-X1 Series Router Products Carton Forwarding Performance 10g SFP+
Product Details:
| Brand Name: | H3C |
| Model Number: | RT-MSR3640-X1 |
| Document: | H3C MSR3600-XS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RT-MSR3640-X1 | Transmission Rate: | 10g SFP+ |
|---|---|---|---|
| Ports: | ≦8 | Exchange Capacity: | Forwarding Performance |
| Packet Forwarding Rate: | Whole Machine Exchange Capacity | Transport Package: | Carton |
| Specification: | 440× 480× 88.1mm | Trademark: | H3C |
| Origin: | China | ||
| Highlight: | 10g SFP+ H3C Switch,H3C Rt-Msr3640-X1 Router |
||
Product Description

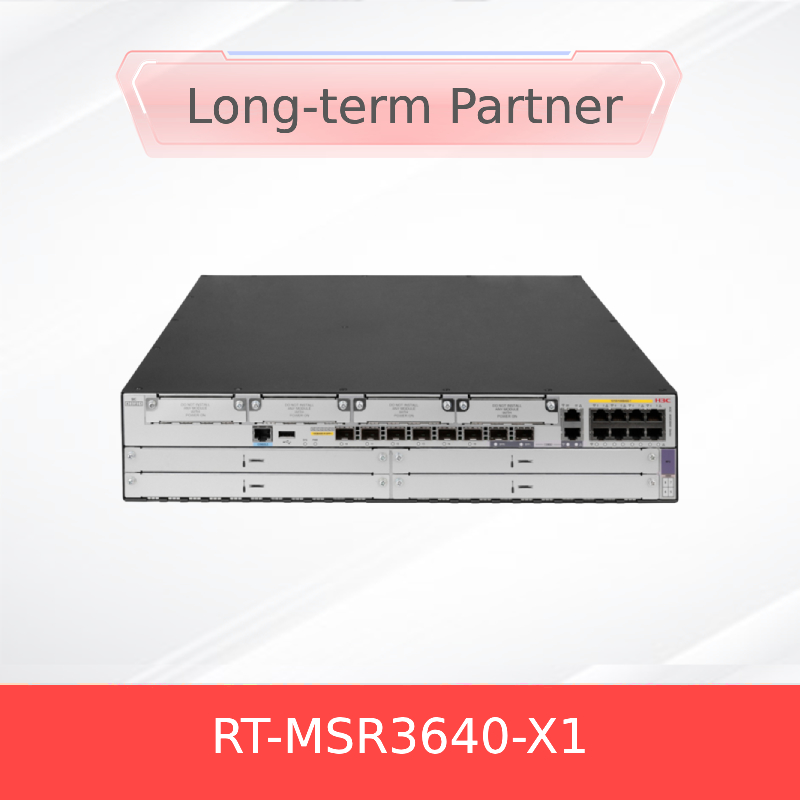

H3C MSR3640-X1 10G Multi-Service Router
1. Product Overview
The H3C MSR3640-X1 represents the pinnacle of networking innovation, delivering exceptional 30Gbps firewall throughput in a compact 2U form factor. This advanced multi-service gateway integrates cutting-edge routing, switching, security, and wireless capabilities, making it ideal for demanding enterprise environments. With support for 4,000 IPSec VPN tunnels and dual power supply redundancy, the MSR3640-X1 ensures uninterrupted operations for critical business applications. This H3C router features multiple 10G interfaces and comprehensive security protocols, providing a future-proof foundation for modern network infrastructure.
2. Key Features
- 30Gbps firewall throughput with 10Gbps IPSec VPN performance
- Support for up to 4,000 concurrent IPSec VPN tunnels
- Multiple 10G Ethernet interfaces for high-speed connectivity
- Advanced security suite including stateful firewall and DDoS protection
- Dual redundant power supply support (AC/DC)
- 4GB Flash memory for enhanced storage capacity
- Hardware encryption acceleration for improved performance
3. Technology & Standards
The MSR3640-X1 complies with IEEE 802.3, 802.1Q, and 802.1x standards, supporting comprehensive IPv4/IPv6 dual-stack implementation. It incorporates advanced routing protocols including OSPF, BGP, and RIPng. Security technologies feature IPSec, SSL VPN, and stateful inspection firewall with deep packet inspection capabilities. The H3C router utilizes intelligent traffic engineering with ECMP/UCMP support and implements MPLS VPN technologies for sophisticated network segmentation.
4. Working Principle
This H3C router processes network traffic through a multi-core architecture that separates control and data planes for optimal performance. Hardware-accelerated encryption engines handle VPN processing while dedicated security processors perform deep packet inspection. The system employs intelligent traffic classification algorithms that prioritize critical applications and automatically allocate bandwidth resources based on predefined policies. Redundant components maintain continuous operation during failover events.
5. Applications
The H3C MSR3640-X1 is engineered for:
- Enterprise data center edge routing and security
- Large-scale VPN hub for distributed organizations
- High-performance internet gateway with advanced threat protection
- Network aggregation for campus and branch deployments
- Service provider edge routing with MPLS support
6. Specifications
| Specification | Value |
|---|---|
| Firewall Throughput | 30 Gbps |
| IPSec VPN Throughput | 10 Gbps |
| IPSec VPN Tunnels | 4,000 |
| Fixed Interfaces | 3×10GE optical + 2×GE optical + 1×GE(Combo) + 8×GE electrical |
| Flash Memory | 4 GB |
| Power Consumption | 300W (max) |
| Dimensions (W×D×H) | 440 × 480 × 88.1 mm |
| Rack Height | 2U |
7. Advantages
- Industry-leading 30Gbps throughput for bandwidth-intensive applications
- Massive VPN capacity supports large-scale remote access deployments
- Advanced security features including stateful firewall and intrusion prevention
- Flexible interface options with multiple 10G and Gigabit Ethernet ports
- Redundant power supply design ensures maximum uptime
- Future-proof architecture with support for emerging technologies
8. Service & Support
We provide comprehensive support including 3-year hardware warranty, 24/7 technical assistance, and advanced replacement service. Our team offers remote configuration assistance and regular firmware updates. Custom integration services available for large-scale deployments.
9. FAQ
Q: What is the maximum number of concurrent VPN connections supported?
A: The H3C MSR3640-X1 supports up to 4,000 concurrent IPSec VPN tunnels.
Q: Does this model support redundant power supplies?
A: Yes, it supports dual redundant power supplies (AC or DC) for high availability.
Q: Can this router function as a wireless controller?
A: Yes, the MSR3640-X1 can manage H3C wireless access points when licensed appropriately.
Q: What encryption algorithms are supported for VPN connections?
A: It supports AES (128/192/256-bit), 3DES, and SM series encryption algorithms.
10. Precautions
- Ensure adequate ventilation with minimum 5cm clearance on all sides
- Operate within specified temperature range (0°C to 45°C)
- Verify software compatibility before upgrading firmware
- Use proper ESD precautions when installing interface modules
- Follow local electrical safety regulations during installation
