High-Efficiency Lspm2150A 150W Asset-Manageable AC Power Module for Networking
Product Details:
| Brand Name: | H3C |
| Model Number: | LSPM2150A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | LSPM2150A | Transmission Rate: | 150W |
|---|---|---|---|
| Ports: | ≦8 | Maximum Output Current: | 12.5A |
| Transport Package: | Carton | Specification: | 101.6× 41.1× 177mm |
| Trademark: | H3C | Origin: | China |
| Highlight: | Networking AC Power Module,Lspm2150A 150W AC Power Module,Asset-Manageable AC Power Module |
||
Product Description

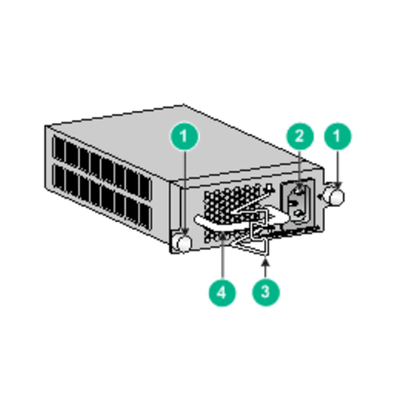

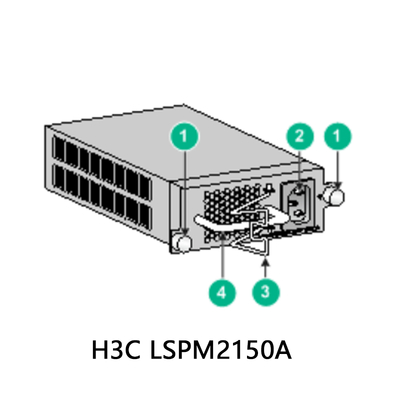

LSPM2150A is an AC power module with AC input and DC output. PSR150-D1 is a DC power module with DC input and DC output. Both the AC power module and the DC power module can convert the input voltage into the 12V voltage required by the powered device, and its maximum output power can reach 150W.LSPM2150A

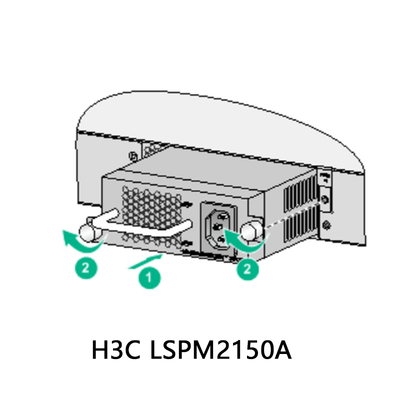

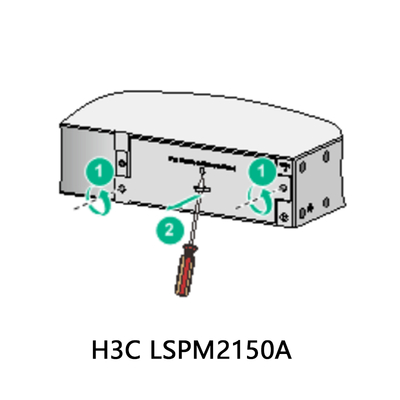

The installation and removal of the power supply includes: the installation and removal of the power module, and the installation and removal of the power cord. The power supply installation, power-off and power-off disassembly process should be carried out in strict accordance with the sequence of Figure 2-1 and Figure 2-2, otherwise the equipment may be damaged or personal injury may be caused.

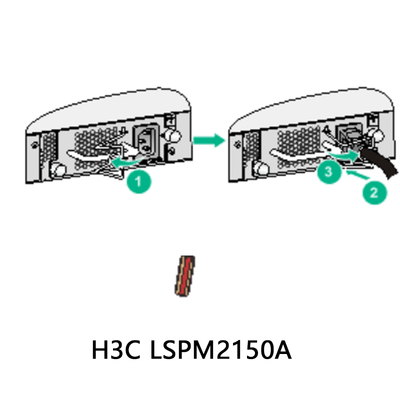

Figure 2-1 Powering on a power supply.LSPM2150A
To avoid damage to the power module and equipment and personal injury, follow these precautions:
- When installing and removing the power module, please pay attention to wearing an anti-static wrist and ensure that the anti-static wrist is in good contact with the skin.LSPM2150A·
- Before installing the power module, please confirm whether the working voltage of the external power supply system is consistent with the standard voltage of the power supply module, and whether the output voltage of the power module is consistent with the voltage required by the powered equipment, so as to avoid damage to the power supply module and the powered equipment.
- Do not touch any exposed wires and terminal parts to avoid causing harm to the human body.LSPM2150A
- Please do not place the power supply module in a wet place, and do not allow liquids to enter the power supply module.
- In order to prevent damage to the power module, please do not open the power module shell at will, and hand over the power module to maintenance personnel for maintenance when the internal circuits or components of the power module fail.LSPM2150A
| project | specification |
|---|---|
| Enter the rated voltage range | PSR150-A1: 100V~240V AC;50/60Hz 240V DC PSR150-D1:-48V~-60V DC |
| Enter the maximum voltage range | PSR150-A1: 90V~264V AC;47/63Hz 192V - 290V DC PSR150-D1:-36V~-72V DC |
| Output voltage | 12V |
| Maximum output current | 12.5A |
| Maximum output power | 150W |
| Dimensions (W*H*D) | 101.6*41.1*177mm |
| Operating temperature | -5°C~55°C |
| Storage temperature | -40°C~70°C |
Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.
