H3c Ca-70A12 High Performance DC Power Supply for Devices Carton 2.5A
Product Details:
| Brand Name: | H3C |
| Model Number: | CA-70A12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CA-70A12 | Ports: | ≦8 |
|---|---|---|---|
| Maximum Input Current: | 2.5A | Transport Package: | Carton |
| Specification: | 41.1 × 101.6 × 177 Mm | Trademark: | H3C |
| Origin: | China | ||
| Highlight: | 70A12 High Performance DC Power Supply,H3c DC Power Supply,70A12 DC Power Supply |
||
Product Description

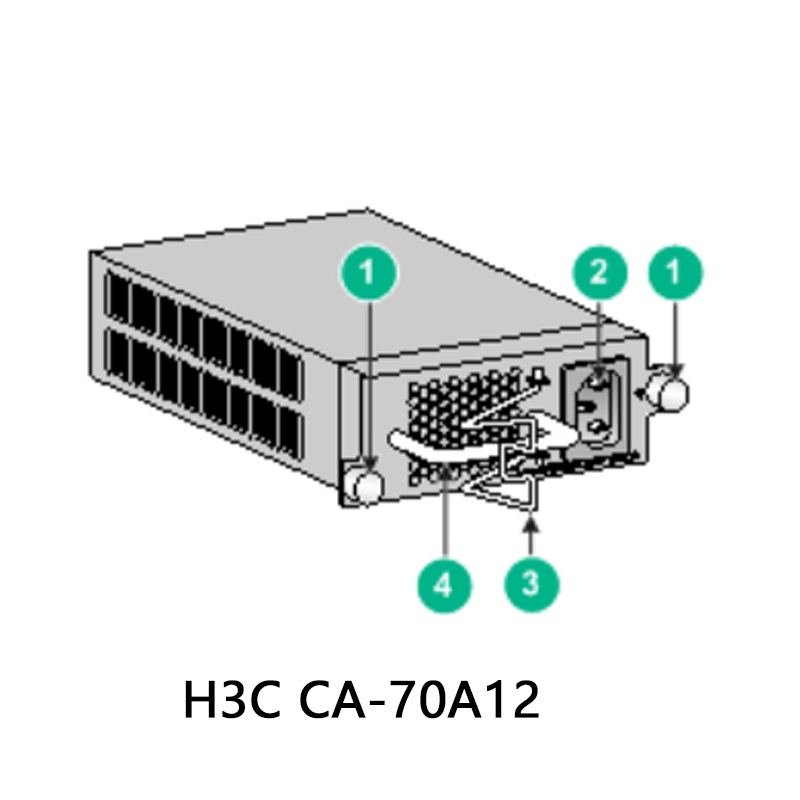

CA-70A12 is a DC-output power supply that supports both AC input and DC input. It provides a maximum output of 70 W.CA-70A12
Provide overvoltage, short-circuit, overcurrent, and overtemperature protections.

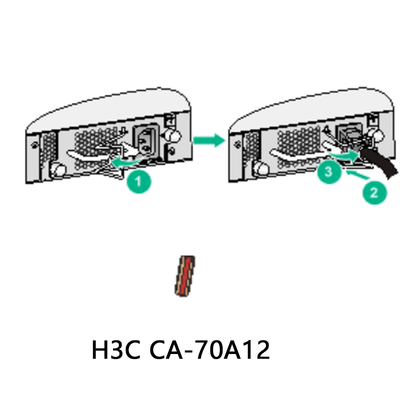

The power supply cannot resume normal operation automatically after it is locked. Use the followingprocedure to resume the power supply operation after it is locked
Disconnect the power cord from the external power supply system.
Disconnect the power cord from the power supply and then reconnect it to the power supply.
Connect the power cord to the external power supply system.CA-70A12

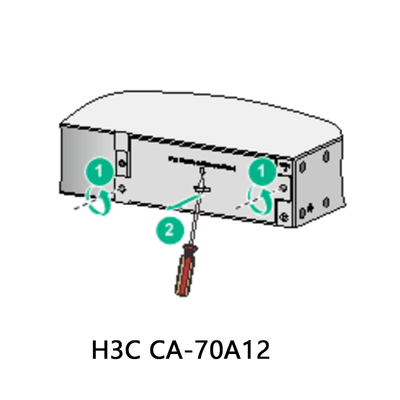

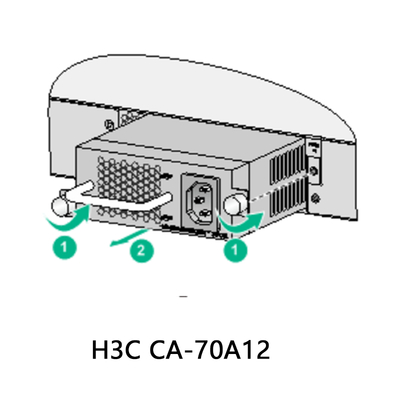

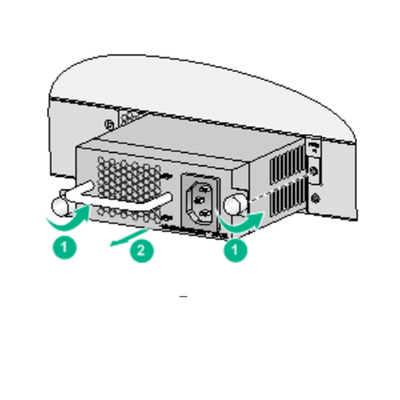

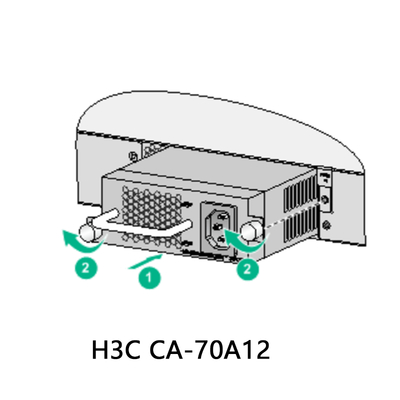

When installing and removing the power supply, wear an ESD wrist strap and make sure the wrist
strap makes good skin contact.CA-70A12
Before installing the power supply, make sure the operating voltage of the external power supply
system is as required by the power supply, and t
he output voltage of the power supply is as
required by the powered device.CA-70A12
To avoid damages, do not open the power supply. When an internal circuit or component of the
power supply fails,
contact H3C Support.CA-70A12
| Item | Specifications |
|---|---|
| AC Input | |
| Rated voltage range | 100 VAC to 240 VAC @ 50 Hz or 60 Hz |
| Max voltage range | 90 VAC to 290 VAC @ 47 Hz to 63 Hz |
| Max input current | 2.5 A |
| HVDC Input | |
| Rated voltage range | 240 VDC |
| Max voltage range | 180 VDC to 320 VDC |
| Max input current | 1 A |
| Output | |
| Output voltage | 12 V |
| Max output current | 5.83 A |
| Max output power | 70 W |
| Dimensions | 41.1 × 101.6 × 177 mm (1.62 × 4 × 6.97 in) |
| Weight | 0.6 kg (1.32 lb) |
| Operating temperature | –10°C to 55°C (14°F to 131°F) |
| Relative humidity | 5% to 95%, noncondensing (5%~95%) |
| Storage temperature | –40°C to 70°C (–40°F to +158°F) |
