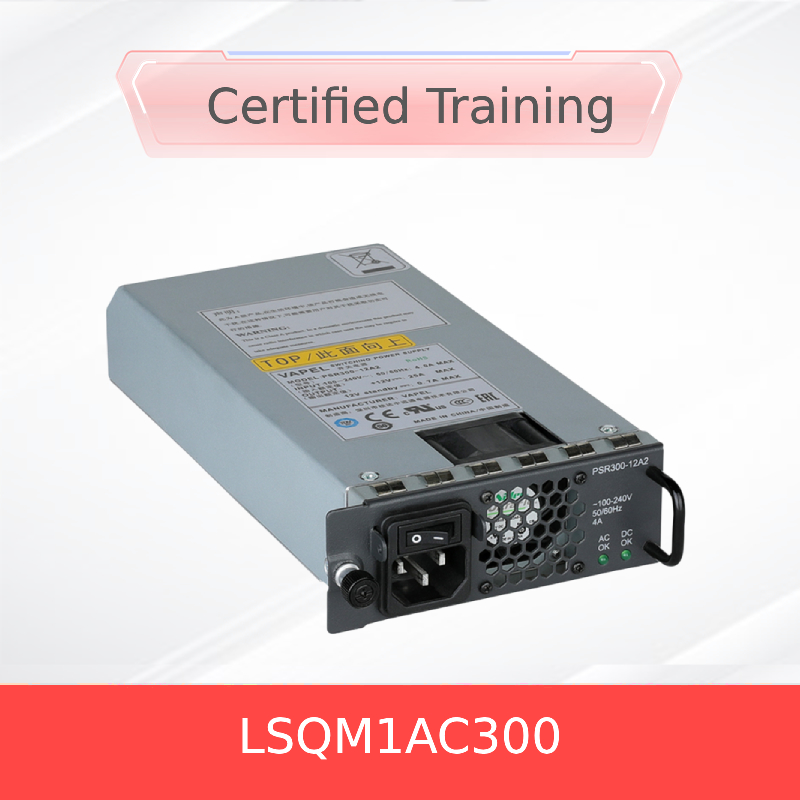

H3c Lsqm1AC300 Core Mainnet Modular Switch AC Power Module Carton 12.5A
Product Details:
| Brand Name: | H3C |
| Model Number: | LSQM1AC300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | LSQM1AC300 | Transmission Rate: | 150W |
|---|---|---|---|
| Ports: | ≦8 | Maximum Output Current: | 12.5A |
| Transport Package: | Carton | Specification: | 150mm× 25mm× 40mm |
| Trademark: | H3C | Origin: | China |
| Highlight: | H3c Modular Switch Power Module,Carton H3c Modular Switch,12.5A H3c Modular Switch |
||
Product Description
LSQM1AC300 is an AC power module with AC input and DC output. Both the AC power module and the DC power module can convert the input voltage into the 12V voltage required by the powered device, and its maximum output power can reach 150W.LSQM1AC300
The installation and removal of the power supply includes: the installation and removal of the power module, and the installation and removal of the power cord. The power supply installation, power-off and power-off disassembly process should be carried out in strict accordance with the sequence of Figure 2-1 and Figure 2-2, otherwise the equipment may be damaged or personal injury may be caused.LSQM1AC300
Figure 2-1 Powering on a power supply.LSQM1AC300
To avoid damage to the power module and equipment and personal injury, follow these precautions:
- When installing and removing the power module, please pay attention to wearing an anti-static wrist and ensure that the anti-static wrist is in good contact with the skin.LSQM1AC300
- Before installing the power module, please confirm whether the working voltage of the external power supply system is consistent with the standard voltage of the power supply module, and whether the output voltage of the power module is consistent with the voltage required by the powered equipment, so as to avoid damage to the power supply module and the powered equipment.LSQM1AC300
- Do not touch any exposed wires and terminal parts to avoid causing harm to the human body.LSQM1AC300
- Please do not place the power supply module in a wet place, and do not allow liquids to enter the power supply module.
- In order to prevent damage to the power module, please do not open the power module shell at will, and hand over the power module to maintenance personnel for maintenance when the internal circuits or components of the power module fail.
| Light | State | Meaning | Analysis |
|---|---|---|---|
| Power module status indicator | green | The power module is working fine | - |
| red | The power module is working abnormally | The possible causes of failure are as follows: ·Power module alarm (the power module alarms when the input is under-voltage, output short circuit, output over-current, output over-voltage, temperature is too high, etc., and enters the protection state) ·The power module fan is faulty |
|
| extinguish | The input of the power module is abnormal | The possible causes of failure are as follows: ·The power module is faulty ·The power cord is faulty ·The external power supply system is de-energized ·The power module switch is not turned on |
