Reliable H3c Network Switch Optical Module SFP-Ge-Sx-mm850-D Network Management Switch
Product Details:
| Brand Name: | H3C |
| Model Number: | SFP-GE-SX-MM850-D |
| Document: | SFP-GE SFP-XG.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | SFP-Ge-Sx-mm850-D | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Weight (G): | 47 |
| Center Wavelength (Nm): | 850 | Transport Package: | Carton |
| Specification: | 56.5x13.7x8.5mm | Trademark: | H3C |
| Origin: | China | ||
| Highlight: | H3c Network Management Switch Optical Module,SFP-Ge-Sx-mm850-D Network Management Switch |
||
Product Description

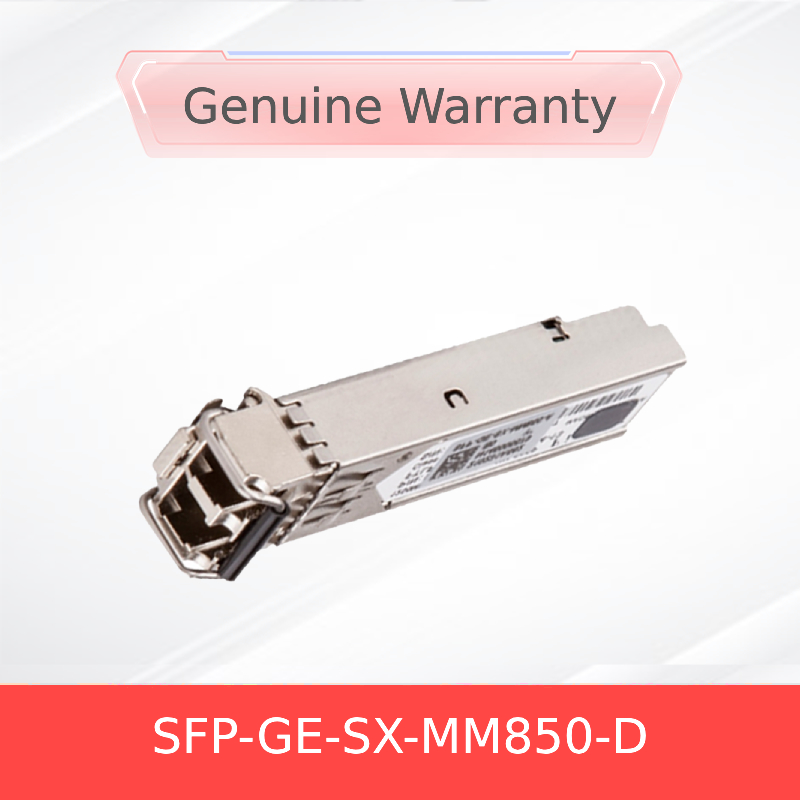

H3C SFP-GE-SX-MM850-D 1000BASE-SX SFP Transceiver Module
The H3C SFP-GE-SX-MM850-D is a high-performance, hot-pluggable 1000BASE-SX SFP (Small Form-factor Pluggable) optical transceiver designed for short-range multi-mode fiber applications. Operating at an 850nm wavelength, this H3C SFP module delivers reliable Gigabit Ethernet connectivity for enterprise networks, data centers, and campus environments. It features an LC connector interface and supports a maximum transmission distance of up to 550 meters on 50/125μm multi-mode fiber, making it an ideal solution for high-speed data links.
Key Features
- Hot-pluggable SFP form factor for flexible deployment and easy maintenance
- Supports 1000Mbps data rate for Gigabit Ethernet applications
- 850nm wavelength optimized for multi-mode fiber systems
- LC duplex connector for secure and stable optical connection
- Low power consumption and high reliability for continuous operation
- Fully compliant with MSA (Multi-Source Agreement) standards for interoperability
Technology & Standards
The SFP-GE-SX-MM850-D complies with IEEE 802.3z 1000BASE-SX standards. It uses VCSEL (Vertical Cavity Surface Emitting Laser) technology for efficient optical transmission over multi-mode fiber. The module also supports Digital Diagnostic Monitoring (DDM) functions for real-time monitoring of temperature, voltage, TX bias, TX power, and RX power.
Working Principle
The transceiver converts electrical signals into optical signals using an 850nm VCSEL laser diode. The light is transmitted through multi-mode fiber to the receiving end, where a photodiode converts the optical signal back into an electrical signal. This bidirectional communication enables high-speed data transfer with low latency and high signal integrity.
Applications
The H3C SFP module is widely used in:
- Data center interconnects
- Enterprise backbone networks
- Campus network aggregation
- Gigabit Ethernet switches and routers
- Fiber Channel and SAN storage networks
Specifications
| Parameter | Value |
|---|---|
| Model | SFP-GE-SX-MM850-D |
| Interface | LC Duplex |
| Wavelength | 850nm |
| Max Distance | 550m (50/125μm), 275m (62.5/125μm) |
| Data Rate | 1.25Gbps |
| Fiber Type | Multi-mode |
| Compatibility | H3C S7500E, S7500X series switches |
| Operating Temperature | 0°C to 70°C |
Advantages
- High compatibility with H3C and industry-standard SFP ports
- Robust construction for reliable performance in demanding environments
- DDM support for network monitoring and troubleshooting
- Cost-effective solution for short-range Gigabit Ethernet links
Service & Support
We offer a lifetime warranty on all our H3C SFP transceivers. Our technical team provides 24/7 support for installation, configuration, and troubleshooting. Bulk orders are welcome with competitive pricing and fast global shipping.
FAQ
Q: What is the maximum distance supported by the SFP-GE-SX-MM850-D?
A: It supports up to 550 meters on 50/125μm multi-mode fiber and 275 meters on 62.5/125μm fiber.
Q: Is this transceiver compatible with non-H3C switches?
A: While designed for H3C devices, it is MSA-compliant and may work with other brands, though compatibility is not guaranteed.
Q: Does it support DDM/DOM functionality?
A: Yes, it supports Digital Diagnostic Monitoring for real-time performance tracking.
Precautions
- Ensure the fiber type matches the module's specifications (multi-mode only).
- Avoid bending the fiber cable beyond the minimum bend radius.
- Keep the LC connector clean to prevent signal loss.
- Verify compatibility with your switch model before purchase.
