Reliable H3c Lscm2mpus06as8 Control Switching Module for Efficient Operations
Product Details:
| Brand Name: | H3C |
| Model Number: | LSCM2MPUS06AS8 |
| Document: | LSCM2MPUS06AS8.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | LSCM2MPUS06AS8 | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Flash: | 4GB |
| Transport Package: | Carton | Specification: | 45mm× 399mm× 355mm |
| Trademark: | H3C | Origin: | China |
| Highlight: | Lscm2mpus06as8 Control Switching Module,H3c Control Switching Module,Efficient Operations Control Switching Module |
||
Product Description

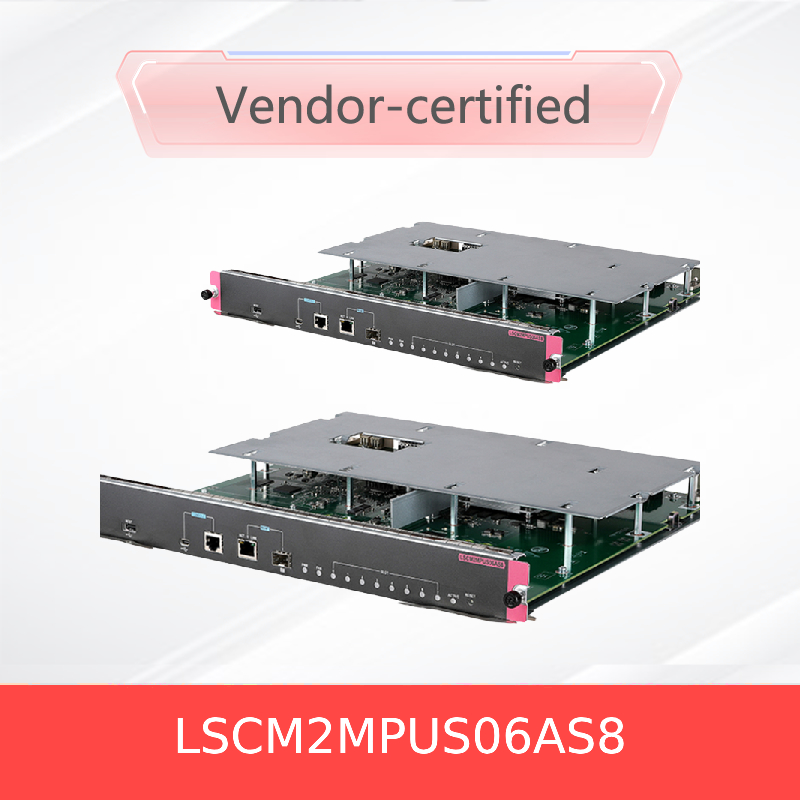

The upper right corner of the front panel is marked with silkscreen LSCM2MPUS06AS8 to identify this board.
| Attributes | Specifications |
|---|---|
| Flash | 4GB |
| BootROM | 4MB*2 |
| NVRAM | 1MB |
| SDRAM | 2GB |
| Size(H*W*D) | 45mm*399mm*355mm |
| Board Power Consumption | 23W～31W |
| Interface Type and Number |
|
| Interface Transfer Rate |
|
| Optional cables and maximum transmission distances |
|
| Compatible host types | S7006X |
Note:
- The USB port does not support the use of a USB extension cable.
- For information about compatible optical modules and cables, refer to the "H3C S7000X Series Switch Board and Optical Module Compatibility Table."
- For information about compatible host software versions, refer to the software release notes.
The 10/100/1000M electrical interface uses an RJ-45 connector.
Figure 1 RJ-45 Connector Diagram
| Pin Number | 10Base-T/100Base-TX/1000Base-T | |
|---|---|---|
| Signal | Function | |
| 1 | MX_0+ | Transmitting/Receiving Data |
| 2 | MX_0- | Transmitting/Receiving Data |
| 3 | MX_1+ | Transmitting/Receiving Data |
| 4 | MX_2+ | Transmitting/Receiving Data |
| 5 | MX_2- | Transmitting/Receiving Data |
| 6 | MX_1- | Transmitting/Receiving Data |
| 7 | MX_3+ | Transmitting/Receiving Data |
| 8 | MX_3- | Transmitting/Receiving Data |
