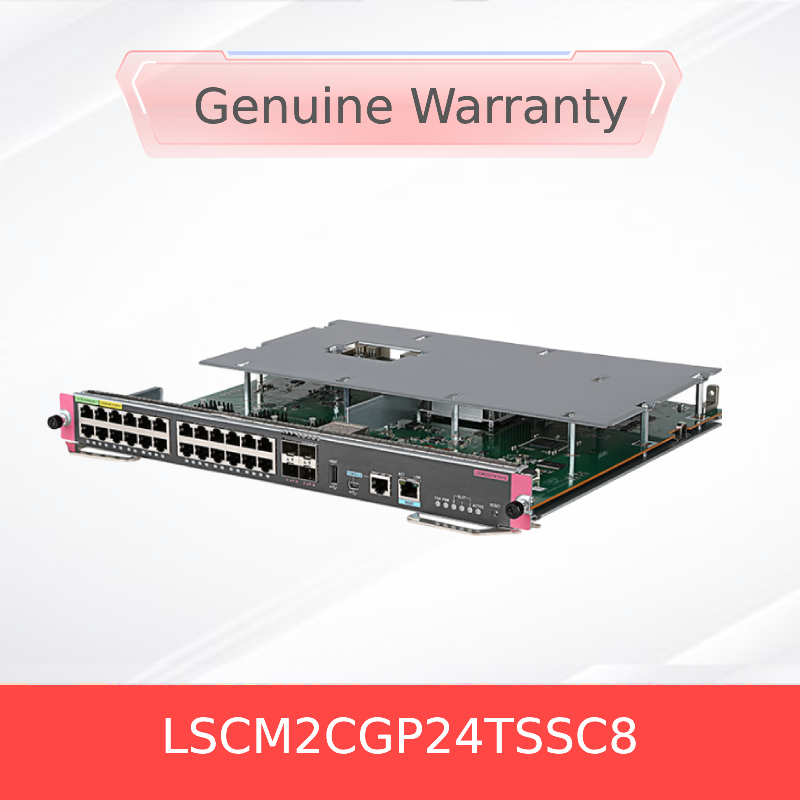

H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module
Product Details:
| Brand Name: | H3C |
| Model Number: | LSCM2CGP24TSSC8 |
| Document: | LSCM2CGP24TSSC8.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | LSCM2CGP24TSSC8 | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Flash: | 4GB |
| Transport Package: | Carton | Specification: | 40mm× 399mm× 355mm |
| Trademark: | H3C | Origin: | China |
| Highlight: | Optical Interface Routing Engine Module,H3c Routing Engine Module |
||
Product Description
LSCM2CGP24TSSC8 is not just a simple service board, but a main control board module that integrates both the switching engine and the routing engine. Such modules usually have the following characteristics:
- More powerful functions: In addition to providing ports, they may also take on core tasks such as system control and route computation.
- Critical placement: Typically installed in the main control slot of a switch.
- Higher price: Due to their core functionality, they are usually more expensive than ordinary service boards.
Notes before purchase and use:
- Compatibility is key: Before purchasing, be sure to confirm that the module is compatible with your existing or planned H3C switch models (e.g., S7500X-M-G, S7503X-M-G series), and check the required minimum software version.
- Optical modules sold separately: SFP and SFP+ optical interfaces require corresponding optical modules or cables to be purchased separately before they can be used.
| attribute | specification |
|---|---|
| Flash | 4GB |
| BootROM | 4MB*2 |
| NVRAM | 1MB |
| SDRAM | 2GB |
| Veneer size (H×W×D). | 40mm×399mm×355mm |
| Power consumption of the board | 23W~45W |
| The type and number of interfaces | ·1consoleport ·1xUSB Consoleport ·1network management port ·1mainUSBport ·4SFP+interfaces ·24SFPinterfaces |
| Interface transmission rate | ·Consoleport:9600bps~115200bps(default9600bps) ·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default ·Network management port:10/100/1000Mbps, half-duplex/full-duplex ·SFP+interface:10Gbit/s,1 Gbit/s,100 Mbit/s ·SFPinterface:1 Gbit/sand100 Mbit/s |
| Cable and maximum transmission distance are available | ·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m ·USB Consoleinterface:USB-ABcable, transmission distance ≤10m ·Network management port:Category5ormore twisted pair cable, transmission distance5m ·SFP+interface:SFP+optical transceiver andSFPoptical transceiver ·SFPinterface: SFPoptical module |
| The host type that the board is compatible with | S7003X |
